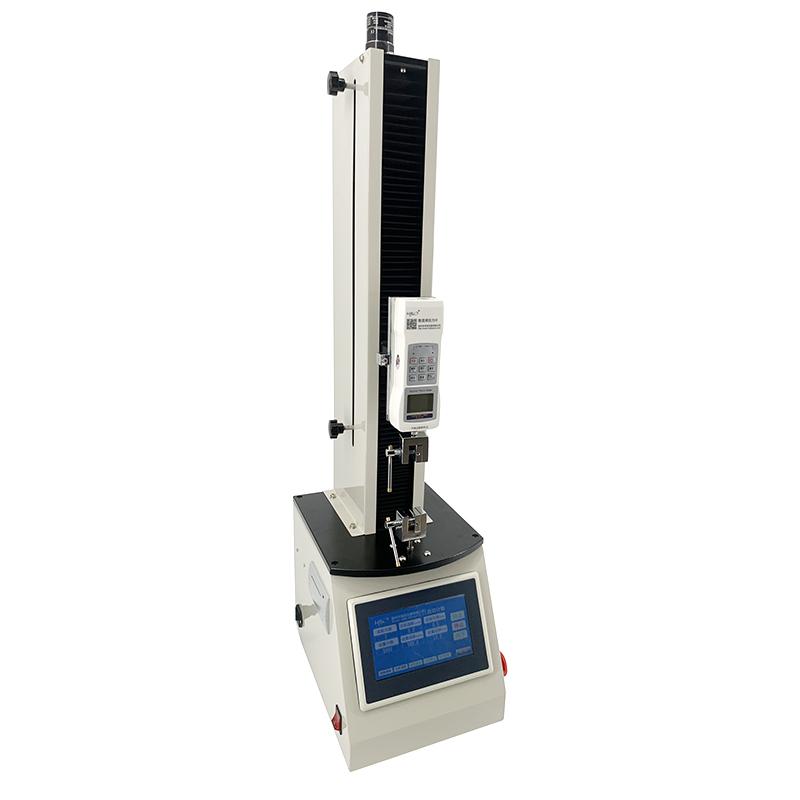

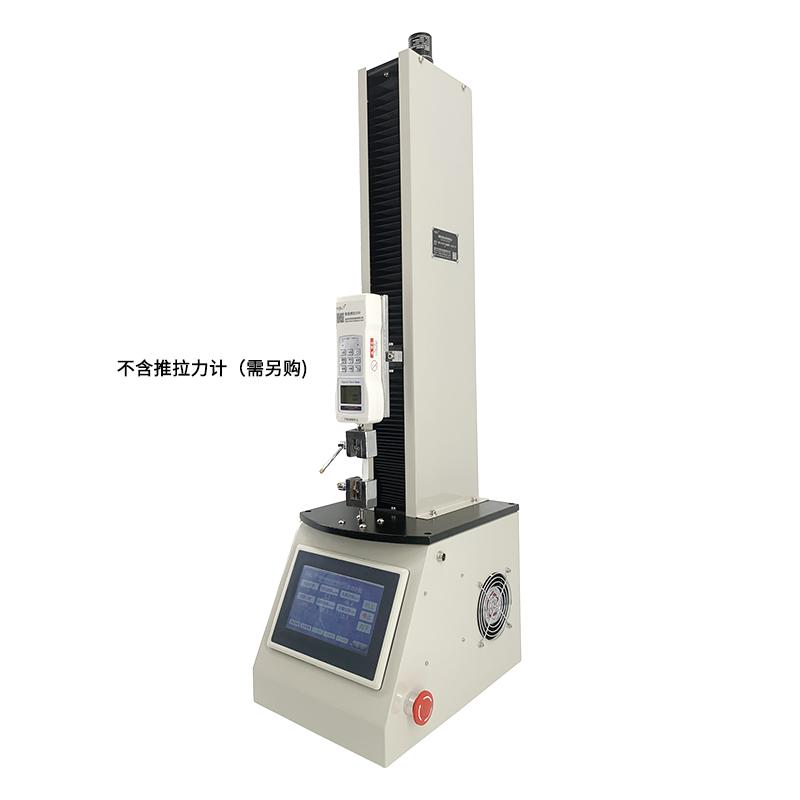

HBO HDE-500S Intelligent Single Column Vertical Force Gauge Machine, Load 500N

HDE-500S

Intelligent single column vertical machine

Load 500N, travel 320mm, 7 inch touch screen, four test modes, equipped with limit protection, emergency shutdown, leakage protection device, Test speed can be set, standard micro printer.

Introduction:

This series of motors is equipped with a push-pull force gauge and can be combined into a small tensile and compression testing machine. The product adopts stepper motor, high-precision encoder, precision ball screw pair, stable mechanical performance and high precision, and has a series of functions such as speed, displacement, time control, manual (joging), automatic, automatic control of movement times, and time delay in place. It is widely used in tensile and compressive load, plugging and unplugging force, destructiveness, fatigue and other tests in rubber and plastics, light industrial textiles, building doors and windows, composite materials, wires and cables, auto parts, power machinery, scientific research institutions and other industries.

Features

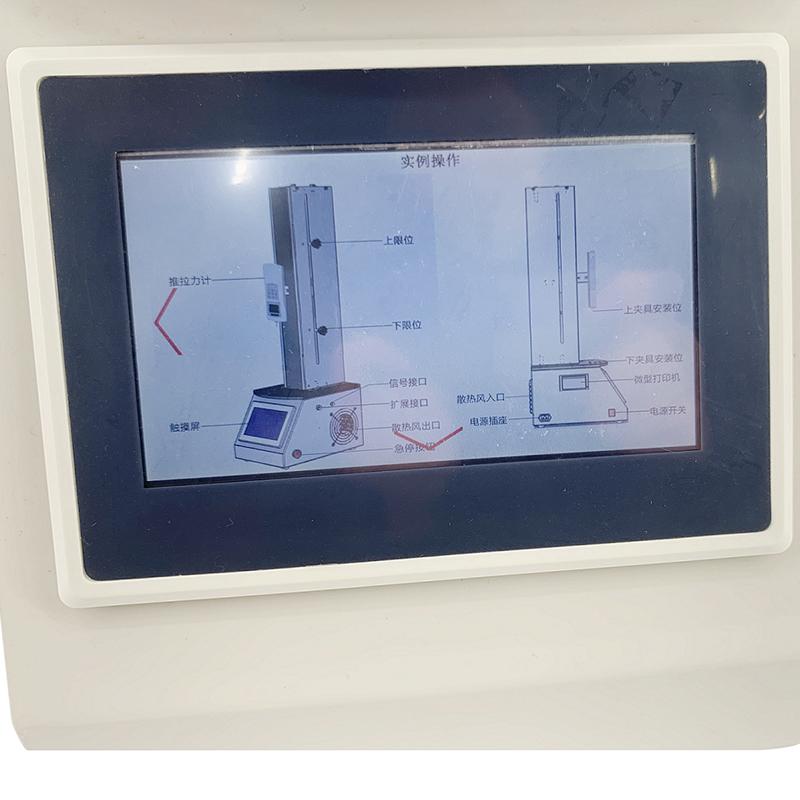

• 7-inch touch screen, friendly human-computer interface, simple and easy to use

• Four test modes: counting mode, timing mode, stretching mode, and autonomous programming mode

• Test speed can be set (speed controllable)

• The test displacement can be set (the displacement can be controlled), and the beam will remain still when the set displacement point is reached (the holding time can be set) or return to the origin

• The loading force can be set (the force value can be controlled), and the beam will remain still when the preset force is reached (the holding time can be set) or return to the origin

• Force holding function: The force holding time can be set freely

• Set the force value round-trip motion function: When the device runs to the specified force value, the force value, holding time, and number of movements can be set freely

• Tension and compression stop function: After the measured object is discharged, the beam remains still or returns to the origin

• In the fully automatic programming mode, 5 different test displacements and 5 different test speeds can be customized to meet different test needs

• Equipped with limit protection device, emergency shutdown device, leakage protection device

• It is equipped with a micro printer as standard, and the corresponding digital display push-pull force meter of the company can print test data

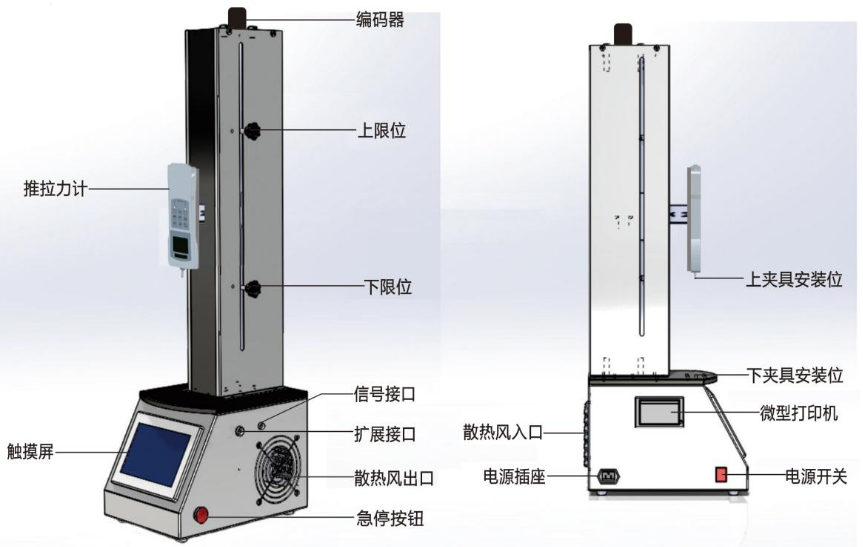

Product appearance structure drawing

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
