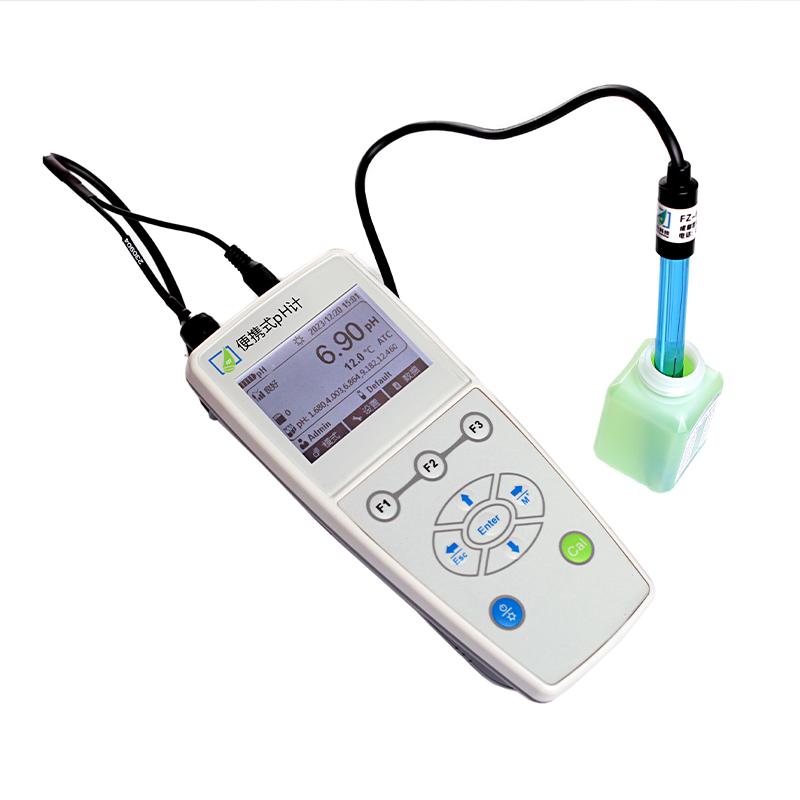

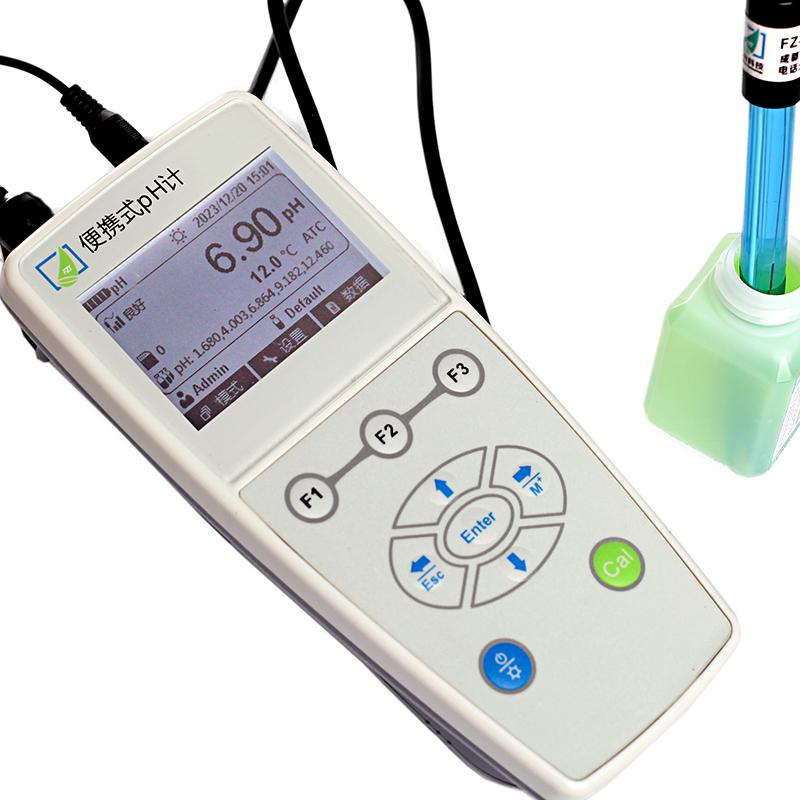

FANGZHOU FZR-362 Portable ORP/pH Meter PH Level 0.01

FZR-362

Portable ORP/pH Meter

Level 0.01, pH Measurement range (-5.00~20.00) pH, mV/RelmV Measurement range (- 2000.0~2000.0) mV, ORP Measurement range (- 2000.0~2000.0) mV, Temperature Measurement range (-20.0~135.0) ℃, Storage quantity 5000 sets, GLP standard meets GLP standard.

Features

• Large-screen LCD display, support backlight adjustment, table display, menu navigation operation

• Support Chinese and English language interfaces

• 3 temperature units available: Celsius (°C), Fahrenheit (°F), thermodynamic temperature (K)

• It has functions such as self-diagnosis at power-on, automatic shutdown at a timed time, power-off protection and factory reset recovery

• IP65 protection level is supported

Smart detection

• Intelligent operating system with functions such as method setting, sensor management, calibration management, sample management, and user management

• Allow users to set user ID, sample ID, support user hierarchical authority management, support password management

• Supports measurement of pH, mV, RelmV, ORP, and T values

• There are two ways to measure ORP: ORP relative to the reference electrode potential difference, and ORP relative to the hydrogen standard electrode potential difference

• Built-in reference electrodes with 6 different structural configurations, Ag-AgCl electrode [saturated KCl], Ag-AgCl electrode [3mol/L KCl solution],

• Ag-AgCl electrode [1mol/L KCl solution], calomel electrode [saturated KCl solution], calomel electrode [1mol/L KCl solution], calomel electrode [0.1mol/L KCl solution]

• It can automatically identify 28 pH standards in 6 groups of GB, Merck, DIN19267, NIST, European, and United States, and the calibration points of the standard solution range from the minimum to 1.09 pH to the maximum 12.75 pH calibration, and the maximum 5 calibration points

• It has electrode condition display, measurement limit, alarm function, and endpoint processing mode

• ATC automatic recognition, automatic/manual temperature compensation

• Five measurement modes: Manual Reading, Automatic Quick Reading, Automatic Medium Reading, Automatic Slow Reading, Timed Reading

• ORP calibration is supported

• Support 2 pH calibration fitting methods to meet the pH and ion concentration measurement of different samples

• Dual clock and date display shows the current time and provides a time reference for digital recording functions

• It has a timer storage function, and the timer storage time is: (5-3600) seconds

Data management and data traceability

• Current and historical calibration data can be consulted, including calibration personnel, calibration temperature, calibration point pH and mV, slope, equipotential offset, calibration date and time

• Support measurement value storage: Users and samples can be created dynamically, and no less than 5000 sets of data can be stored

• GLP compliant, data traceability and statistical analysis are realized

• With USB interface, the instrument can send the stored data to the computer acquisition software, and can export Excel files, notepad files, etc., which is convenient for users to archive and consult, statistical, analyze, compare and other operations of measurement data

power management

• Powered by large-capacity lithium battery, it can be charged by mobile power bank and PC

• It has the function of battery level display reminder and charging status reminder

• Support backlight adjustment

Packing list：Host * 1, FZ-610T pH electrode * 1, 5004 ORP electrode * 1, wristband * 1, charger and USB Type-C charging cable * 1 set, short circuit plug * 1, pH standard buffer solution * 1 set/3 bottles, user manual, warranty card, certificate of conformity, suitcase

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
