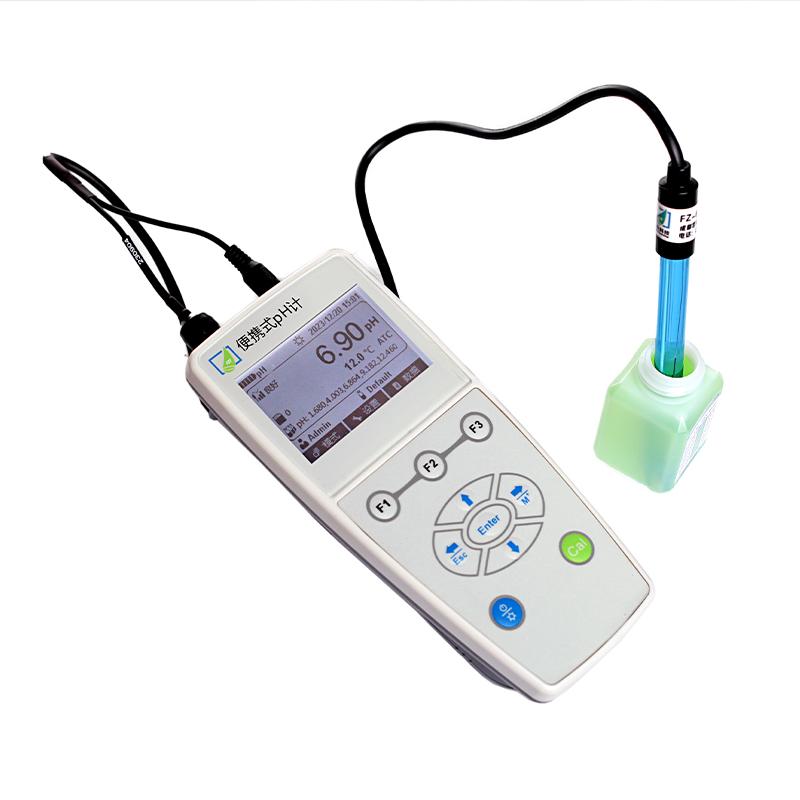

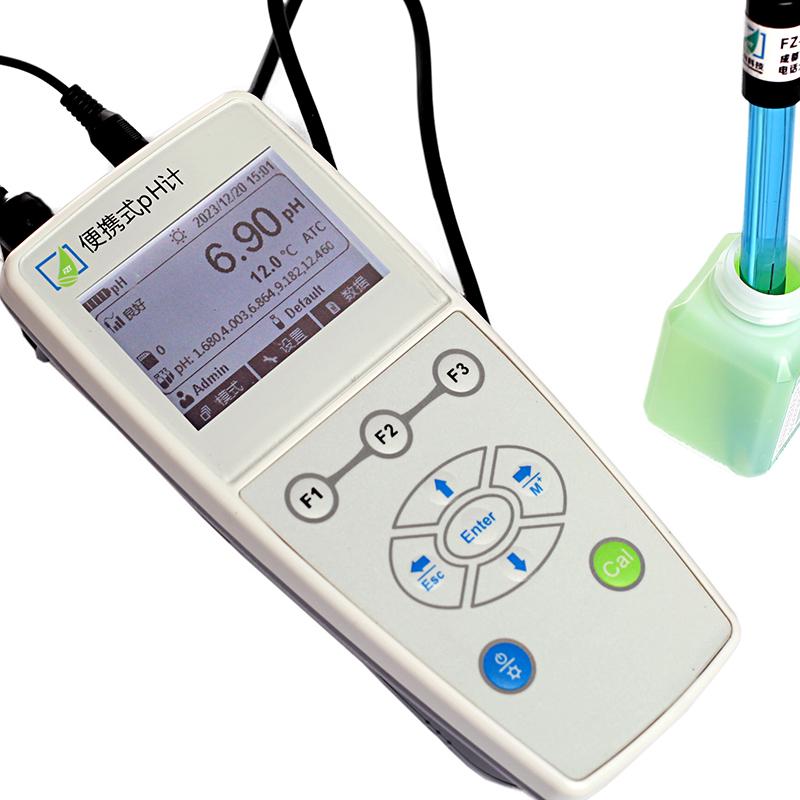

FANGZHOU PHBJ-360F Portable pH Meter ph Portable acidity meter 0.001 grade

PHBJ-360F

Portable pH Meter

Level 0.001, pH Measurement range (-5.000~20.000) pH, V/RelmV Measurement range (- 2000.00~2000.00) mV, ORP Measurement range (- 2000.00~2000.00) mV, suitable for outgoing measurement of sample pH value, stable and accurate measurement of 98% sample pH, mV, ORP, T.

Applicable scenarios

It is suitable for measuring the pH value of samples in the field, and can stably and accurately measure the pH, mV, ORP, and T of 98% of samples. Such as ultrapure water, pure water, water-based resin, water-based paint, gypsum powder, titanium dioxide, soil, protein, enzyme solution, TRIS buffer, PBS buffer, strong acid, strong alkali, wastewater, surface water, tap water, drinking pure water, etc.

Features

• Large-screen LCD display, support backlight adjustment, table display, menu navigation operation

• Support Chinese and English language interfaces

• 3 temperature units available: Celsius (°C), Fahrenheit (°F), thermodynamic temperature (K)

• It has functions such as self-diagnosis at power-on, automatic shutdown at a timed time, power-off protection and factory reset recovery

• IP65 protection level is supported

• It is equipped with 3 composite electrodes as standard, and special electrodes can also be selected, which can accurately and stably measure 98% of samples such as pure water, soil, micro samples, high viscosity and low ion concentration

Smart detection

• Intelligent operating system with functions such as method setting, sensor management, calibration management, sample management, and user management

• 0.001pH/0.01mV high-precision resolution, ≥ 3×1012Ω high input impedance design, to meet the stable measurement of 98% samples

• Allow users to set user ID, sample ID, support user hierarchical authority management, support password management

• Supports measurement of pH, mV, RelmV, ORP, and T values

• Built-in reference electrodes with 6 different configurations, Ag-AgCl electrode [saturated KCl], Ag-AgCl electrode [3mol/L KCl solution], Ag-AgCl electrode [1mol/L KCl solution], calomel electrode [saturated KCl solution], calomel electrode [1mol/L KCl solution], calomel electrode [0.1mol/L KCl solution]

• It can automatically identify 37 pH standards in 8 groups of GB, Merck, DIN19266/NIST, DIN19267, NIST, European, United States, Japan, and the calibration points of the standard solution range from a minimum of 1.09 pH to a maximum of 12.75 pH, and a maximum of 5 calibration points

• ATC automatic recognition, automatic/manual temperature compensation

• Five measurement modes: Manual Reading, Automatic Quick Reading, Automatic Medium Reading, Automatic Slow Reading, Timed Reading

• ORP electrode calibration is supported

• Support 2 pH calibration fitting methods to meet the pH and ion concentration measurement of different samples

• Dual clock and date display shows the current time and provides a time reference for digital recording functions

• It has a timer storage function, and the timer storage time is: (5-3600) seconds

Data management and data traceability

• Current and historical calibration data can be consulted, including calibration personnel, calibration temperature, calibration point pH and mV, slope, equipotential offset, calibration date and time

• Support measurement value storage: Users and samples can be created dynamically, and no less than 10,000 sets of data can be stored

• GLP compliant, data traceability and statistical analysis are realized

• With USB interface, the instrument can send the stored data to the computer acquisition software, and can export Excel files, notepad files, etc., which is convenient for users to archive and consult, statistical, analyze, compare and other operations of measurement data

power management

• Powered by large-capacity lithium battery, it can be charged by mobile power bank and PC

• It has the function of battery level display reminder and charging status reminder

• Support backlight adjustment

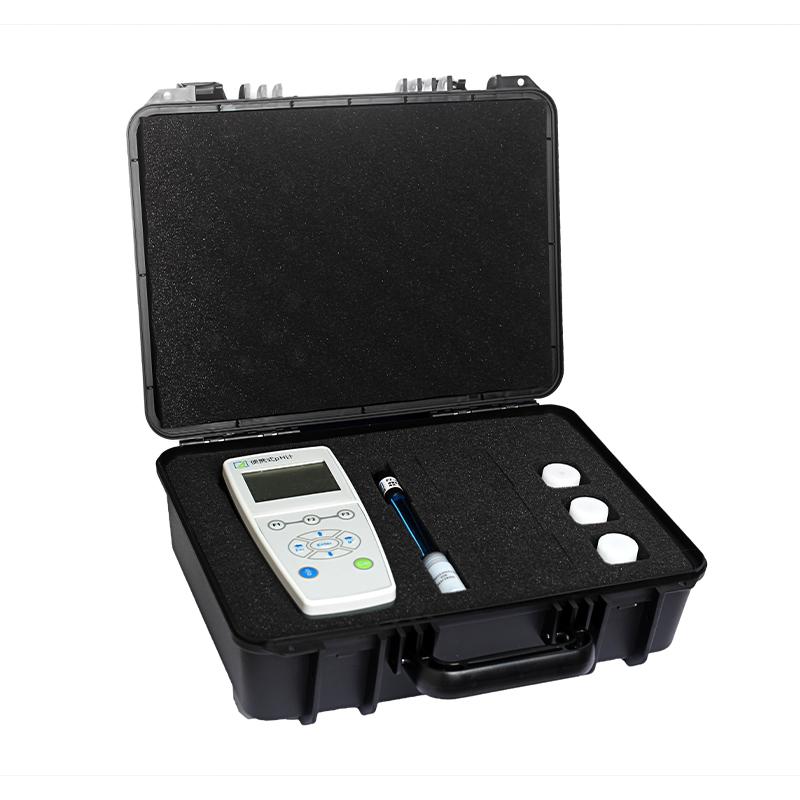

Packing list：Host * 1, FZ-610TpH electrode * 1, wristband * 1, charger and USB Type-C charging cable * 1 set, short circuit plug * 1, pH standard buffer solution * 1 set/3 bottles, user manual, warranty card, certificate * 1 set, suitcase * 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
