HUINUO TM3300 metering rod & drawdown blade heating vacuum adsorption Scraping Machine Four-in-one Film Applicator Customized
SE
TM3300/01
HuiNuo TM3300/01 Automatic Film ApplicatorSPEC
HuiNuo TM3300/01 Automatic Film ApplicatorDetails
HuiNuo TM3300/01 Automatic Film ApplicatorPacking list
- SKU
- NB047887
- Coating method
- Bar + drawdown blade
- Coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum adsorption + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 840*330mm
- Effective coating Area
- 600 * 300Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.001mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 680 * 260Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating Temperature range
- RT +~ 180 ℃ (higher temperature can be customized)
- Temperature Uniformity
- ±1℃
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Power
- 1800w
- Operating language
- Chinese (can be customized in English)
- Dimension
- 860*440*430mm
- Weight
- 40kg
Overview

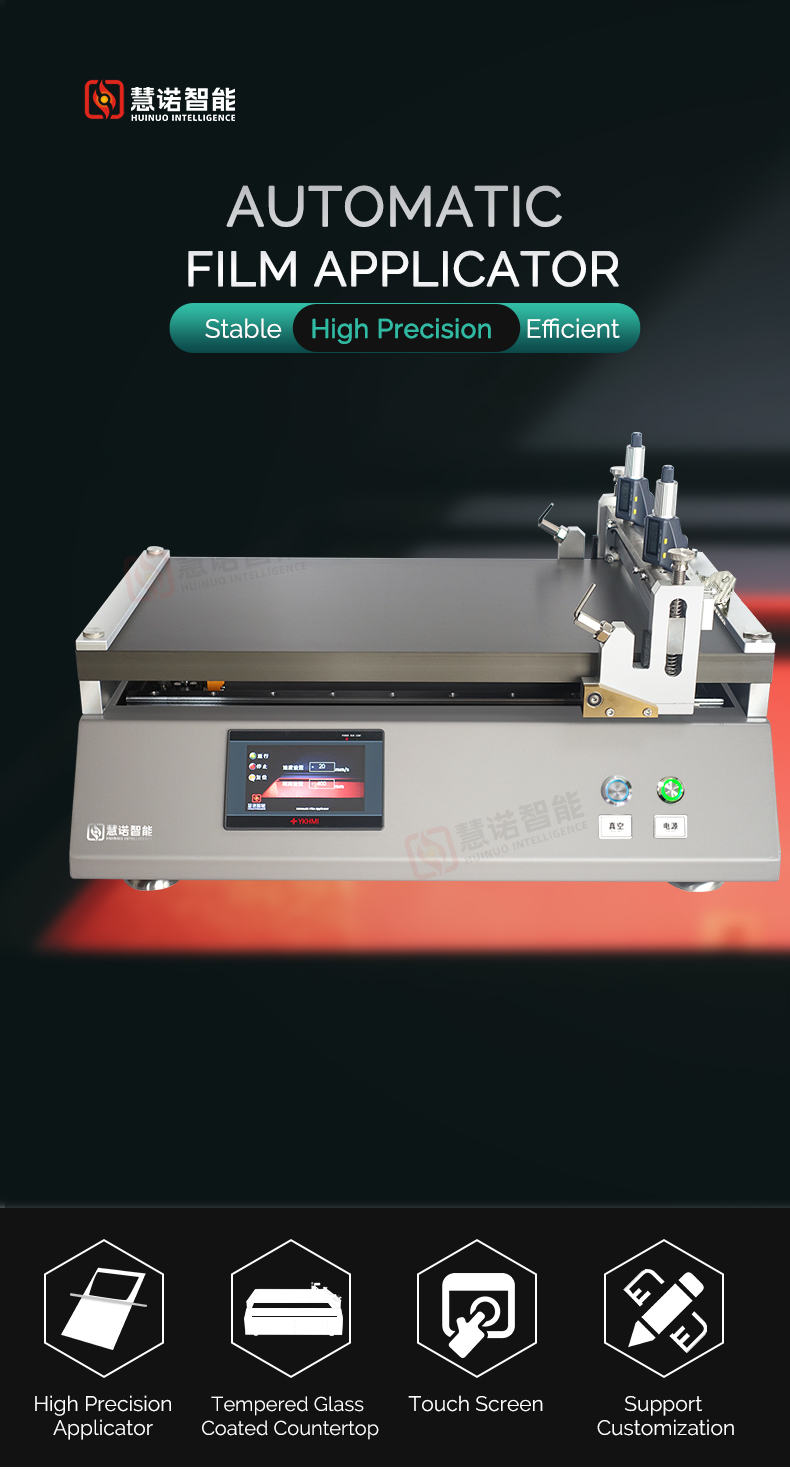

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
This coating machine is a wire rod doctor blade coating machine, with two functions of wire rod coating and doctor blade coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Application
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.
Features

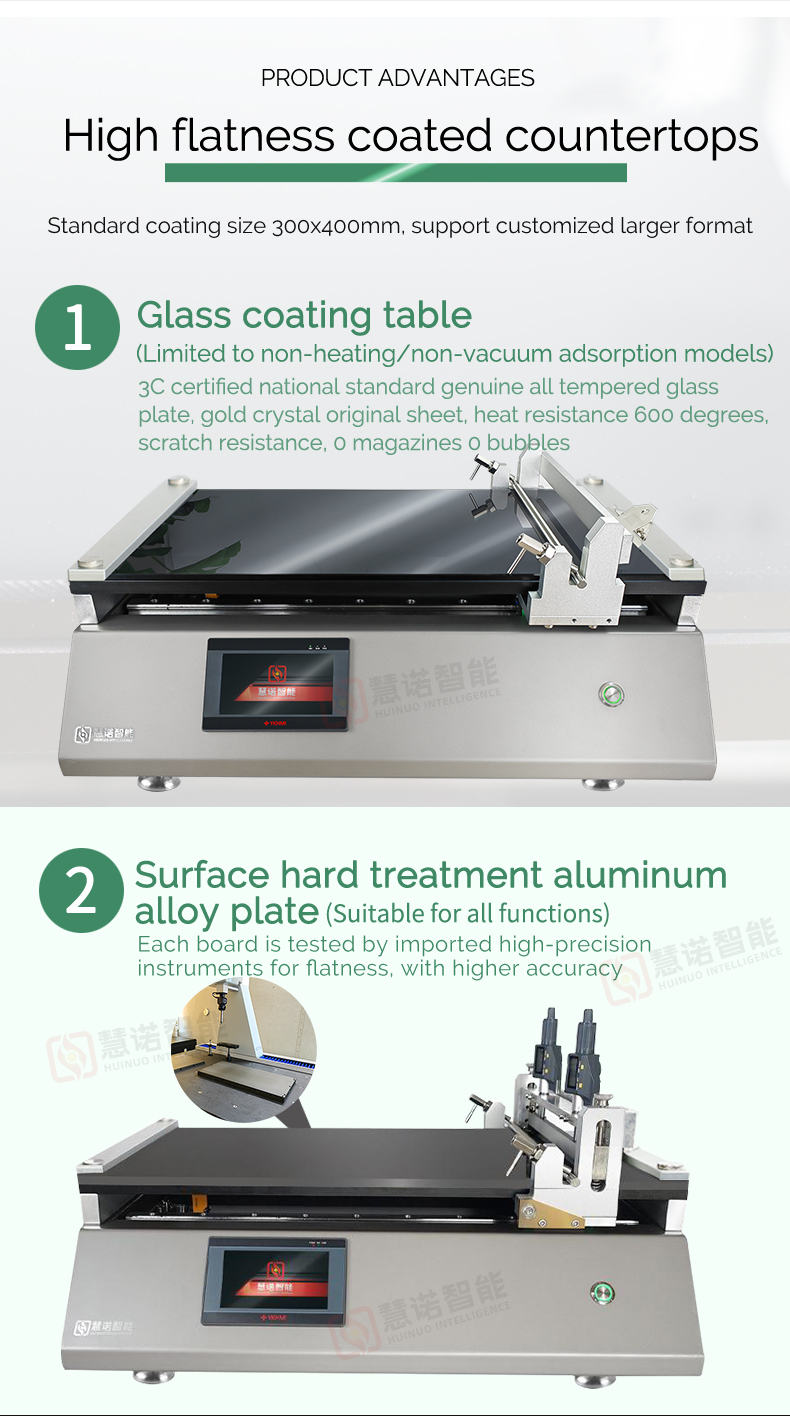

1）The surface is hard treated aluminum alloy countertop, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.

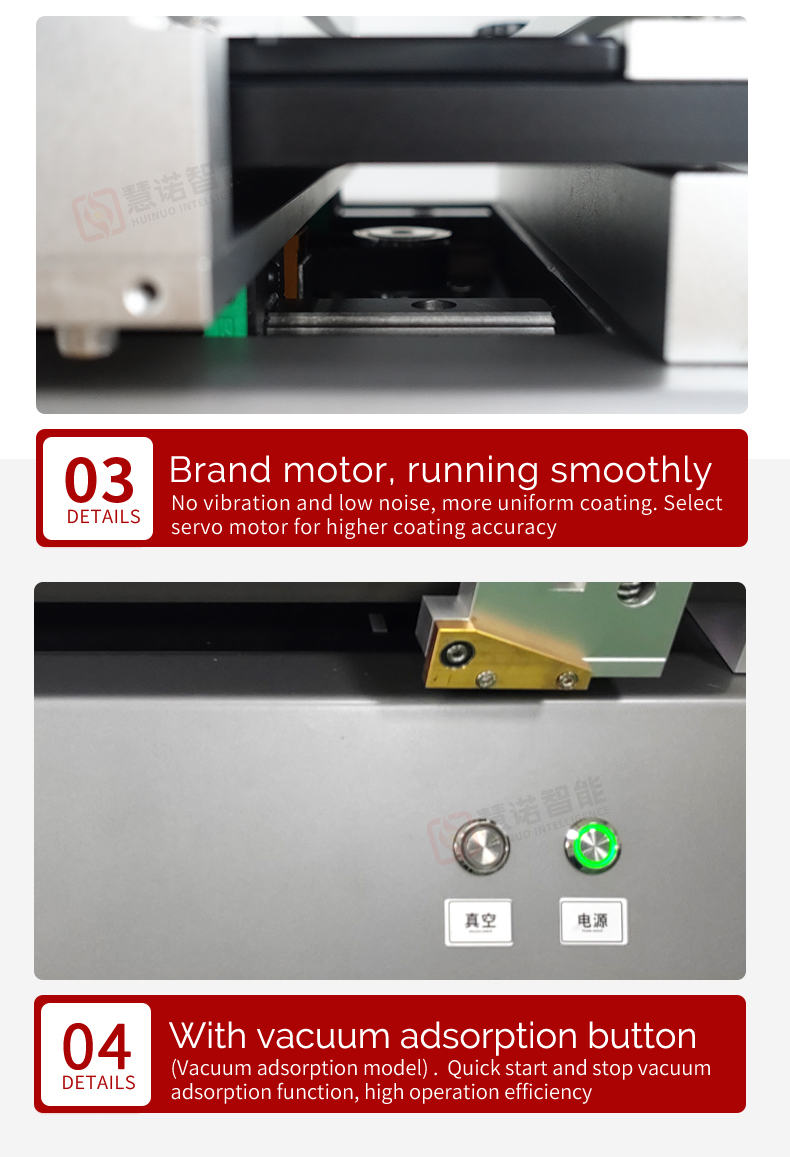

2) Big brand differential regulator, high film thickness control accuracy

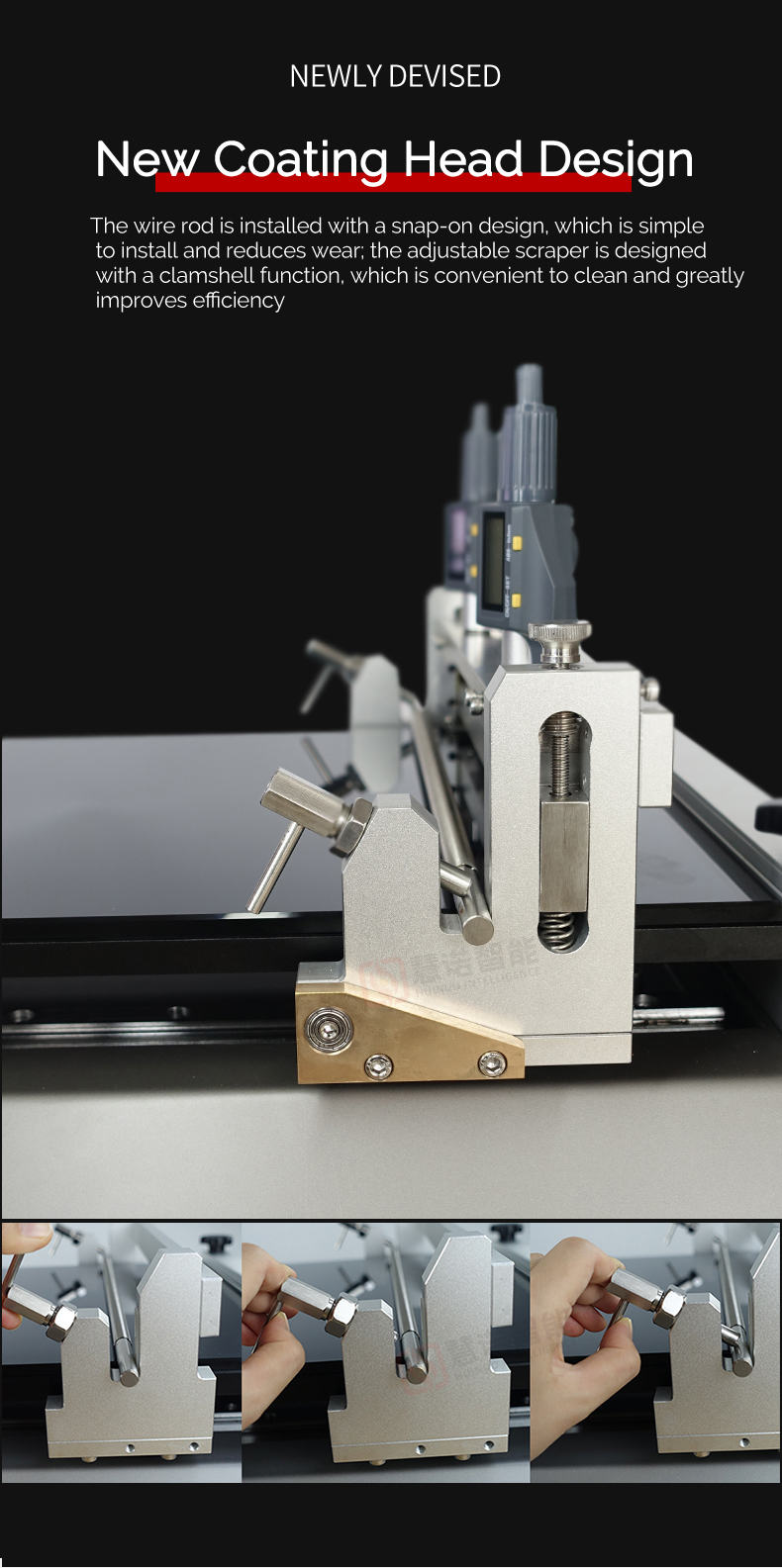

3) Clamshell doctor blade coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

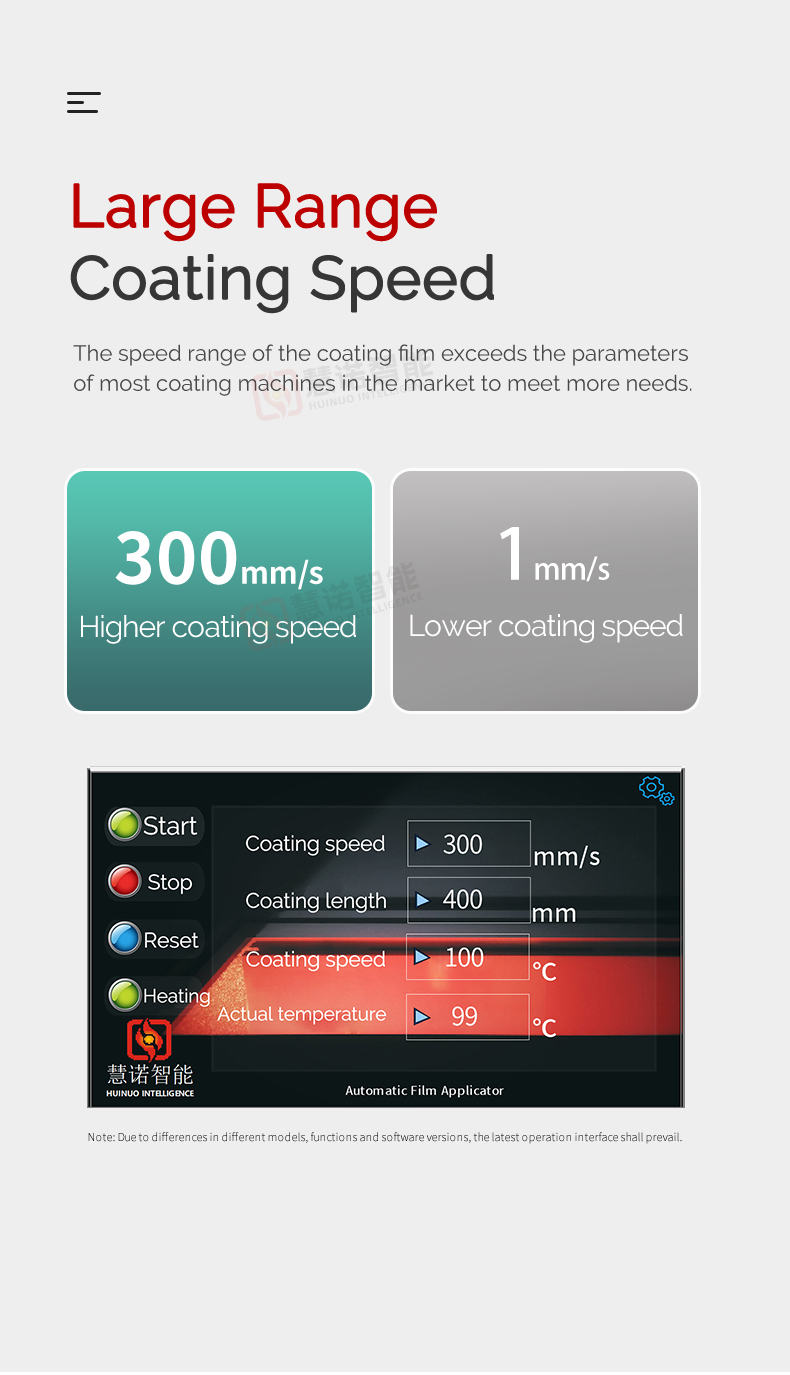

5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With vacuum adsorption and heating function
