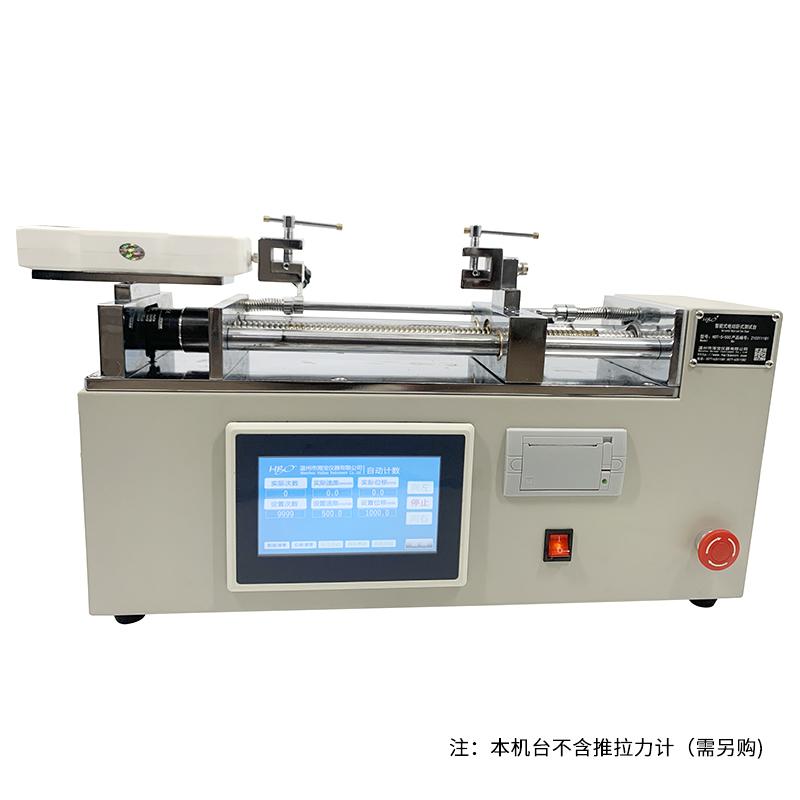

Hypertherm HDT-1000S Force Gauge intelligent horizontal machine, load 500N

HDT-1000S

Intelligent horizontal machine

7 inch touch screen, Test speed and displacement can be set, with force holding and tension breaking stop function, standard micro printer, load up to 1000N, Test space 275mm (excluding fixture).

Introduction:

This series of motors is equipped with push-pull force gauge and fixture, and can be combined into a small tensile and compression testing machine. The product adopts stepper motor and high-precision encoder, with stable mechanical properties and high precision, and has a series of functions such as controllable speed, displacement and time, manual (joging), automatic, automatic control of the number of movements, and delay in place. It is widely used in tensile and compressive load, plugging and unplugging force, destructiveness, fatigue and other tests in rubber and plastics, light industrial textiles, building doors and windows, composite materials, wires and cables, auto parts, power machinery, scientific research institutions and other industries.

Features

• 7-inch touch screen, friendly human-computer interface, simple and easy to use

• Four test modes: counting mode, timing mode, stretching mode, and autonomous programming mode

• Test speed can be set (speed controllable)

• The test displacement can be set (the displacement can be controlled), and the beam will remain still when the set displacement point is reached (the holding time can be set) or return to the origin

• The loading force can be set (the force value can be controlled), and the beam will remain still when the preset force is reached (the holding time can be set) or return to the origin

• Force holding function: The force holding time can be set freely

• Set the force value round-trip motion function: When the device runs to the specified force value, the force value, holding time, and number of movements can be set freely

• Tension and compression stop function: After the measured object is discharged, the beam remains still or returns to the origin

• In the fully automatic programming mode, 5 different test displacements and 5 different test speeds can be customized to meet different test needs

• Equipped with limit protection device, emergency shutdown device, leakage protection device

• It is equipped with a micro printer as standard, and the corresponding digital display push-pull force meter of the company can print test data

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
