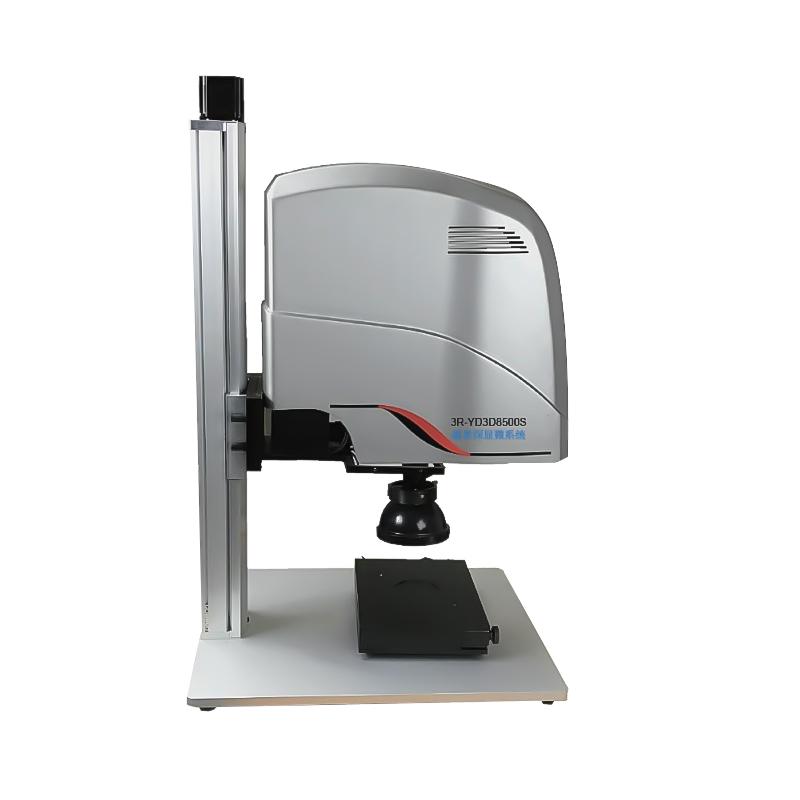

ANYTY 3R-YD3D8500S-H Super Depth of Field 3D Microscope Manual
SE
3R-YD3D8500S-H (manual)
Anyty 3R-YD3D8500S-H (manual) Super Depth of Field 3D MicroscopeSPEC
Anyty 3R-YD3D8500S-H (manual) Super Depth of Field 3D MicroscopeDetails
Anyty 3R-YD3D8500S-H (manual) Super Depth of Field 3D MicroscopePacking list
- SKU
- NB047910
- Optical inspection system
- Optical inspection system for infinity conjugation
- zoom magnification
- 16:1 super Zoom Ratio
- zoom
- Electric continuous zoom
- working distance
- 77Mm standard 2.5X objective
- multiple recognition
- Automatic identification magnification
- Image Sensors
- 1/1.7 inch, high speed color CMOS chip, 12 million pixels, automatic electronic global shutter
- frame rate
- 37 frames per second (37fps@4000X3000, 37fps@1600X1200 multimode)
- Image resolution
- Max 12 million pixel (4000X3000) 1600X1200
- Color reproduction
- High Performance Color Engine Ultra-Fine ™ Restoration Technology
- HDR function
- support
- visual illuminator
- High luminance LED lighting
- Light source lifetime
- 40,000 hours (operating life)
- Mingchang
- Standard Coaxial Light source mode
- darkfield
- Ring LED Cold Light source Diffuse reflection optional
- oblique shot
- Quarter lighting mode (software controlled)
- polarized light
- Standard (optional)
- differential interference
- Standard differential interference requires a dedicated interference lens (optional)
- transmission
- Standard (optional)
- Focus method
- Manual focus + auto focus + memory focal plane function
- Z-axis electric travel
- Z-axis focusing height 700mm, electric lift 500mm, sample detection height 420mm, resolution: 0.1um
- Support vertical and tilt
- Vertical Observation mode/Oblique Observation mode (-90 °~ + 90 °)
- Platform swirling/spinning
- 360 ° swirl/spin observation on the loading platform, including encoder recognition function, the software can display the rotation angle in real time
- Tilt angle display
- Not supported
- low power observation objective
- 2.5X standard objective lens working distance 77mm (0.3X/0.5X/0.75X/2X optional)
- Handheld observation objective
- 0-250X magnification intelligent display multiple, contact stable observation focusing properties: one-button automatic focusing function
- High power observation objective
- 2.5X(S/L)、5X、10X、20X、50X
- High power observation objective long working distance
- 49-77:11.875X-190X;45:22.5X-360X;33.5:45X-720X;21:90X-1440X;12:225X-3600X
- white light interference principle
- 0.1Mm-25mm range, maximum resolution 0.2nm, a variety of models (optional)
- range of travel
- Manual single mode 70mmX50mm
- Platform Accuracy
- 0.1mm
- Maximum load bearing MAX
- 2KG
- 3D Super Depth of Field
- Single field of view 3D observation
- resolution
- Dell DELL7000MT business machine, 17/12/32 GB/1T27 inch monitor high definition observation
Introduction
It adopts a high-resolution CMOS image sensor, with up to 20 million pixels and a professional gradeDSP back-end processing circuit, as well as image color processing technology, with HDR technology solutionCassia dark unevenness problem, can be in complex environments, low noise, quickly identify boundaries andDetails, color reproduction is realistic, and the three-dimensional topography of microscopic samples can be displayed without damage.
Features
The large stroke design meets the needs of various sample testing
APO apochromatic lenses provide ultra-high resolution and support up to 20 million pixels
The multi-functional programmable light source meets the complex detection requirements
Automatic stage supports 3D optical stitching and 3D measurement (fully automatic)
16:1 zoom motorized auto-zoom lens for accurate zoom
Full Degree of Freedom Observation System: Motorized XYZ stage and rotating bracket 90° real-time display angle(Fully automatic)
700mm ultra-long electric focusing column

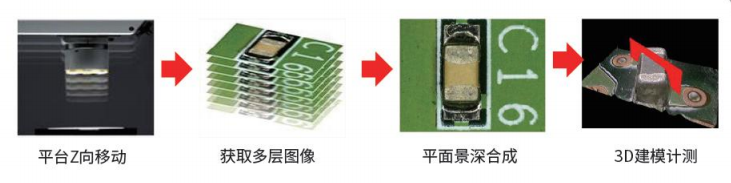

Schematic diagram of 3D microscopic synthesis

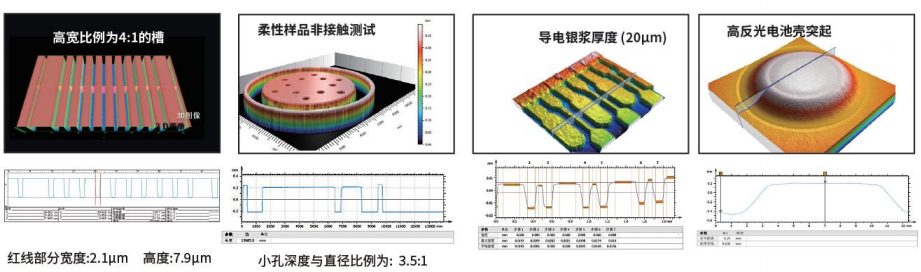

The case for 3D scanning
Annular coaxial LED cold light source illumination (diffuse reflection optional)
The LED pure white light cold light source is adopted, which has a wide spectrum range, true colors, and various forms of LED life40,000 hours, 5,700K color temperature requires different band light sources. Excitation illumination is provided for fluorescence testingThe light source used in the machine vision system is the light source. It can set up duplex lighting technology with digital extinction technologyHDR, which can show the details of the sample.
