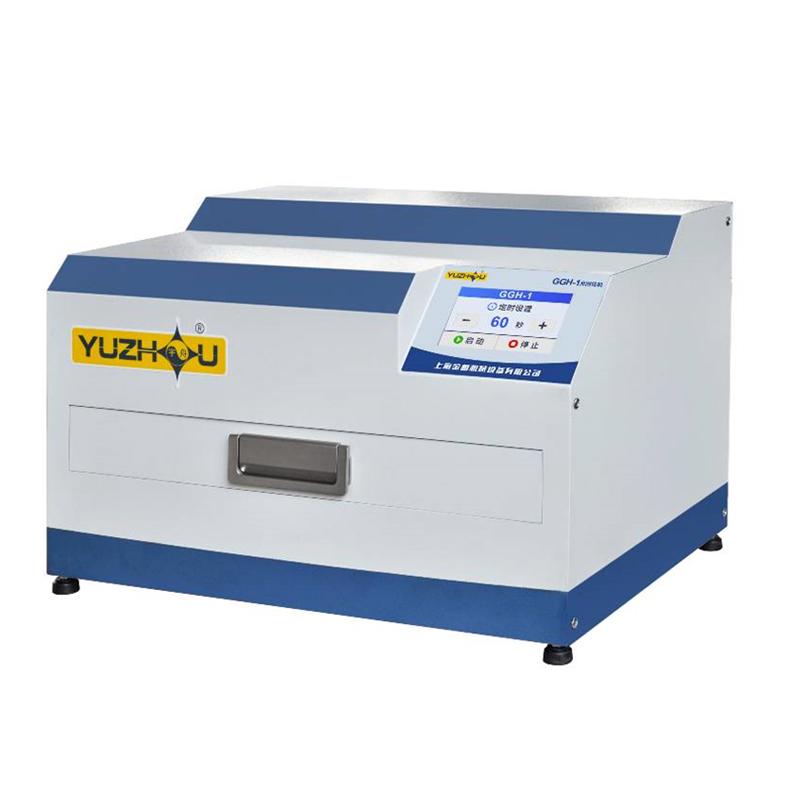

YUZHOU GGH-1 Light curing machine Resin UV curing machine

GGH-1

Light curing machine

Up to 20 samples can be processed at the same time, suitable for samples with irregular shapes, tiny and protective edges. Using a UV Light source, Resin rapidly cures in 60 seconds to form a completely transparent and bubble-free mosaic specimen, ensuring high-quality sample preparation.

Introduction

Inlay is a very important part of the process of metallographic sample preparation, especially for some small samples that are not easy to hold by hand, samples with irregular shapes that need to protect the edges or samples that need to be automatically ground and polished, and the inlay of the sample is an essential process. GGH-1 is a cold mounting machine for sample preparation and rapid curing of resin by irradiation with UV light source. The resin is poured into a specific cold mounting mold and placed in the work chamber, and it takes only 60 seconds to obtain a completely transparent mounting specimen. Fast sample preparation, no air bubbles, can meet the needs of high-quality sample preparation.

Features

The sample preparation speed is fast, and the completion time of transparent mounting is only 60 seconds

Large working chamber capacity for up to 20 samples (30 mm diameter)

The internal aluminum alloy structure is easy to maintain

Dual-light source ultraviolet LED, multi-directional irradiation without dead angle

Low shrinkage, irradiation time can be set freely

If the initial temperature is 22 °C, the polymerization temperature is about 70 °C

The hardness of the cured mounting material is about 84~86 Shore D

1L filament can make 55~65 30mm samples

Packing list：Host * 1, cold setting hard mold * 5, UV curing agent * 1 bottle, manual * 1, certificate * 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
