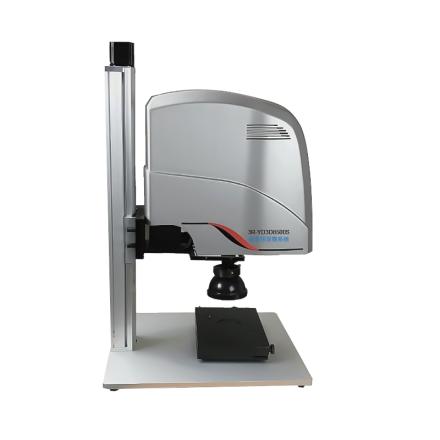

Anyty 3R-YD3D8500S-A (fully automatic) Super Depth of Field 3D Microscope Specifications
Search
Brand：Anyty
Model：3R-YD3D8500S-A (fully automatic)
Name：Super Depth of Field 3D Microscope
Specifications
| Optical inspection system | Optical inspection system for infinity conjugation |
| zoom magnification | 16:1 super Zoom Ratio |
| zoom | Electric continuous zoom |
| working distance | 77Mm standard 2.5X objective |
| multiple recognition | Automatic identification magnification |
| Image Sensors | 1/1.7 inch, high speed color CMOS chip, 12 million pixels, automatic electronic global shutter |
| frame rate | 37 frames per second (37fps@4000X3000, 37fps@1600X1200 multimode) |
| Image resolution | Max 12 million pixel (4000X3000) 1600X1200 |
| Color reproduction | High Performance Color Engine Ultra-Fine ™ Restoration Technology |
| HDR function | support |
| visual illuminator | High luminance LED lighting |
| Light source lifetime | 40,000 hours (operating life) |
| Mingchang | Standard Coaxial Light source mode |
| darkfield | Ring LED Cold Light source Diffuse reflection optional |
| oblique shot | Quarter lighting mode (software controlled) |
| polarized light | Standard (optional) |
| differential interference | Standard differential interference requires a dedicated interference lens (optional) |
| transmission | Standard (optional) |
| Focus method | Manual focus + auto focus + memory focal plane function |
| Z-axis electric travel | Z-axis focusing height 700mm, electric lift 500mm, sample detection height 420mm, resolution: 0.1um |
| Support vertical and tilt | Vertical Observation mode/Oblique Observation mode (-90 °~ + 90 °) |
| Platform swirling/spinning | 360 ° swirl/spin observation on the loading platform, including encoder recognition function, the software can display the rotation angle in real time |
| Tilt angle display | Support (-90 ° - + 90 °), software real-time display degree |
| low power observation objective | 2.5X standard objective lens working distance 77mm (0.3X/0.5X/0.75X/2X optional) |
| Handheld observation objective | 0-250X magnification intelligent display multiple, contact stable observation focusing properties: one-button automatic focusing function |
| High power observation objective | 2.5X(S/L)、5X、10X、20X、50X |
| High power observation objective long working distance | 49-77:11.875X-190X;45:22.5X-360X;33.5:45X-720X;21:90X-1440X;12:225X-3600X |
| white light interference principle | 0.1Mm-25mm range, maximum resolution 0.2nm, a variety of models (optional) |
| range of travel | Automatic platform 150mmX100mm |
| Platform Accuracy | Piezoelectric displacement stage: 100nm |
| Maximum load bearing MAX | 5KG |
| 3D Super Depth of Field | Single field of view observation, 3D splicing observation |
| resolution | Dell DELL7000MT business machine, 17/12/32 GB/1T27 inch monitor high definition observation |
Packing list
After-sales instructions
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/47918/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
