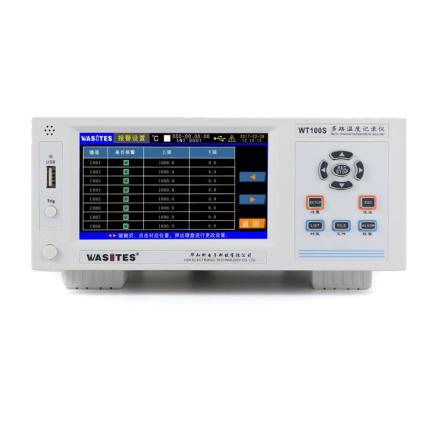

Wasites WT100S-32 Multi-channel temperature Recorder (upgrade regular version) Specifications
Search
Brand：Wasites
Model：WT100S-32
Name：Multi-channel temperature Recorder (upgrade regular version)
Specifications
| Number of channels | 32 channels |
| Display | 5 inch TFT true color LCD industrial touch screen 854 * 480 pixels |
| display format | Real-time list values, current alarm list, file record list. |
| record query | Analyze queries in computer software. |
| Number of channels | 8 channels per module. Up to 64 channels are supported |
| Thermocouple | KJETNSRB |
| Basic Precision | 0.2 ℃ + 2 characters (without Thermocouple error) |
| Measurement range | -200~1820 ℃ (subject to Thermocouple indexing range) |
| cold junction compensation | Accuracy: 0.5 ℃ |
| resolution | 0.1℃ |
| correction | Independent error correction per channel Y = kx + b (x = Measured value) |
| Number of files | 64 (loop record), file format: CSV (directly open with EXCEL) |
| file Capacity | A file can record the number 130,000 groups (without distinguishing between Number of channels) |
| U disk interface | Export record files, change the U disk function in seconds (the instrument is a U disk), and directly view files and software. |
| recording time | The 1-second recording interval is recorded continuously for 97 days, and the total duration is calculated = the recording interval is X97 days. |
| Sampling speed | Fast per channel: 0.1S. Slow speed: 1S |
| channel isolation | AC/DC up to 350V, high Voltage live measurement. Super anti-interference ability |
| Control output | without |
| Alarm sound | Buzzer sound all the way (sound at any alarm, can be set to mute) |
| recording interval | 1-9999 seconds arbitrary setting |
| Communication interface | Standard USB (optional RS485, RS232). |
| Power supply | AC85- 265V +/- 10%, Frequency 50Hz/60Hz < 1 0W |
| Thermocouple | Standard per channel - 2 m K type Thermocouple |
| Dimension | 220*293*106mm |
| Weight | About 3Kg (different configurations vary) |
| environmental conditions | 5~ 40 ℃, 20%~ 80% RH (no condensation) |
Packing list
Host * 1, power cord * 1, user manual * 1
Certificate of conformity/warranty card * 1 copy, Thermocouple cable * 32, data cable * 1
After-sales instructions
Warranty days: 730 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
