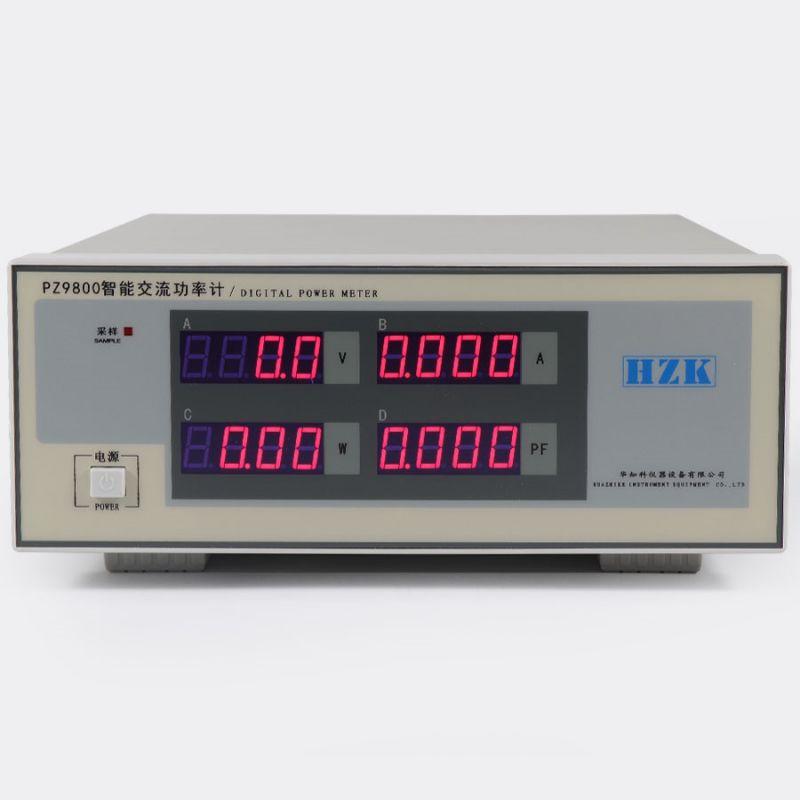

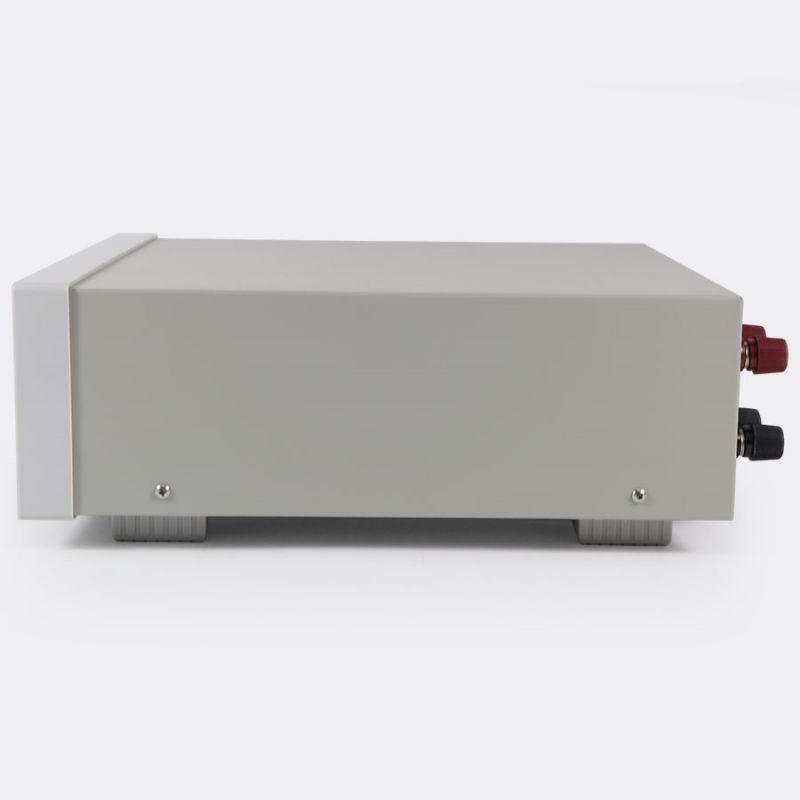

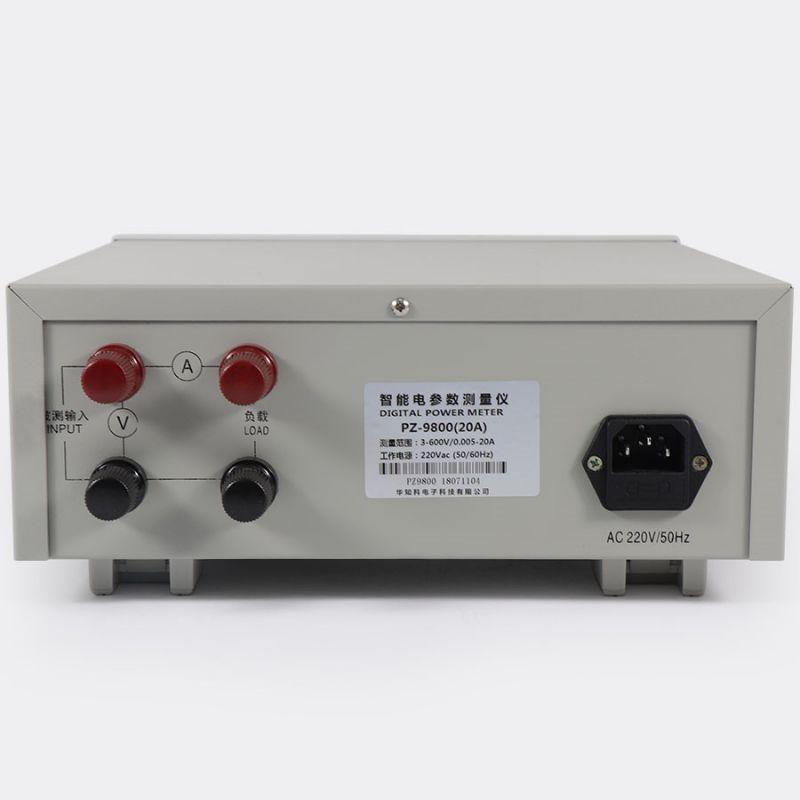

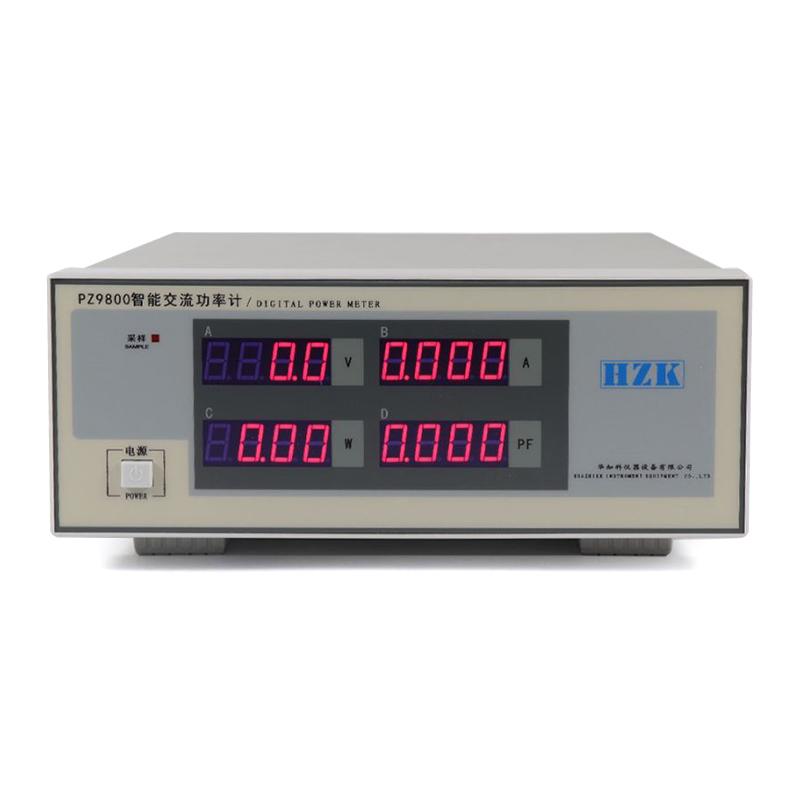

Wasites PZ9800 (20A) Intelligent AC Power Meter, Basic

PZ9800(20A)

Intelligent AC Power Meter

AC (Voltage, current, Power, Power factor); Voltage: 3-600V Current: 5mA-20A; accuracy: 0.3% reading + 0.1% range + 2 words

overview

The electrical parameter Tester uses high-speed CPU for data processing, and the Voltage\current is adoptedLow-temperature bleaching resistance or high-precision transformer sampling, so that the sampling signal is not filtered, guaranteedStability and accuracy of measurement data. With True RMS measurement, it can be adaptedWave, half-wave (AC and DC type), non-standard waveform and other electrical parameter measurement in various occasions. BenyiThe device can measure Voltage (V), current (A), active power (W), power factor PF, frequency Hz and other parametersNumber. The instrument has the characteristics of perfect function, superior performance and simple operation, which can meet the needs of lifeHigh-speed measurement at the production site can also meet the needs of laboratory and R&D measurements.

It is widely used in lighting appliances, power tools, household appliances, motors, electricityProduction lines, laboratories, and quality inspection departments of manufacturers in the fields of thermal appliances.

According to the actual needs of the user, a variety of measurement functions can be customized to meet higher applications.

peculiarity

1. Digital display, intuitive reading, using high-speed AD converter and 32-bit MCU operation.

2. Multi-window display of Voltage, current, power, power factor/frequency at the same time, stable measurement, fast measurement.

3. The Voltage and current range are automatically switched to improve the measurement accuracy.

4. The measurement accuracy is not affected by the waveform, with high reliability and long life.

5. AC and DC type can be more suitable for the measurement of half-wave rectification. It can also measure the AC component in DC, and can also be suitable for measuring the DC component in AC, or measure the true value (AC+DC)

6. And RS-232 serial communication interface, easy to communicate with the computer (this function needs to be charged)

7. The upper and lower limit alarm parameters can be set freely, with sound and light alarm function, and can set qualified or unqualified alarm function, and can set delay alarm. Batch inspection improves efficiency.

Packing list：Host * 1, power cord * 1, user manual * 1, certificate/warranty card * 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
