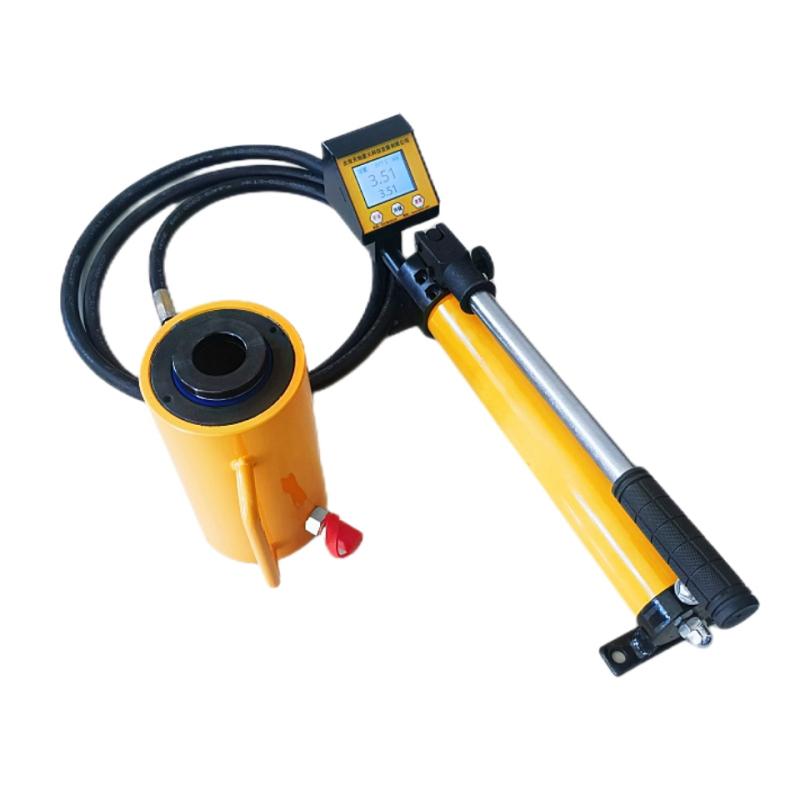

TIANDIXINGHUO XH-15TS Intelligent bolt drawing instrument, bolt and cable Tensile Tester 150kN

XH-15TS

Intelligent anchor puller

Measurement range 0~150kN, center aperture 34mm, data interface, Linear dispersion interface can be switched, with automatic storage function, stopwatch function, support pulling force-time Linear dispersion display, adjustable screen luminance.

Application

The XH-nTS series pull-out instrument (tensile force meter) developed and produced by Tiandi Xinghuo is suitable for the detection of the anchoring force of anchors, steel bars (planting bars), anchor bolts and other anchors, and is the recommended instrument for the quality inspection of anchor rods and anchor bolts.

The puller is composed of a hand pump, a hydraulic cylinder, a digital pressure gauge and a high-pressure hose. The pump body is made of aluminum alloy material and stainless steel material, which has a long service life. The hydraulic cylinder is a hollow fail-safe type, which is quickly connected to the high-pressure hose through a quick coupling. The color touchscreen pressure gauge reads intuitively, and the tension force (kN) of the anchor rod and anchor bolt can be directly read. This series of pullers has compact structure, accurate measurement and stable performance. It meets the requirements of GB50367-2006 "Code for Reinforcement Design of Concrete Structures" and JGJ 145-2013 "Technical Regulations for Post-Anchorage of Concrete Structures".

Features

1. 240*320 color touch screen

2. The detection process is automatically stored

3. The memory card stores the data, which is stored in EXCEl format, and the data can be viewed online on the computer

4. Pull-out force value-time curve display

5. Large-capacity memory card, which can store 10,000 pieces of data.

6. Data is stored automatically, and 1 data is stored in 0.5S.

7. The brightness of the screen is adjustable

8. Automatic shutdown can be set

9. Switch between Chinese and English display

10. The range can be switched, and a digital display can calibrate multiple hydraulic cylinders

11. Two display interfaces (data interface, curve interface)

11. Engineering plastic packaging box, rainproof, dustproof and impact-proof.

Operating Principle

The working principle of the intelligent pull-out instrument (tensile force meter) is: when the center hole of the jack passes through the measured rod, select a suitable anchor to clamp the leakage part of the measured rod; Under the action of the hydraulic pressure of the manual pump, the oil pressure is transmitted to the cylinder body through the oil pipe, and the piston rod moves outward against the special anchor; The pressure acts directly on the shell of the anchor, and then transmits to the clamp, which clamps the measured rod after being stressed, and finally promotes the rod to be pulled outward. At this time, the pressure gauge on the pressure pump shows the corresponding force (kN) value, which reflects the tensioning force of the measured rod. After the puller completes the test, the anchor needs to be manually removed with less force shaking and vibration before the hollow cylinder can be easily removed.

Product structure diagram

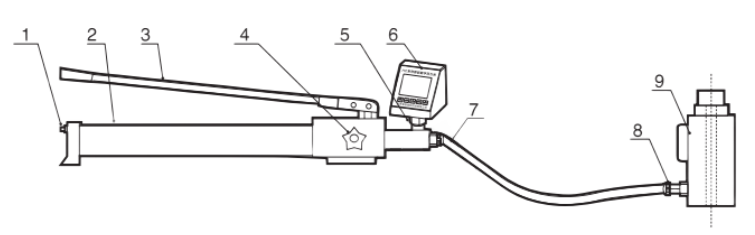

1. Oil filler 2, oil reservoir 3, pressure rod 4, unloading valve 5, pressure sensor 6, intelligent digital display table 7, high-pressure oil pipe 8, quick connector 9, hollow self-centering hydraulic cylinder

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
