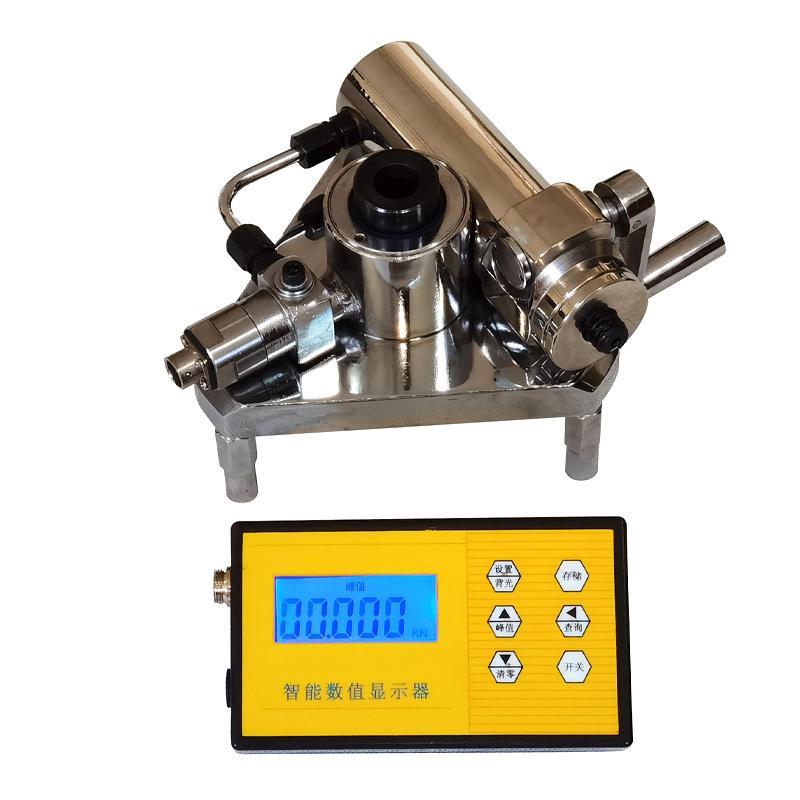

TIANDIXINGHUO XH-40S Intelligent multifunctional strength Tester Concrete Strength Tester 40kN
SE
XH-40S
TianDiXingHuo XH-40S Intelligent Multifunctional Strength TesterSPEC
TianDiXingHuo XH-40S Intelligent Multifunctional Strength TesterDetails
TianDiXingHuo XH-40S Intelligent Multifunctional Strength TesterPacking list
- SKU
- NB048047
- The maximum pulling force of the Detector
- 40kN
- Inner diameter of chassis fulcrum
- 120mm
- Digital resolution
- 0.001kN
- error of indication
- ≤±1.5%F.S
- Screen size
- 240 * 320 color touch screen
- Data storage
- TF memory card, capable of storing 10,000 pieces of data
- Storage method
- The memory card stores data, and the computer Connectivity can view the data
- automatic storage
- With automatic data storage function, 0.5S stores 1 data
- Linear dispersion display
- Linear dispersion display of force value and time
- Screen luminance
- Adjustable
- Automatic shutdown
- have
- automatic storage
- have
- peak function
- have
- display language
- Chinese and English (switch at will)
- Net Weight
- 3.2Kg
Uses and characteristics
XH-40S intelligent multi-function strength Tester is used to test the bond strength and concrete strength of facing bricks and mosaics of construction projects and walls or ground.
The instrument is a small hydraulic force measuring device, when detecting the bonding strength of the facing brick, the tensile force is generated on the bonded material of the facing brick by the three-point reaction support, and the concrete is detected by using the principle of the afterload pull-out method, and the concrete strength is calculated by measuring the force required to pull out the anchor placed in the concrete.
The instrument is composed of a heart-piercing jack, a hand-cranked pump, a triangular chassis and a force measuring device, and has the characteristics of one machine for two purposes, novel structure, small size, convenient operation and complete functions.
The oil pump of the Detector is loaded manually, with small driving torque, comfortable and reasonable swinging, and continuous and uniform loading.
Using single-chip microcomputer as the core intelligent data processor, the battery in the machine can be recharged, with full digital display, automatic zero (which can eliminate the measurement error caused by friction in the hydraulic system), and real-time force display of peak value.
Meets standards
CE CS69:2011
JGJ110-2008 "Inspection Standard for Bond Strength of Facing Bricks in Construction Engineering"
JGJ126-2000 "Regulations for Construction and Acceptance of Exterior Wall Facing Brick Engineering"

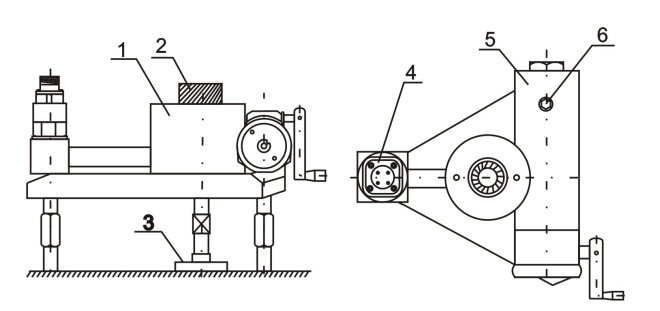

Product structure diagram
1. Accessories for testing; 2. a jack; 3. a standard block; 4. a pressure sensor interface; 5. Hand pump
