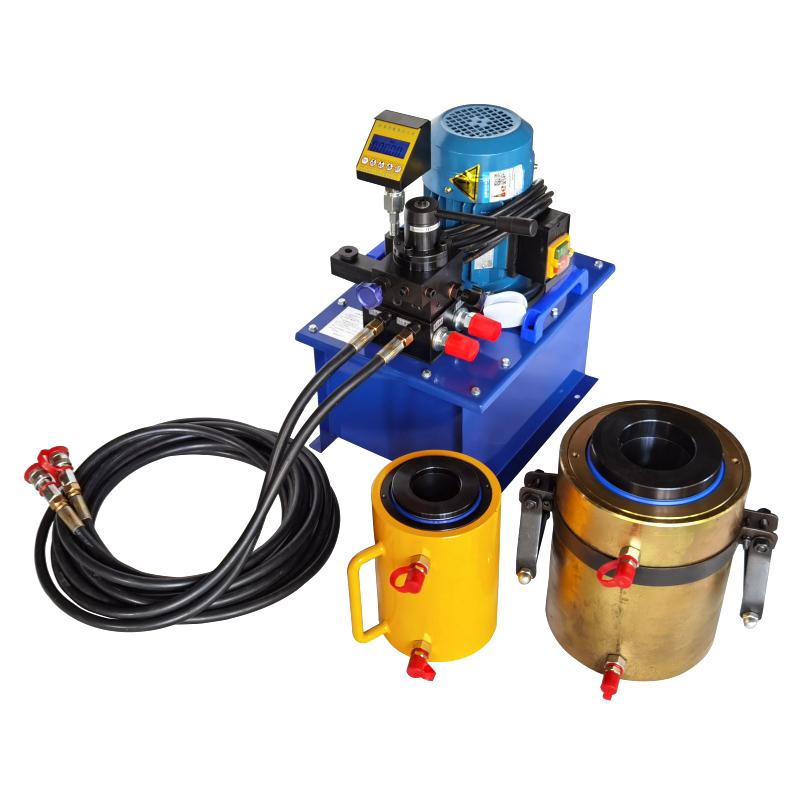

TIANDIXINGHUO XH-100T Graded Pressure Relief Electric Drawing Instrument, Bolt Drawing Instrument 1000kN

XH-100T (electric)

Staged pressure relief electric drawing instrument

Measurement range 0~1000kN, tension stroke 120mm, hollow double oil hydraulic cylinder, graded pressure relief, pressure gauge with peak holding function, and can store 50 data.

Uses and characteristics

The XH-50/100T series electric bolt puller (bolt puller) developed and produced by Tiandi Xinghuo is suitable for the detection of anchor solid anchoring force such as anchor rods and anchor cables, and is an essential instrument for anchor construction quality inspection.

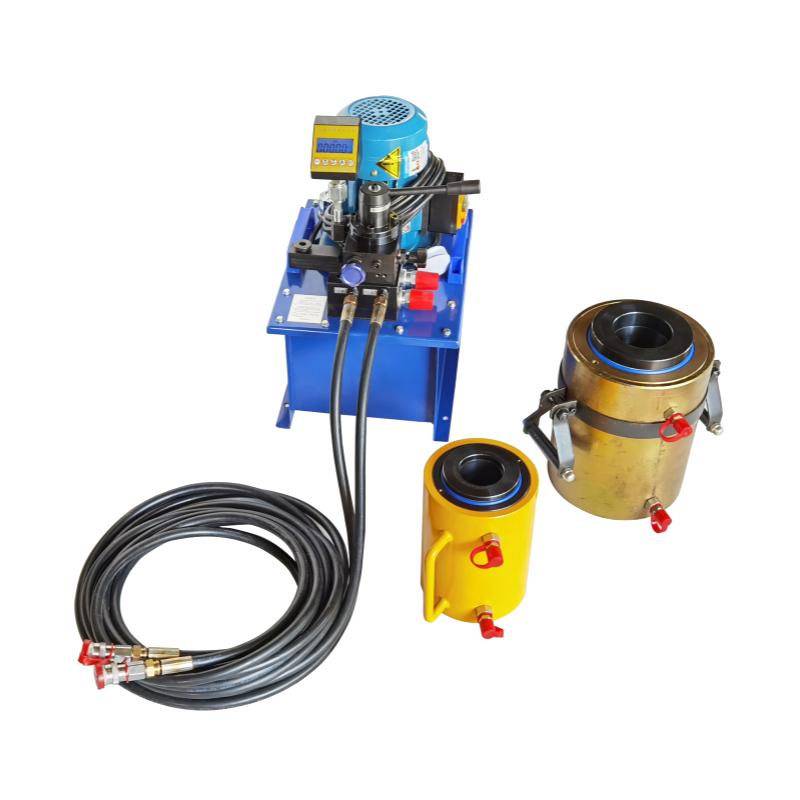

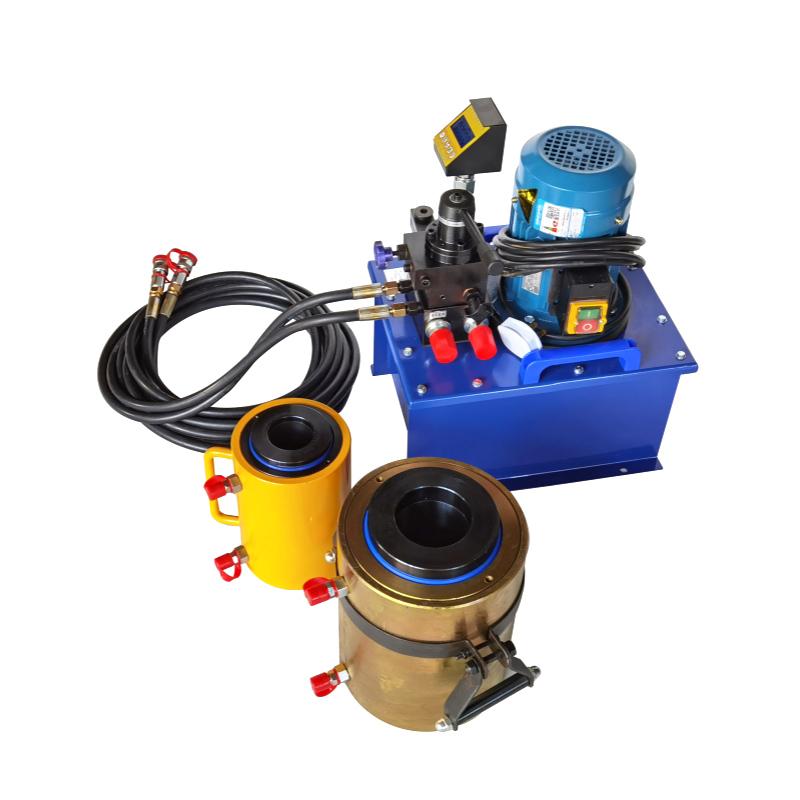

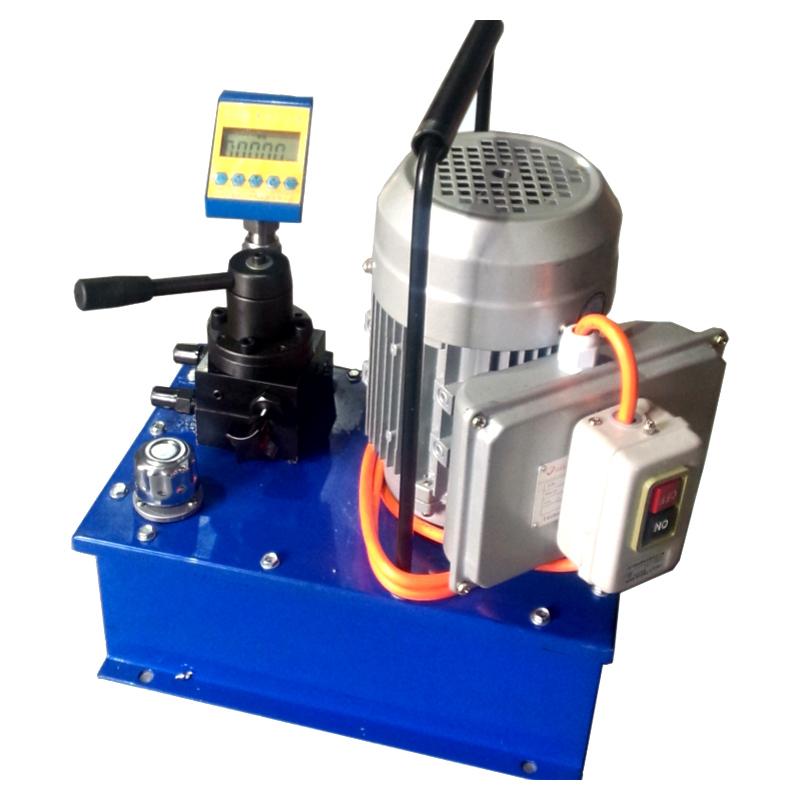

The tensile gauge consists of an electric pump, a hydraulic cylinder, a digital pressure gauge and a high-pressure hose. Among them, the working type of the electric pump is a double-oil circuit plunger design, with high working efficiency, fast loading speed, and high pressure can be adjusted and set according to the required pressure. The three-position four-way manual reversing valve is installed on the pump body, which can make the inlet and outlet oil circuit reversible, the valve adopts the end seal structure, the sealing performance is better than the general steel ball structure, the operation is convenient, and the life is long. The hydraulic cylinder is in the form of a hollow double oil circuit, which is connected to the high-pressure hose through a quick coupling. The digital pressure gauge is installed on the pump body, and the KN value is read directly, so there is no need to convert.

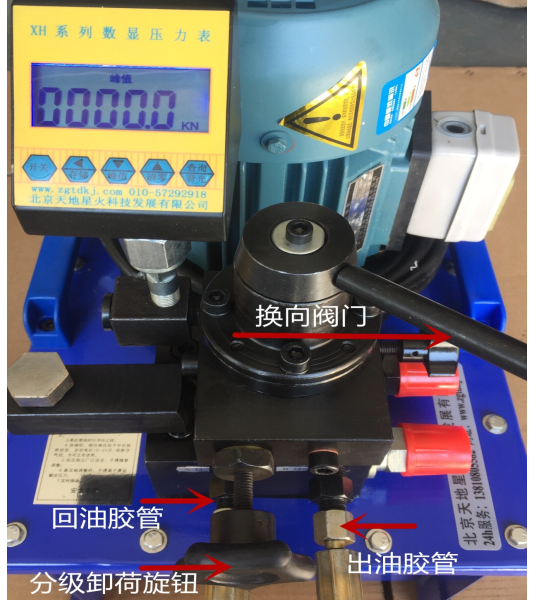

Product structure diagram

Reversing valve: controls the loading and unloading of the oil pump.

Graded unloading knob: Slow counterclockwise rotation can control the graded unloading of the hydraulic cylinder, please tighten clockwise before use.

The gauge has a peak hold function and can store 50 pieces of data. This series of Bolt Tension Gauge has the characteristics of novel structure, reliable performance, convenient operation and small size.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
