TIANDIXINGHUO XH-150mm displacement test device to detect displacement pull-out

XH-150mm

Displacement test device

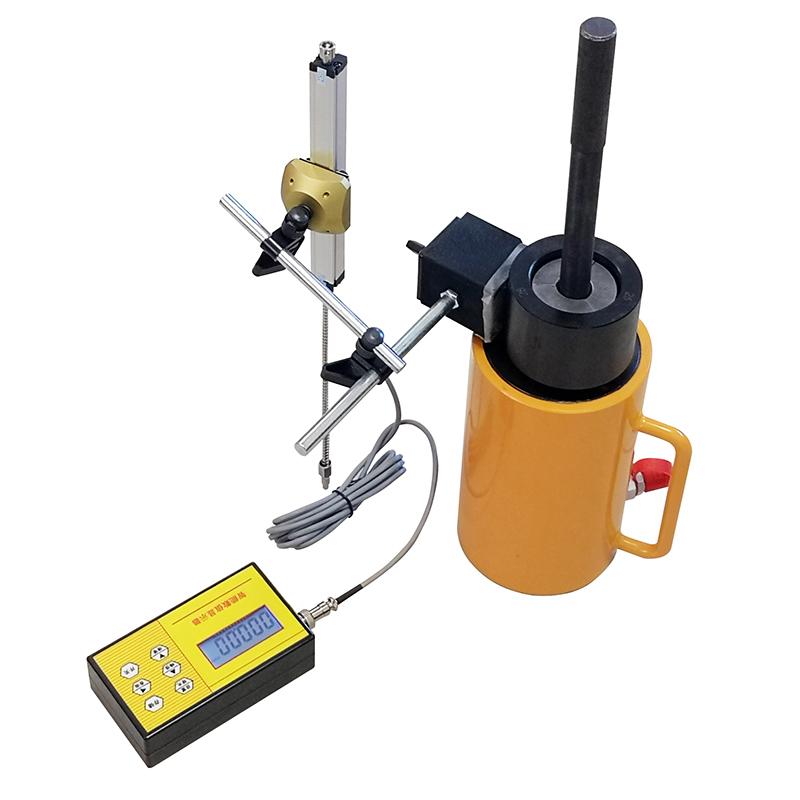

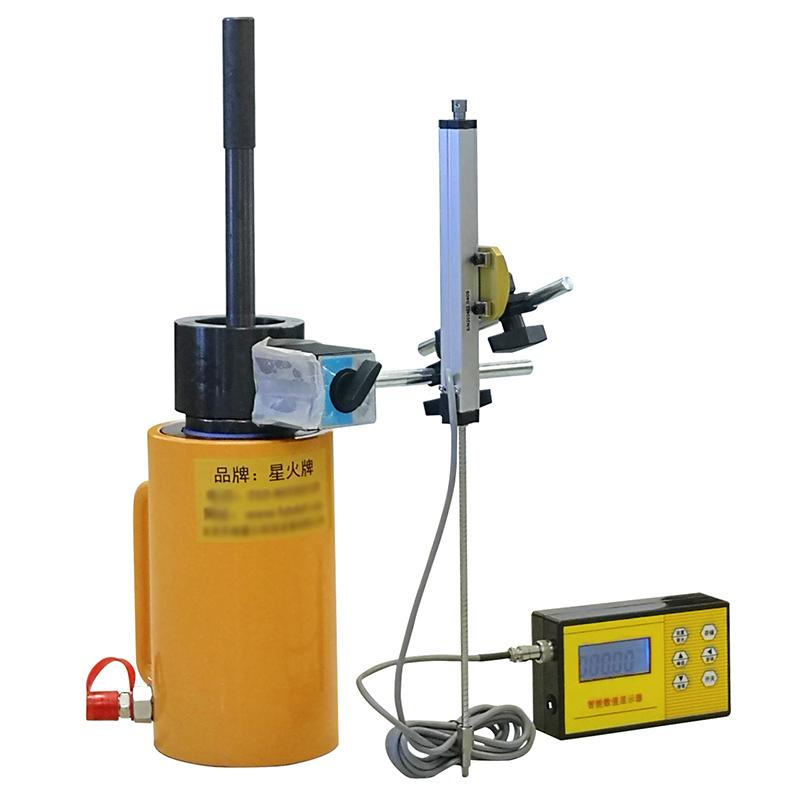

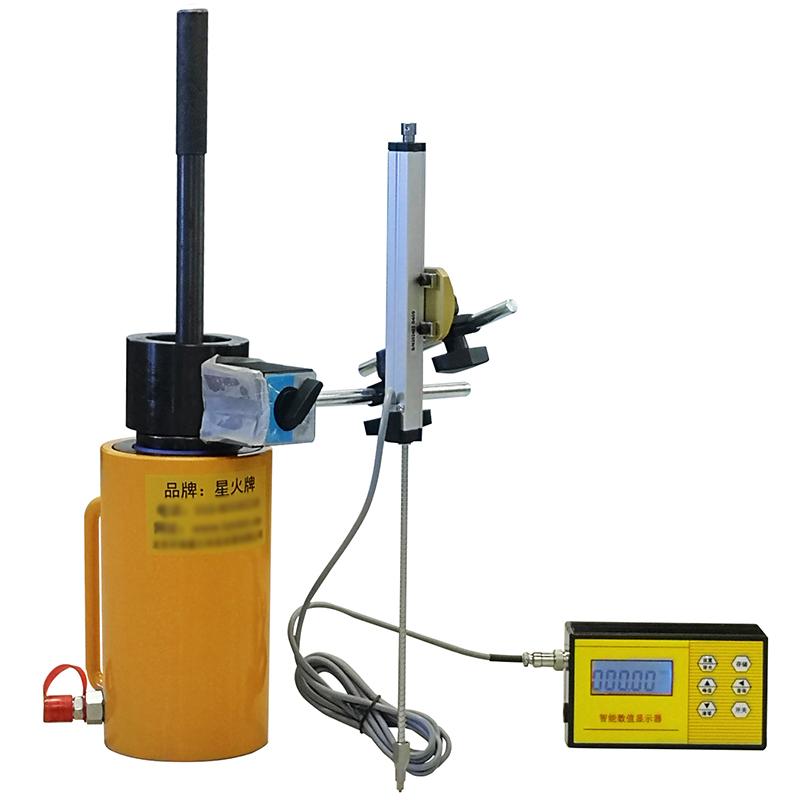

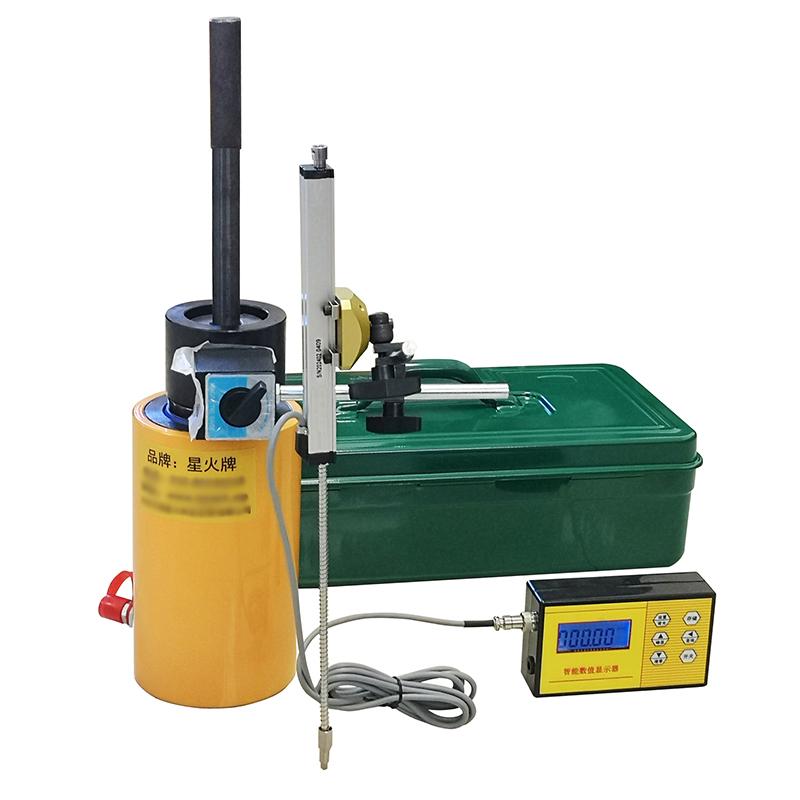

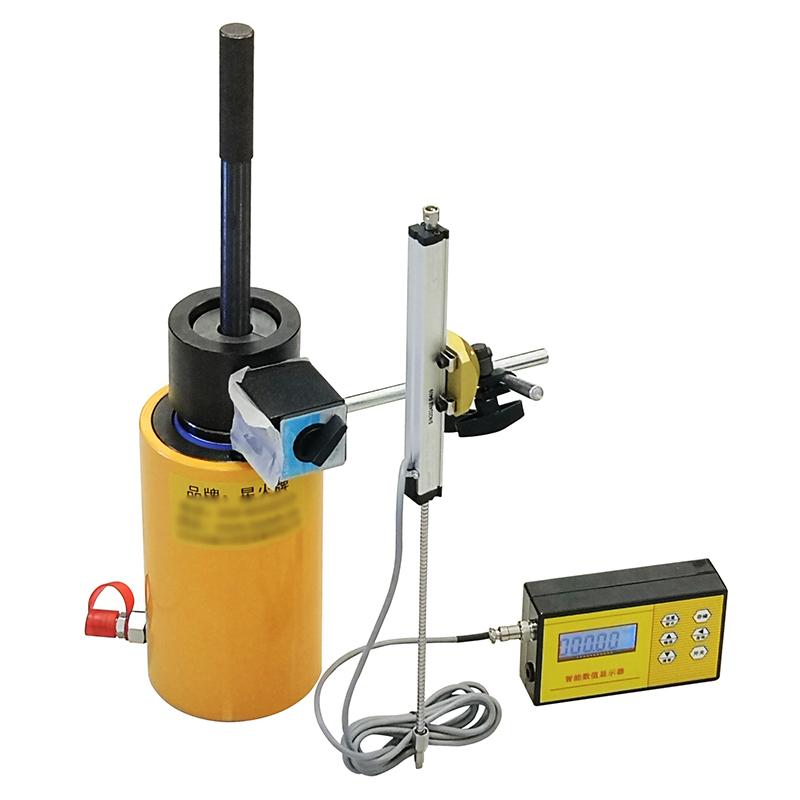

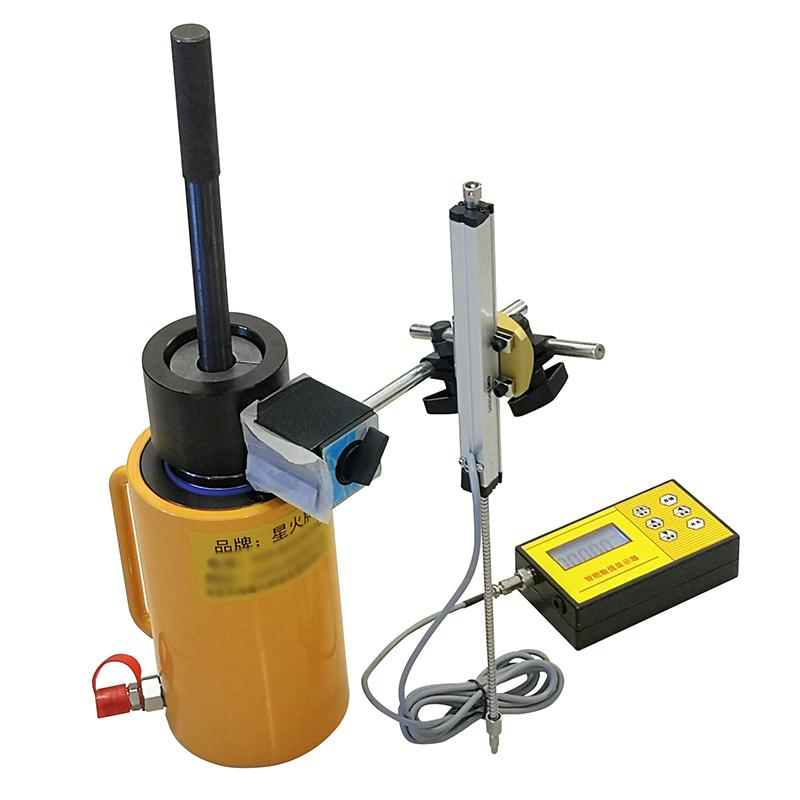

The displacement value range is 150mm, equipped with a magnetic table seat and a charger, which can be conveniently connected with the cylinder piston, and can detect the displacement of the anchor rod and the anchor cable during the pulling test.

Overview

The XH-150mm displacement test device is newly developed and produced by Tiandi Xinghuo. The instrument can detect the displacement and pull-out amount of the anchor rod and anchor cable during the pull-out test, and can more accurately determine the comprehensive quality of the detected object. The Detector has a simple structure and is easy to use. It has been widely used in many construction units, engineering quality supervision and inspection centers (stations) and supervision units across the country, and is welcomed by the majority of engineering and technical personnel.

Structural characteristics and working principle

• The XH-150mm displacement test device is composed of a displacement sensor and an intelligent digital display table.

• At the same time, the instrument is equipped with a magnetic gauge base and a charger, which can be easily connected with the cylinder piston, and the power supply is a lithium battery, which can be used for up to 400h.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
