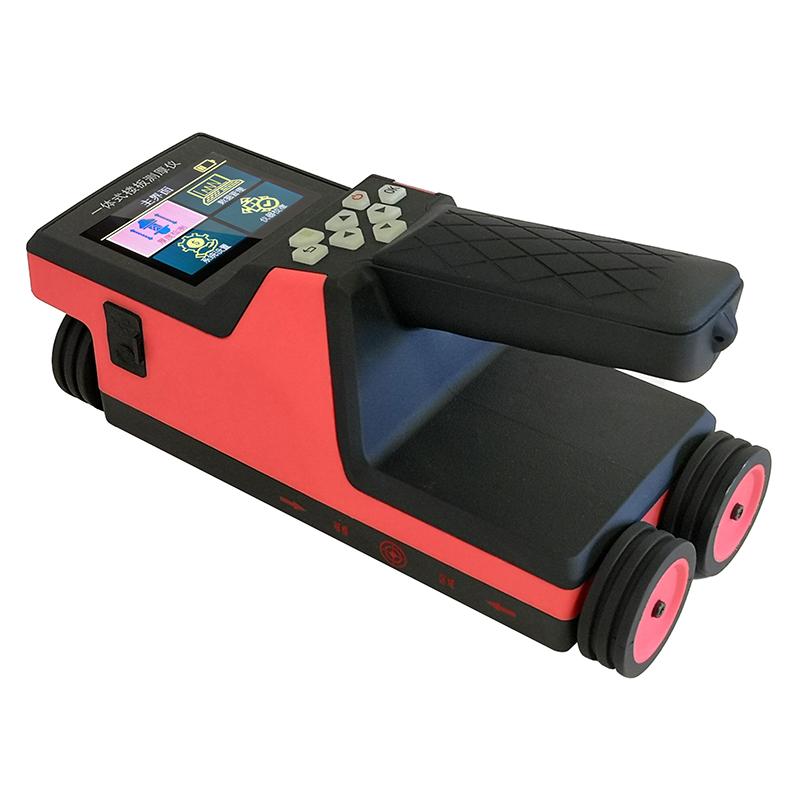

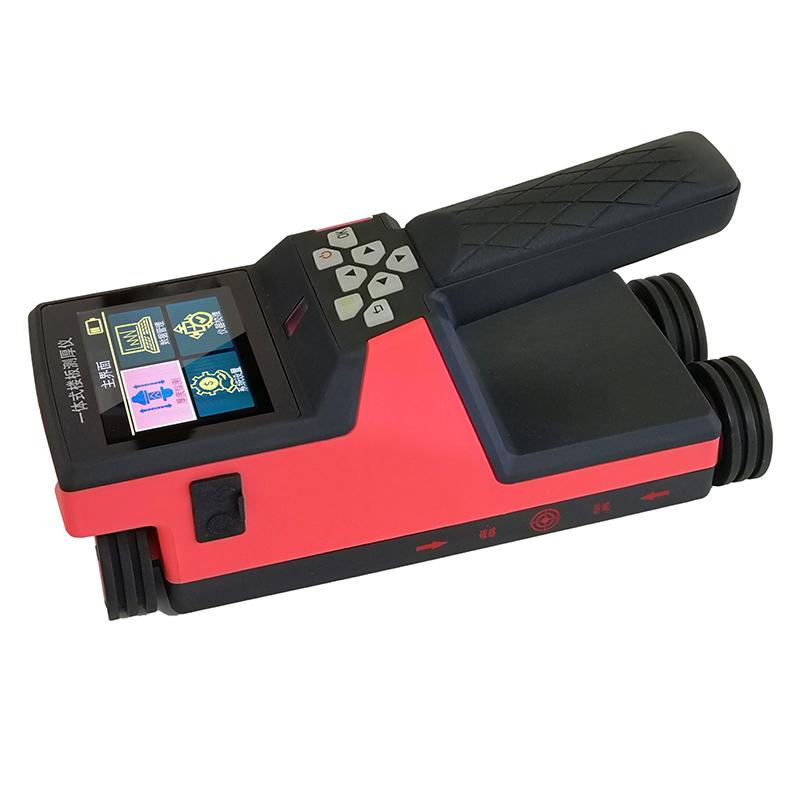

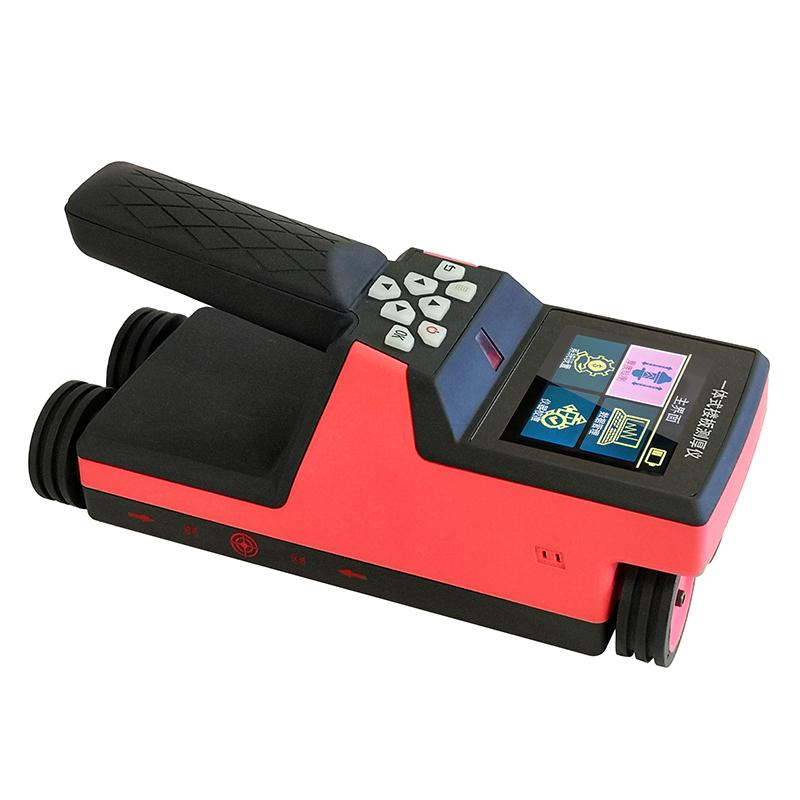

TIANDIXINGHUO XH-CH01 Integrated floor Thickness Gauge concrete Thickness Gauge 10~850mm

XH-CH01

Integrated floor Thickness Gauge

Thickness range of 10~850mm, integrated structure design, with real-time positioning function, with automatic environment error correction function, equipped with computer software for Data analysis.

Application

Floor thickness Detector (all-in-one machine) is a portable,It is suitable for non-destructive testing methods on concrete or other ferromagnetsInstruments for measuring the thickness of the medium; When used, launch probesThe head and receiving probes are placed on opposite test surfaces of the rack, respectively, transmits and receives electromagnetic signals, and the instrument receives them according to the received, which measures the thickness of the floor slab.

Apply standards

GB50204-2015 Code for Acceptance of Construction Quality of Concrete Structure Engineering

JJF 1224-2009

Features

1. Adopt integrated design, 3.5-inch large-screen color LCD；

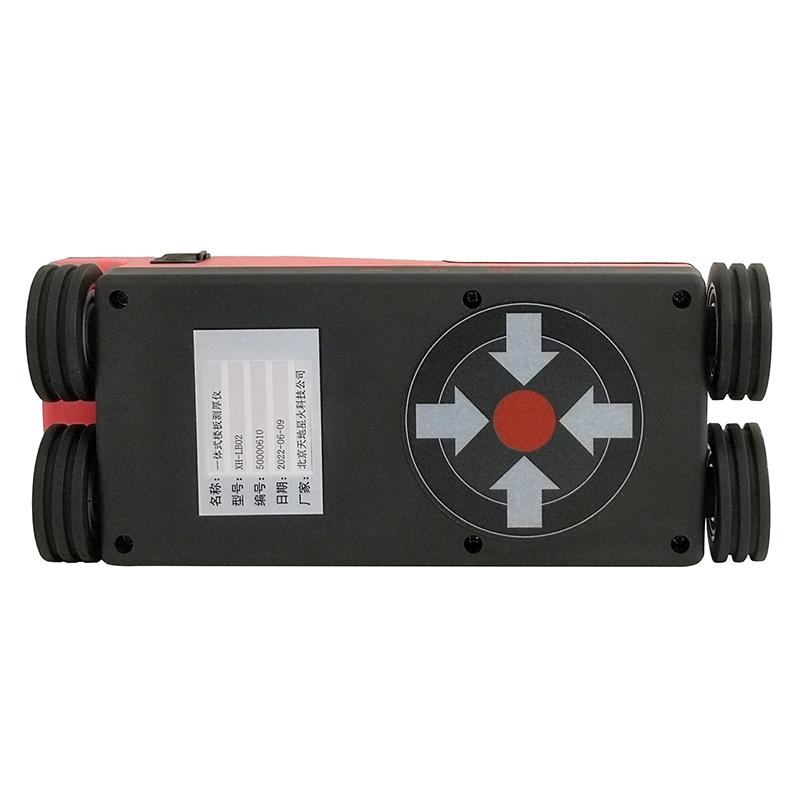

2. Real-time positioning function, the direction of the arrow indicates the position of the launch probe, and the test process is simple;

3. Wide range of measurement thickness and high accuracy;

4. The built has been stored, and it can continue to be detected;

5. TF card storage, making storage and transmission more convenient and fast;

6. It can correct the deviation caused by the surrounding environment of the instrument;

7. Special computer software for analysis, which can quickly generate test reports;

8. The integrated design of the main engine is simple to operate and easy to carry;

9. Real-time display of measured values, automatic locking of the real thickness;

10. Support instrument calibration and effectively solve the thickness deviation affected by environmental factors;

12. The measurement point data, average value and construction parameters are displayed on the same screen;

13. 3 layers of data management of engineering, components and data, with clear structure and convenient operation.

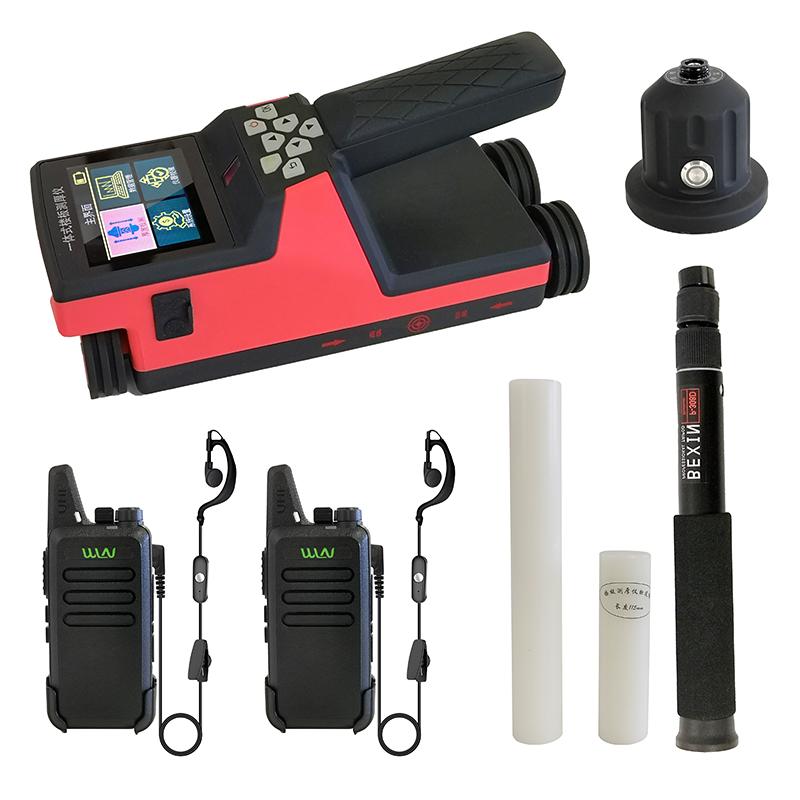

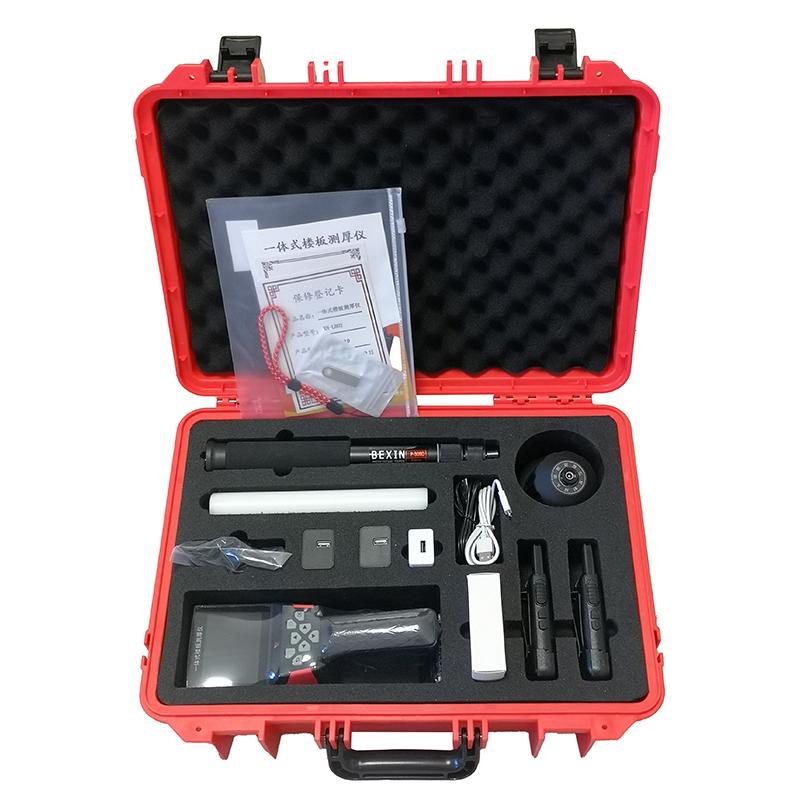

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
