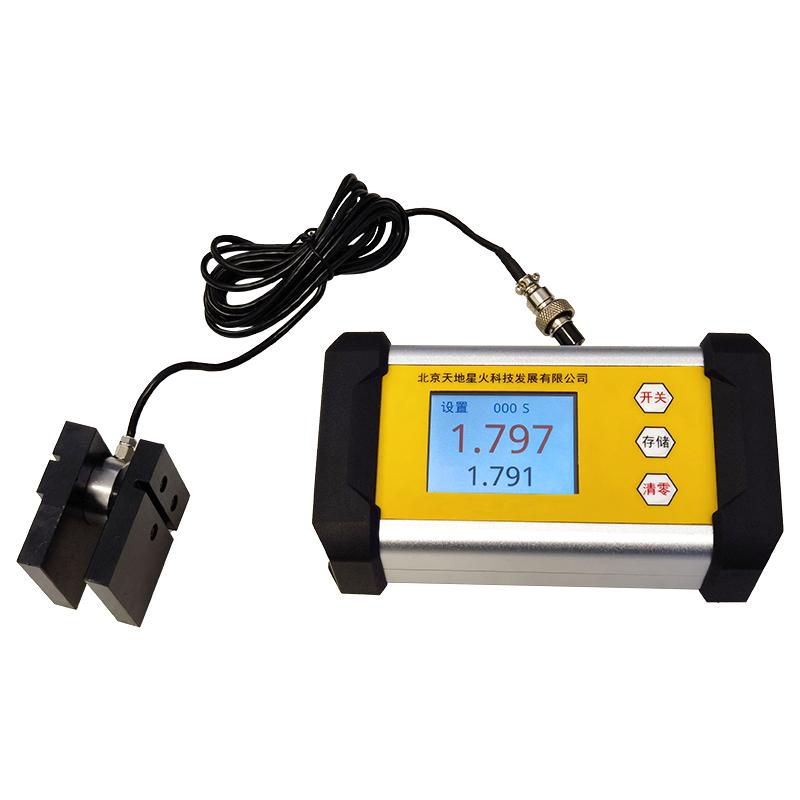

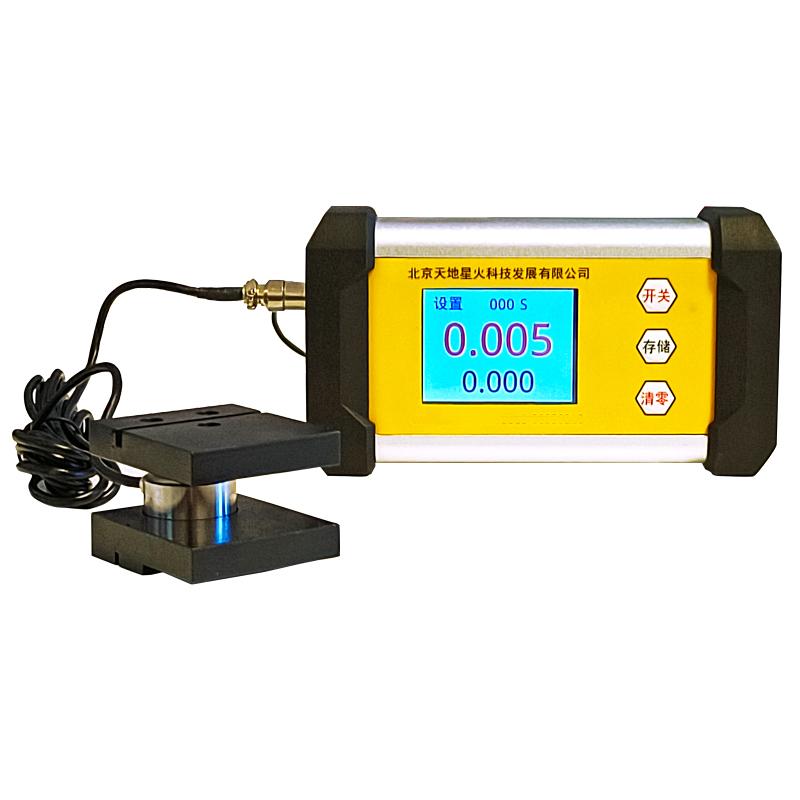

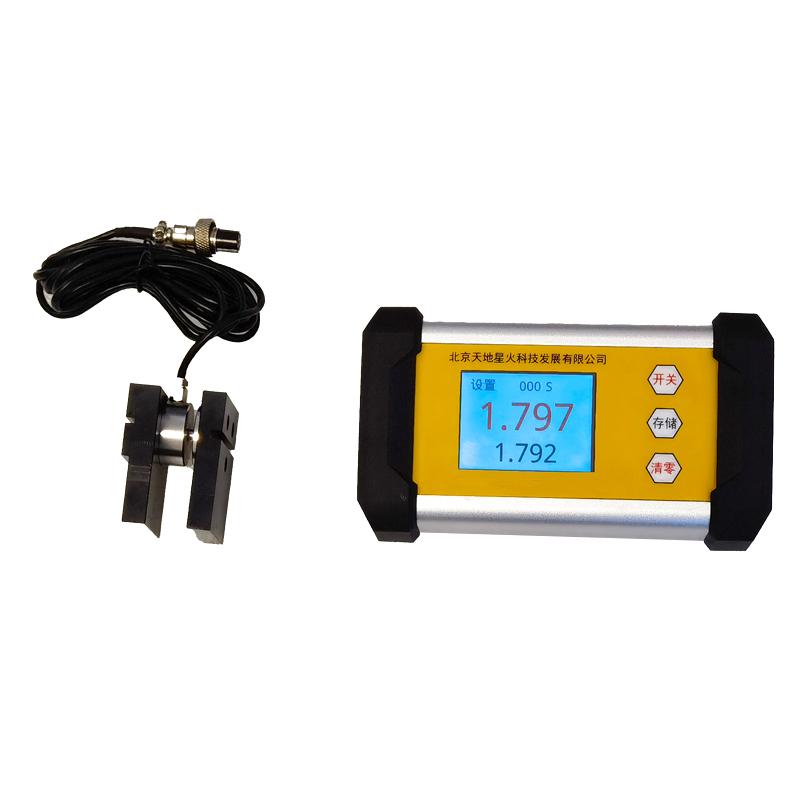

TIANDIXINGHUO XH-CQBD mortar strength calibrator, load range 40~1500N

XH-CQBD

Mortar strength calibrator

Color touch screen, load range 40-1500N, error of indication +/- 1%, can display force value-time Linear dispersion, data automatic storage, can store 10,000 pieces of data.

Uses and characteristics

The mortar strength calibrator developed and produced by Tiandi Xinghuo is a calibration instrument used with the mortar disc shear instrument.

The equipment is composed of intelligent numerical displays, high-precision sensors and supporting tooling. Meet the requirements of GB/T50315-2011 "Technical Standard for On-site Testing of Masonry Engineering".

1. 240*320 color touch screen

2. The detection process is automatically stored

3. The memory card stores the data, which is stored in EXCEl format, and the data can be viewed online on the computer

4. Force-time curve display

5. Large-capacity memory card, which can store 10,000 pieces of data.

6. Data is stored automatically, and 1 data is stored in 0.5S.

7. The brightness of the screen is adjustable

8. Automatic shutdown can be set

9. Switch between Chinese and English display

10. Two display interfaces (data interface, curve interface)

11. Engineering plastic packaging box, rainproof, dustproof and impact-proof.

Operating Principle

The working principle of the mortar strength calibrator is: when the mortar sheet shear meter shears the mortar, a pressure is generated, and the force is converted into a digital signal through a high-precision pressure sensor and displayed by the intelligent display. In this way, it is used to determine whether the detection value of the mortar disc shear meter is accurate.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
