TIANDIXINGHUO XHCQ Mortar Strength Mortar Sheet Shearing Tester 1400N
SE
XHCQ
TianDiXingHuo XHCQ Mortar strength mortar sheet shearing instrumentSPEC
TianDiXingHuo XHCQ Mortar strength mortar sheet shearing instrumentDetails
TianDiXingHuo XHCQ Mortar strength mortar sheet shearing instrumentPacking list
- SKU
- NB048056
- Strength gauge maximum shear force
- 1400N
- Upper and lower blade edge thickness
- 1.8mm±0.02mm
- Upper and lower blade center spacing
- 2.2mm±0.05mm
- Blade travel
- >30mm
- Weight
- 13.5kg
- resolution
- 0.1N
- error of indication
- ±1%
- Power Supply
- Rechargeable lithium battery
- Operating current
- ≤10mA
Purpose and structure
XHCQ mortar strength Tester is a new type of testing instrument developed by Tiandi Xinghuo, which is suitable for estimating the strength of masonry mortar in sintered ordinary bricks or sintered porous brick masonry.

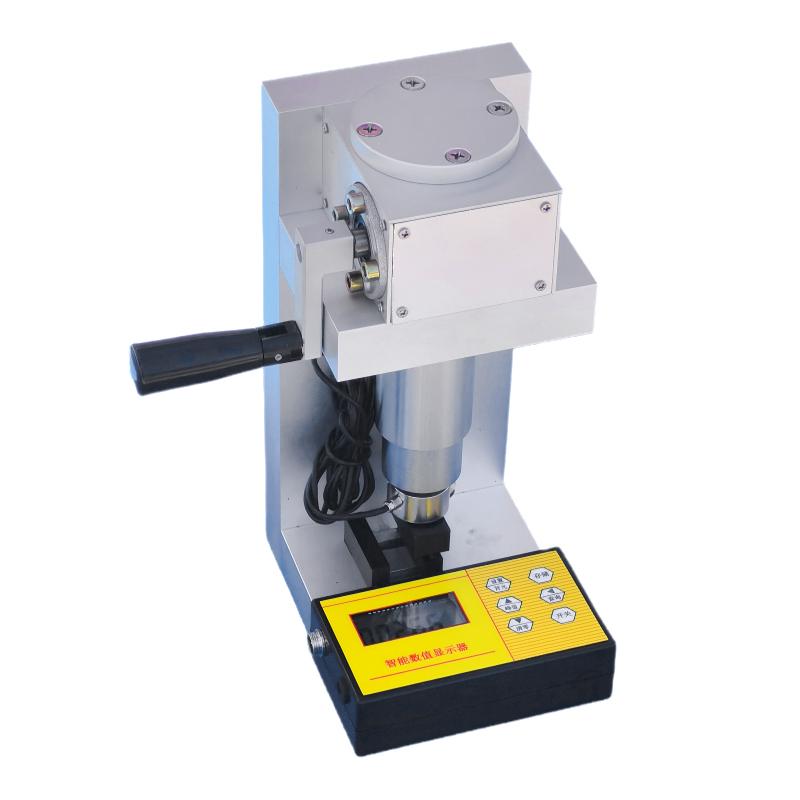

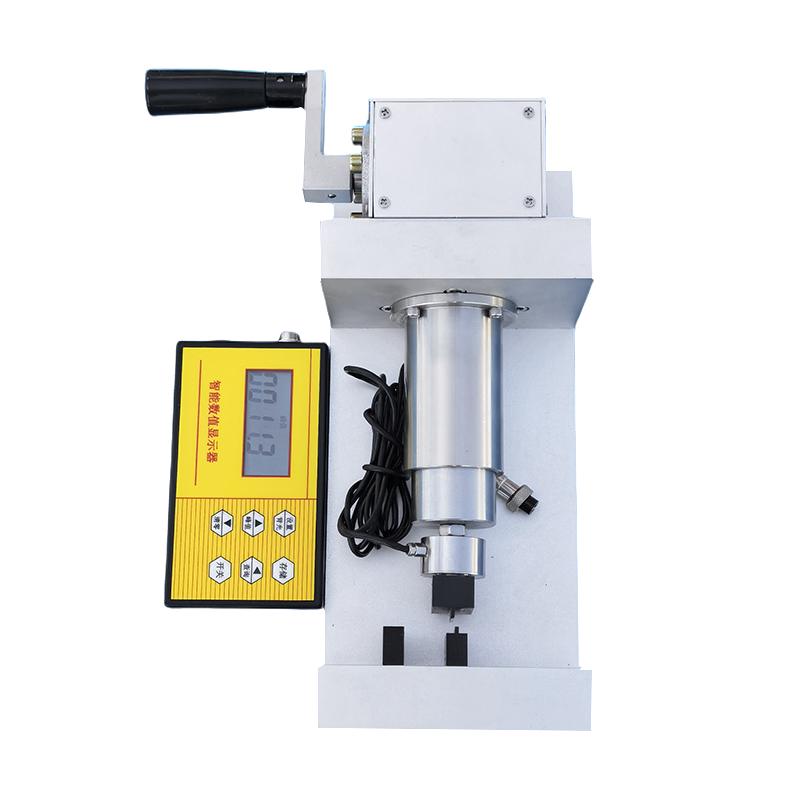

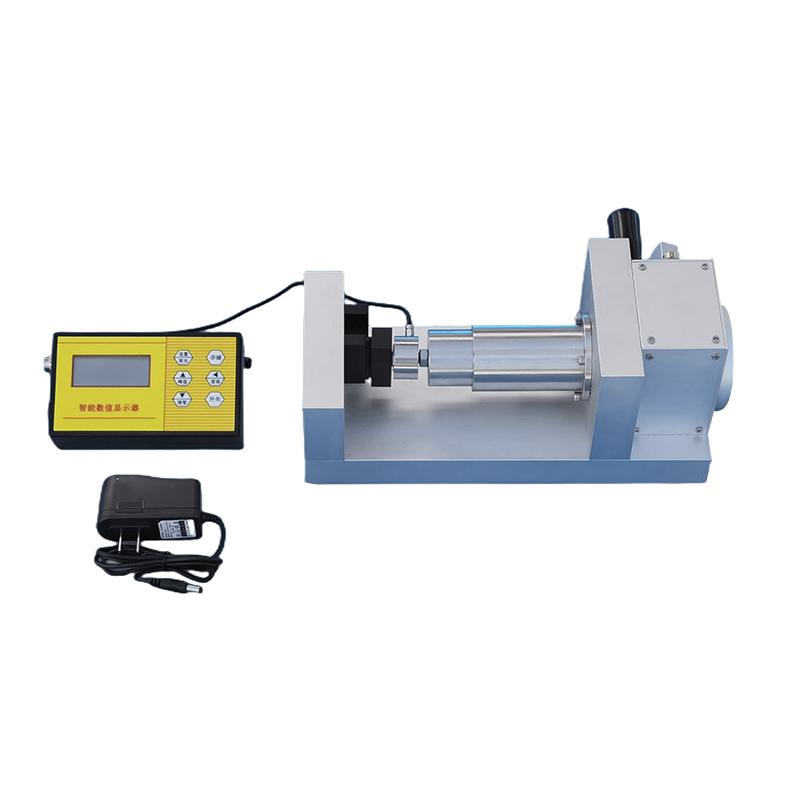

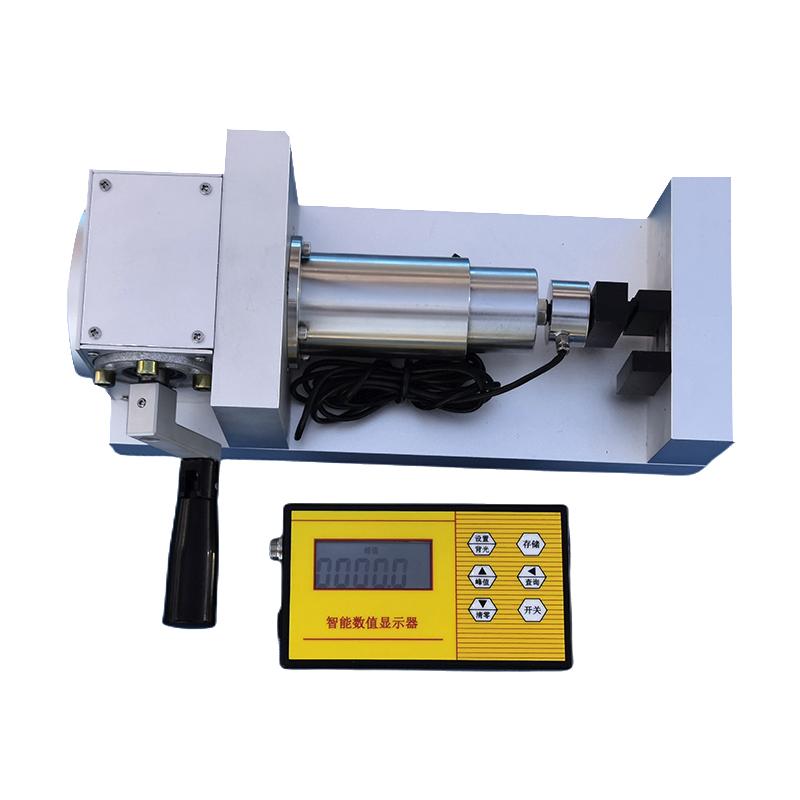

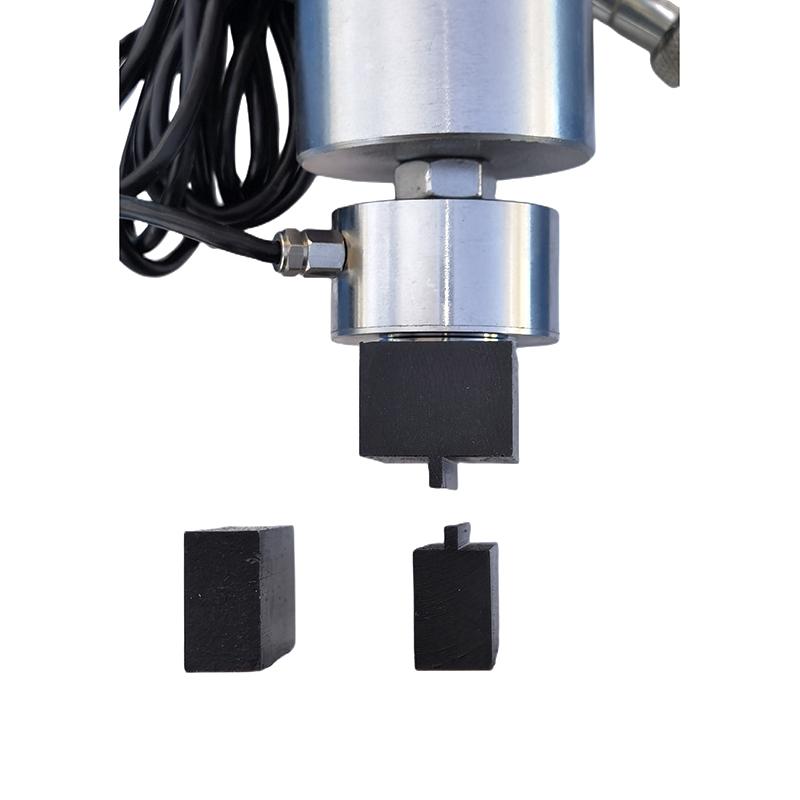

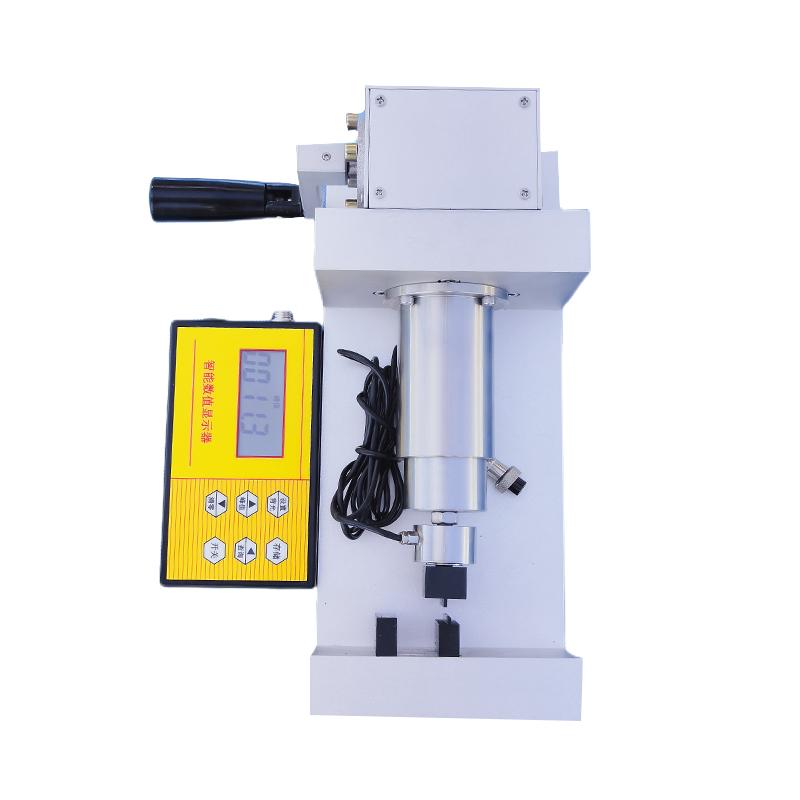

The strength gauge is composed of a base frame, an upper blade, a lower blade, a steel bar, a digital pressure gauge and other parts. The strength gauge has the characteristics of novel structure, stable operation, light weight, simple and fast, and high accuracy.
Features
It has the function of data storage and data query;
It has the function of peak protection and normal measurement conversion;
It has the function of zeroing the current value;
It has the function of range setting and calibration;
High measurement accuracy: the instrument adopts a highly anti-interference 16-bit A/D analog-to-digital conversion circuit.
