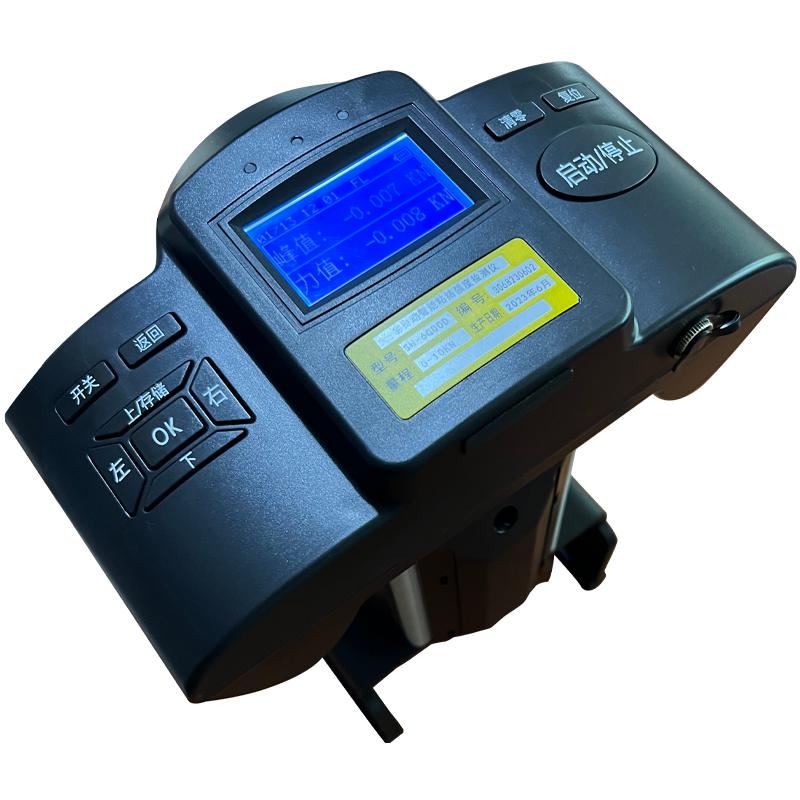

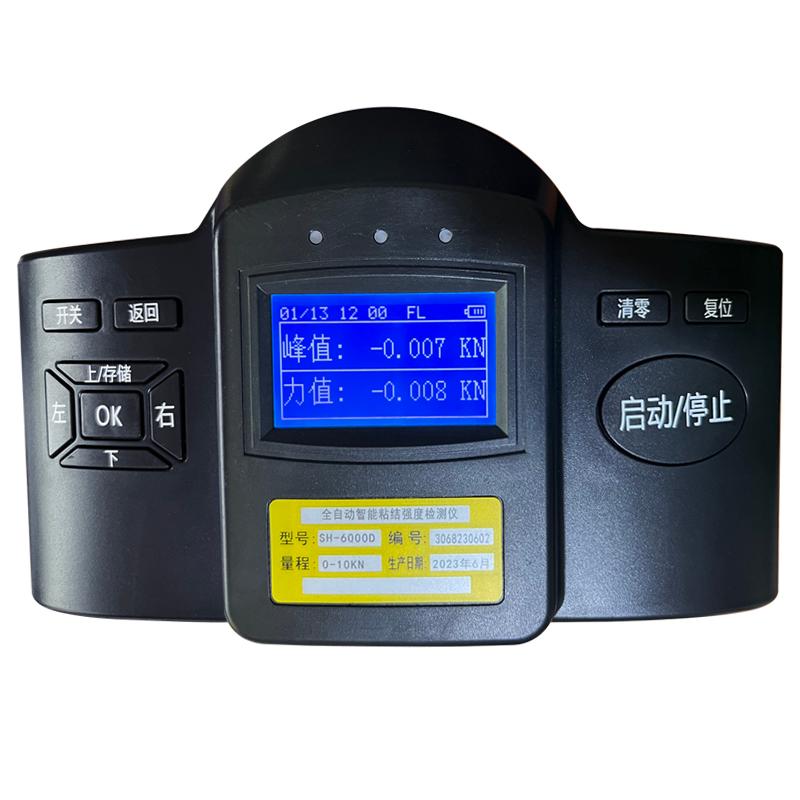

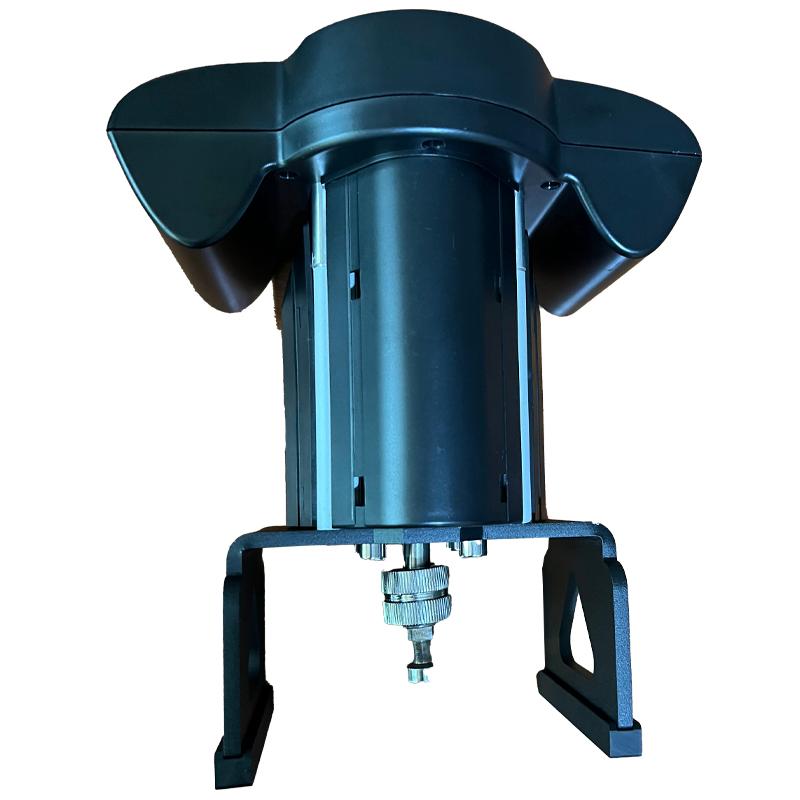

TIANDIXINGHUO XH-D10 Electric Bonding strength Tester 0~10KN

XH-D10

Bonding strength Tester

Measurement range 0~10KN, measurement stroke 20mm, using high-precision "S" type Sensors, dot matrix LCD display, three operation modes optional, one-click to complete the detection, you can directly enter the test block area.

Overview:

XH-D10 automatic intelligent adhesive strength Tester is developed and produced by the company, the instrument is suitable for construction engineering fixed thermal insulation material rivet pulling force, wall insulation material bonding strength, exterior wall facing brick bonding strength, carbon fiber bonding strength, mortar bonding strength, pull-off method to detect concrete strength and various plates, concrete surface coatings and other materials of the bonding strength testing

Standards:

JGJ144-2019 "Technical Standard for External Thermal Insulation Engineering"

JG158-2013

JG149-2006

JGJ110-2017 "Inspection Standard for Strong Adhesion of Facing Bricks in Construction Engineering"

JGJ126-2015 "Regulations for Construction and Acceptance of Exterior Wall Facing Brick Engineering"

Features

1. Integrated design, simple and convenient operation

2. Using high-precision "S" type sensor, the accuracy can reach 0.5%;

3. The fuselage is made of aluminum alloy and engineering plastics, which is small in size and light in weight;

4. The instrument is displayed on a dot matrix LCD screen;

5. Pull off automatic shutdown function;

6. Three operation modes are optional, one-key detection can be completed without human intervention;

7. A variety of test block specifications are optional, and the force value (KN) and strength value (Mpa) are displayed on the same screen;

8. The area of the test block can be directly entered, and the force value (KN) and strength value (Mpa) can be displayed on the same screen;

9. The target value, load holding time and other related parameters can be set freely, and the automatic reset is completed by detection;

10. The peak value and real-time value are displayed on the same screen;

11. Data can be recorded manually and automatically, and the automatic recording conditions are optional;

12. Low-power design, automatic shutdown without operation.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
