HUINUO NDJ-5ST Rotational Viscometer 3 mode measurement with temperature probe 100,000 cP

SE
Sensitivity, suitable for Newtonian and non-Newtonian liquids, supports a variety of Measurement modes and full models of temperature probes, with USB and RS232 interfaces, convenient data recording, reliable measurement results.
$405.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiNuo NDJ-5ST Rotational ViscometerSPEC

HuiNuo NDJ-5ST Rotational ViscometerDetails

HuiNuo NDJ-5ST Rotational ViscometerPacking list

SKU
NB048087
Measurement range
1~100000mPa.s
Rotation speed
6/12/30/60rpm
Rotor specification
Standard 1/2/3/No. 4 (No. 0 rotation is optional, low viscosity samples can be measured)
Measurement mode
Fast, timed, automatic scanning
Temperature display
Standard temperature probe
measurement error
+/- 1% FS (Liquid)
Measurement reproducibility
+/- 0.5% FS (Liquid)
Display resolution
0.01mPa.s
System function
General measurement, Linear dispersion measurement, recording, viscosity conversion, printing
language
Switch between Chinese and English (optional English)
Measurement record
50 articles
Interface
USB、RS232
Operating Environment
0 ℃~ 40 ℃, Humidity 20%~ 80% in an air environment without condensate
Input power
100~240v，50~60HZ
Lifting stroke
250mm
Product size
280×260×395mm
Net Weight of product
About 5kg
NDJ-5ST
Rotational Viscometer
Sensitivity, suitable for Newtonian and non-Newtonian liquids, supports a variety of Measurement modes and full models of temperature probes, with USB and RS232 interfaces, convenient data recording, reliable measurement results.

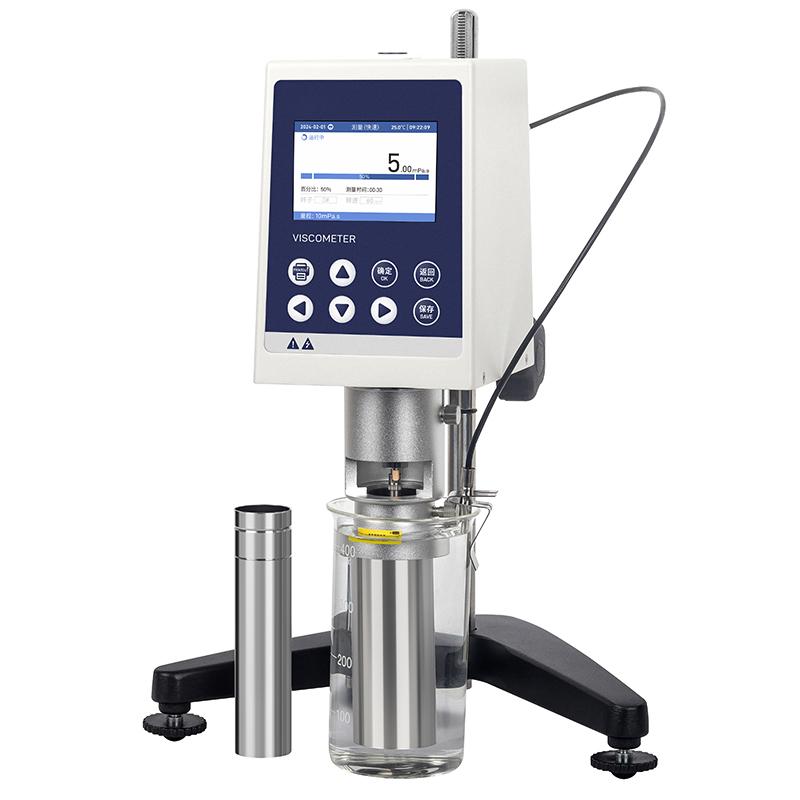

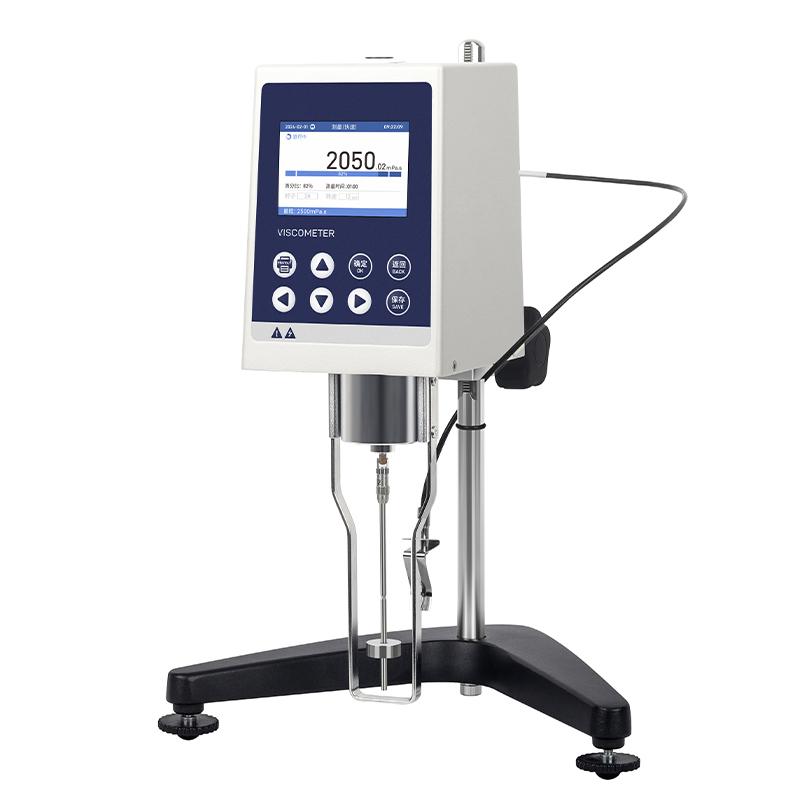

HUINUO NDJ-5ST Rotational Viscometer 3 mode measurement with temperature probe 100,000 cP Picture

Features

  • NDJ-5ST/8ST Digital Rotational Viscometer is an upgraded product of Digital Rotational Viscometer.

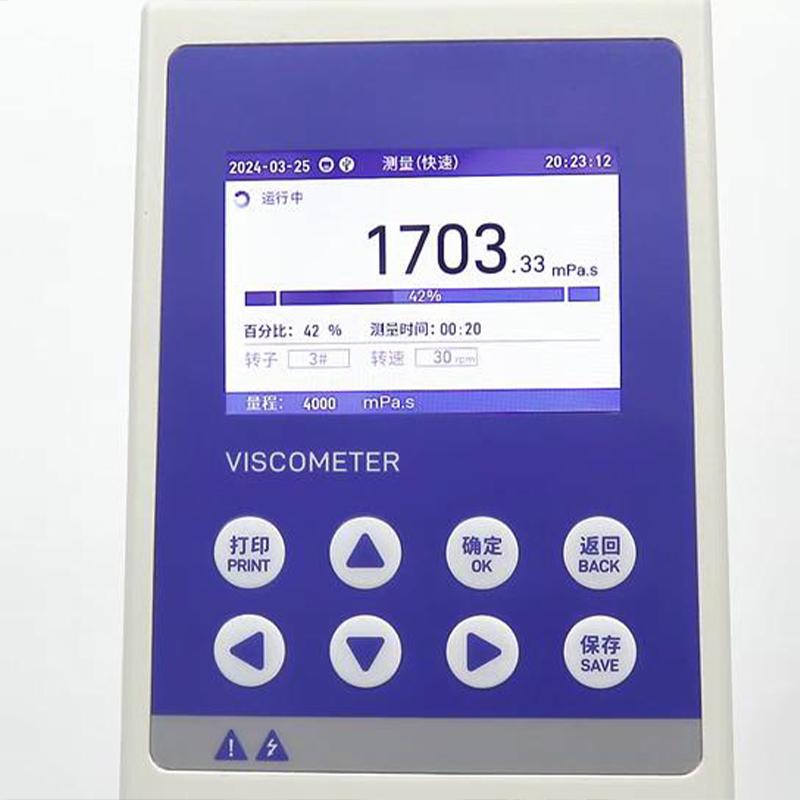

  • The instrument adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and the data acquisition is stable. The display uses a high-resolution 3.5-inch IPS display with intuitive data display, and the color screen can directly display viscosity, rotational speed, temperature, percentage torque, rotor number and the maximum measurable viscosity of the selected rotor number at the current rotational speed.

  • The instrument has high measurement sensitivity and reliable test results, and is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids.

  • It is widely used in viscosity measurement of various fluids such as grease, paint, plastic, medicine, food, coating, glue, adhesive, resin, chemical raw materials, etc.

  • A wide range of measurement modes are available, such as timed measurements, automatic scanning, and temperature probes are standard on all models


Series selection

ModelMeasuring rangerotorrotate speedTemperature probesMeasurement mode
NDJ-5S1-100000mPa.sNo. 1.2.3.46/12/30/60rpm/1 kind
NDJ-8S1-2000000mPa.sNo. 1.2.3.40.3/0.6/1.5/3/6/12/30/60rpm/1 kind
NDJ-9S1-100000mPa.sNo. 1.2.3.46/12/30/60rpmIncludes PT1000A with probe holder1 kind
NDJ-5ST1-100000mPa.sNo. 1.2.3.46/12/30/60rpmIncludes PT1000A with probe holder3 types
NDJ-8ST1-2000000mPa.sNo. 1.2.3.40.3/0.6/1.5/3/6/12/30/60rpmIncludes PT1000A with probe holder3 types



FAQ
QI want to measure the viscosity of paints, which rotational viscometer is suitable?
A NDJ-5ST can be selected, its Measurement range of 1-100,000 mPa.s fully covers the viscosity of paints, standard temperature probe can monitor the impact of paints temperature on viscosity, 3 Measurement modes can be flexibly selected timing or automatic scanning to ensure accurate and reliable data.
