HUINUO NDJ-8ST Digital Rotational Viscometer 3 mode measurement with temperature probe 2 million cP
SEHigh-resolution color display, Wide Measurement range and High Sensitivity, Support multiple Measurement modes and automatic temperature compensation, Equipped with USB and RS232 Interface for efficient data transmission and recording.
$441.00/set
PromotionLoading...
Coupon
Model：
NDJ-8ST
Similar products
-
HuiNuo NDJ-8S + 0 #Laboratory Rotational Viscometer Viscosity Detector 10~2 million CP$ 467.00SE -
NIRUN NDJ-8ST Touch Screen Viscometer Measurement range 1-2 million mPa.s$ 1005.00SE -
NIRUN NDJ-8ST Touchscreen Viscometer with RTD temperature sensor$ 1033.00SE -
HuiNuo NDJ-8S Digital Rotational Viscometer Rotor Viscometer 2 million CP$ 405.00SE
HuiNuo NDJ-8ST Rotational ViscometerSPEC
HuiNuo NDJ-8ST Rotational ViscometerDetails
HuiNuo NDJ-8ST Rotational ViscometerPacking list
- SKU
- NB048088
- Measurement range
- 1~2000000mPa.s
- Rotation speed
- 0.3/0.6/1.2/3 6/12/30/60rpm
- Rotor specification
- Standard 1/2/3/No. 4 (No. 0 rotation is optional, low viscosity samples can be measured)
- Measurement mode
- Fast, timed, automatic scanning
- Temperature display
- Standard temperature probe
- measurement error
- +/- 1% FS (Liquid)
- Measurement reproducibility
- +/- 0.5% FS (Liquid)
- Display resolution
- 0.01mPa.s
- System function
- General measurement, Linear dispersion measurement, recording, viscosity conversion, printing
- language
- Switch between Chinese and English (optional English)
- Measurement record
- 50 articles
- Interface
- USB、RS232
- Operating Environment
- 0 ℃~ 40 ℃, Humidity 20%~ 80% in an air environment without condensate
- Input power
- 100~240v，50~60HZ
- Lifting stroke
- 250mm
- Product size
- 280*260*395mm
- Net Weight of product
- About 5kg
NDJ-8ST
Rotational Viscometer
High-resolution color display, Wide Measurement range and High Sensitivity, Support multiple Measurement modes and automatic temperature compensation, Equipped with USB and RS232 Interface for efficient data transmission and recording.
Features
NDJ-5ST/8ST Digital Rotational Viscometer is an upgraded product of Digital Rotational Viscometer.

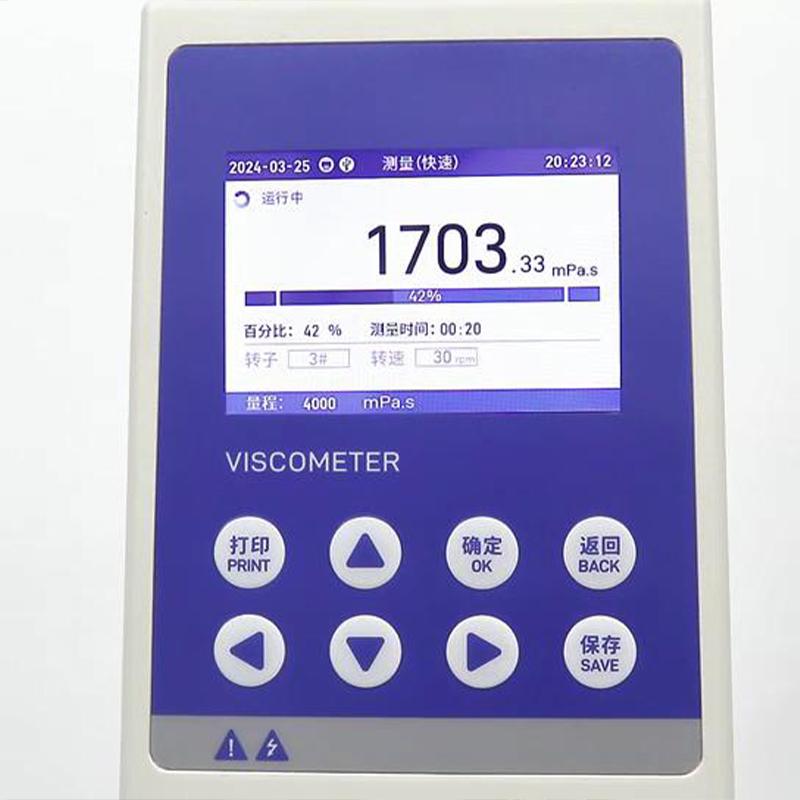

The instrument adopts reliable mechanical design technology, manufacturing process and microcomputer control technology, and the data acquisition is stable. The display uses a high-resolution 3.5-inch IPS display with intuitive data display, and the color screen can directly display viscosity, rotational speed, temperature, percentage torque, rotor number and the maximum measurable viscosity of the selected rotor number at the current rotational speed.
The instrument has high measurement sensitivity and reliable test results, and is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids.
It is widely used in viscosity measurement of various fluids such as grease, paint, plastic, medicine, food, coating, glue, adhesive, resin, chemical raw materials, etc.
A wide range of measurement modes are available, such as timed measurements, automatic scanning, and temperature probes are standard on all models.
Series selection
| Model | Measuring range | rotor | rotate speed | Temperature probes | Measurement mode |
| NDJ-5S | 1-100000mPa.s | No. 1.2.3.4 | 6/12/30/60rpm | / | 1 kind |
| NDJ-8S | 1-2000000mPa.s | No. 1.2.3.4 | 0.3/0.6/1.5/3/6/12/30/60rpm | / | 1 kind |
| NDJ-9S | 1-100000mPa.s | No. 1.2.3.4 | 6/12/30/60rpm | Includes PT1000A with probe holder | 1 kind |
| NDJ-5ST | 1-100000mPa.s | No. 1.2.3.4 | 6/12/30/60rpm | Includes PT1000A with probe holder | 3 types |
| NDJ-8ST | 1-2000000mPa.s | No. 1.2.3.4 | 0.3/0.6/1.5/3/6/12/30/60rpm | Includes PT1000A with probe holder | 3 types |
FAQ
QI want to measure the viscosity of paints, which rotational viscometer is suitable?
A
NDJ-8ST is recommended. Because paints belong to non-newtonian fluids, the viscosity range is usually in the thousands to hundreds of thousands of mPa.s, the Measurement range of NDJ-8ST is fully covered by 1-2 million mPa.s, and it comes standard with a temperature probe, which can monitor the effect of temperature on the viscosity of paints in real time, and the measurement results are more accurate.
QOur laboratory needs to measure the viscosity change under different Rotation speeds. Which model should I choose?
A
It is recommended to choose NDJ-8ST. It has an 8-speed Rotation speed option, from 0.3 to 60rpm, which can fully display the viscosity change of the fluid under different shear rates. Linear dispersion. It is suitable for studying the rheological characteristics of non-newtonian fluids such as Adhesive and Resin to help you understand the material performance.
QI want to measure the viscosity of paints, which Viscometer should I choose?
A
Recommended NDJ-8ST, Measurement range 1-2 million mPa.s, paints viscosity changes widely, this coverage. Also with temperature probe, paints viscosity is affected by temperature, temperature measurement can ensure accurate results.
QAdhesive viscosity is high, which model should I choose?
A
NDJ-8ST is recommended, with a maximum range of 2 million mPa.s. Adhesive is usually high viscosity. 8 Rotation speed gears are optional to simulate the viscosity performance at different construction speeds. Standard temperature probe can also monitor the curing process.
QExcuse me, is the E-type Viscometer a cone-plate viscometer?
A
The E-type rotational viscometer determines viscosity by measuring the shear force of the liquid between the cone and the circular plate of the swirl/spin. The cone-plate viscometer (often referred to as the "cone-plate viscometer") uses the gap between the cone and the circular plate to measure the viscosity of the liquid.
In short, although they are both used for viscosity measurement, they work on different principles and designs. The E-type Viscometer is a swirl/spin measuring instrument, while the cone-plate viscometer measures viscosity by shear force.
Standard
