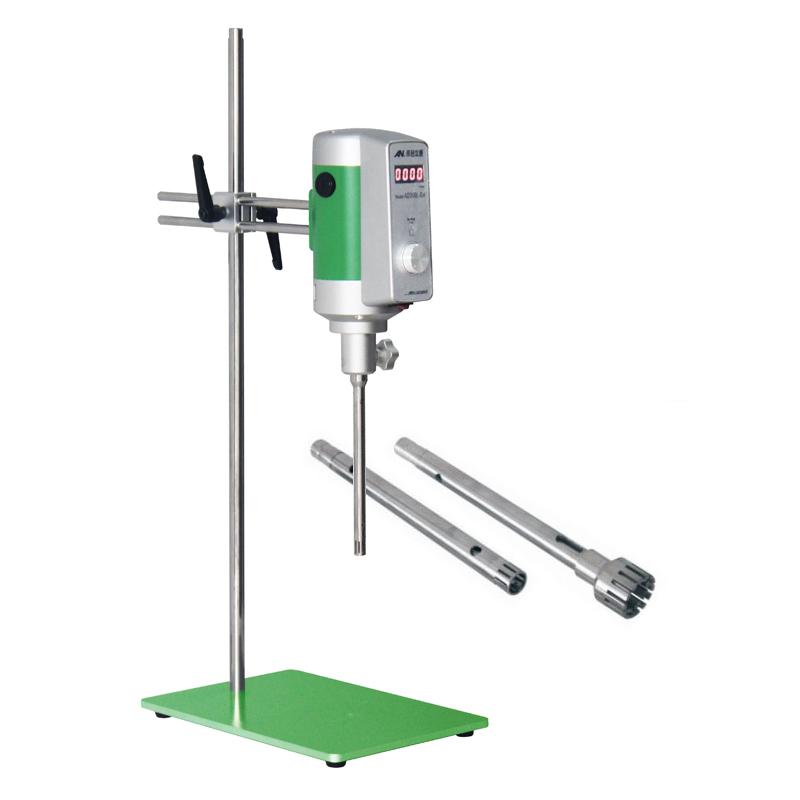

The AD300L-SH series laboratory dispersion and homogenizer is driven by a compact series miniature high-speed motor, which is suitable for the stirring and mixing of low to high viscosity liquids in the laboratory, dispersing homogeneous granular materials in liquid media, tissue cell disruption, etc. The machine is composed of a high-speed motor, a sub-homogeneous working head and a speed controller. The drive host is made of high-quality die-cast aluminum alloy as the body, the running state is stable, and the working head is refined with high-quality stainless steel, and the experimental application area is wide; The operating speed is controlled by the microprocessor, which can immediately and effectively compensate for the speed changes caused by loading and power supply Voltage fluctuations, and the constant speed is reliable. Built-in soft start and automatic overload protection to ensure the safety of continuous operation of the experiment with full load for a long time; The stepless adjustment of the speed can meet the adjustment of the stirring speed at any time in the experiment; The digital display speed is intuitive, which provides convenience for experimental data collection; Run the Timer Control function to ensure that the temporality of the experiment is effective and controllable.
| Specifications of the working head | 10G | 25G | 19G | 35G |
| Throughput [H2O] | 25~100ml | 80~5000ml | 45~1600ml | 150~13000ml |
| Stator diameter | 10mm | 25mm | 19mm | 35mm |
| Rotor diameter (mm) | 7.2mm | 19mm | 15mm | 28mm |
| Maximum speed allowed | 28000rpm | 18000rpm | 22000rpm | 15000rpm |
| Maximum circumferential speed | 10.5m/s | 17.9m/s | 17.2m/s | 21.9m/s |
| Head length | 182mm | 225mm | 220mm | 235mm |
| Immerse yourself in the liquid to a deep depth | 25~120mm | 50~165mm | 45~160mm | 60~175mm |
| The material comes into contact with some of the material | PTFE,SS304 | |||
| Maximum operating temperature | 120℃ | |||
| Sterilization method | Chemical wet process | |||
| Particle size of the suspension | 5~25μm | 10~50μm | ||
| The particle size of the floatation liquid | 1-10μm | |||
| Allowable ambient temperature | 5~40℃ | |||
