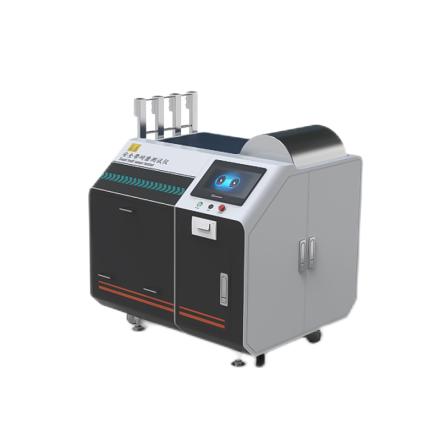

huitao HT-1103 Automobile seat belt webbing wear resistance performance testing machine Specifications
Search
Brand：huitao
Model：HT-1103
Name：Automobile seat belt webbing wear resistance performance testing machine
Specifications
| Control system | PLC |
| Operating interface | Color 7-inch touch screen, switch between Chinese and English |
| test stroke | 300±20mm |
| Ribbon test width | 108mm |
| Test speed | 30 times/+/- 2min |
| load | 3 groups each of 2.36 +/- 0.05kg and 1.5 +/- 0.05kg |
| hexagonal rod | 6.35±0.03 mm，radius 0.5±0.1 mm |
| Weight | According to the station selection Weight quantity 900 g +/- 60g, 4500N, 1800 g +/- 60g Miscellaneous Weight customization |
| roller | Φ400mm |
| Drive method | Motor driven |
| test fixture | 3 groups |
| simultaneously measurable | Three sets of samples |
| friction angle | 85±2° |
| Dimension | 1100×750×1000mm |
| Weight | About 160kg |
| Power Supply | AC220V 5A |
Packing list
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
