China

HUITAO HT-F817 Finished sole folding testing machine, national standard shoe bending testing machine

SE
Color 7-inch touch screen, 6 sets of stations, in line with GB/T 3903.1 standard, with the function of automatic shutdown according to preset flexion times, and the flexion angle can be adjusted by 80 degrees.
$7875.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

huitao HT-F817 Finished sole folding testing machineSPEC

huitao HT-F817 Finished sole folding testing machineDetails

huitao HT-F817 Finished sole folding testing machinePacking list

SKU
NB048294
Control system
PLC
Flexural angle
Adjustable limit of 80 degrees between 0 ° and 55 °
Flexing Frequency
100 beats per minute -300 range
Automatic shutdown
With automatic shutdown function according to preset flexion times
Blower
Yes.
steel shaft
5.5mmX40mm steel shaft is installed on the vertical line from the first toe of the test last to the axis of the bottom of the last
Fixture material
Aluminum and stainless steel fabrication
HT-F817
Finished sole folding testing machine
Color 7-inch touch screen, 6 sets of stations, in line with GB/T 3903.1 standard, with the function of automatic shutdown according to preset flexion times, and the flexion angle can be adjusted by 80 degrees.

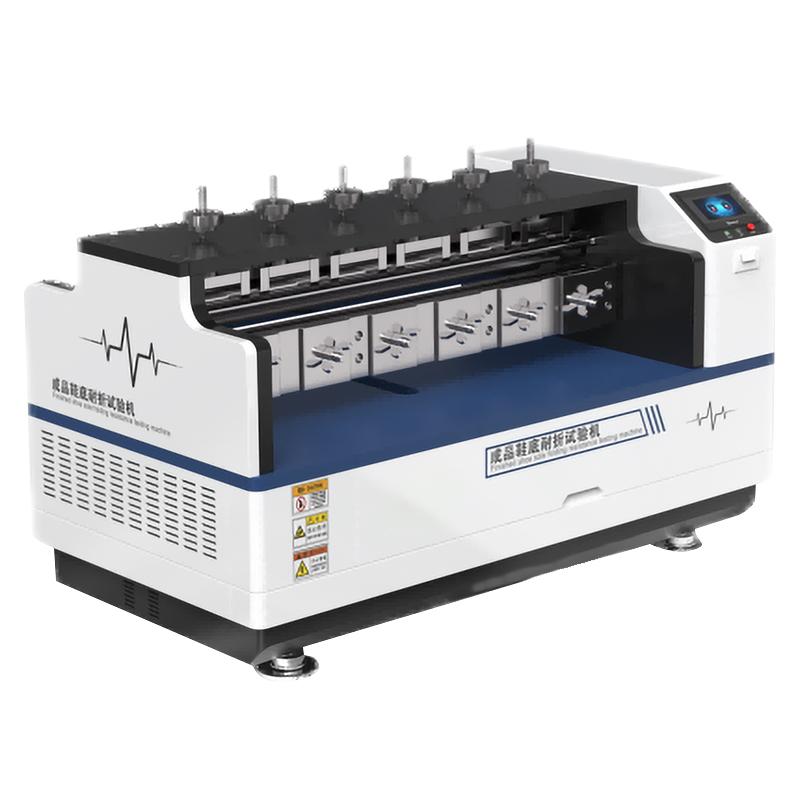

HUITAO HT-F817 Finished sole folding testing machine, national standard shoe bending testing machine Picture

Introduction

A finished sole bending Tester, often referred to as a flex Tester, is a device used to test the durability of a sole material during continuous bending. This test is a useful way to assess the fatigue, cracks and breakage that may occur during the use of the sole.

Meets standards

GB/T 3903.1

Key functions and features:

  • Comply with national standards: The equipment design and testing process are in line with national standards to ensure the reliability and validity of test results.

  • High degree of automation: Many modern testing machines are equipped with automated systems that allow for automatic loading, unloading, and data logging, reducing errors in manual operation.

  • Wide range of testing: It can be applied to various types of sole materials, including rubber, plastic, leather, etc., to meet the testing needs of different products.

  • Data analysis function: Integrated data analysis software, able to monitor the test process in real time, and generate detailed test reports, which is convenient for users to analyze and improve product design.

  • Rugged construction: Devices are often made of high-strength materials to ensure stability and accuracy over long periods of use.


FAQ
QWhat instrument is there to test the folding performance of the sole?
A HUITAO HT-F817 finished sole bending test machine conforms to GB/T 3903.1 standard, which can simulate repeated bending of the sole, detect fatigue, crazing and other problems, and ensure reliable test results.
QWhat tests can this instrument perform?
A It can perform sole folding test, flexible angle 0 °~ 55 ° adjustable (limit 80 degrees), Frequency 100-300 times per minute, 6 station simultaneous test, automatic shutdown, and generate detailed reports to help analyze product durability.
