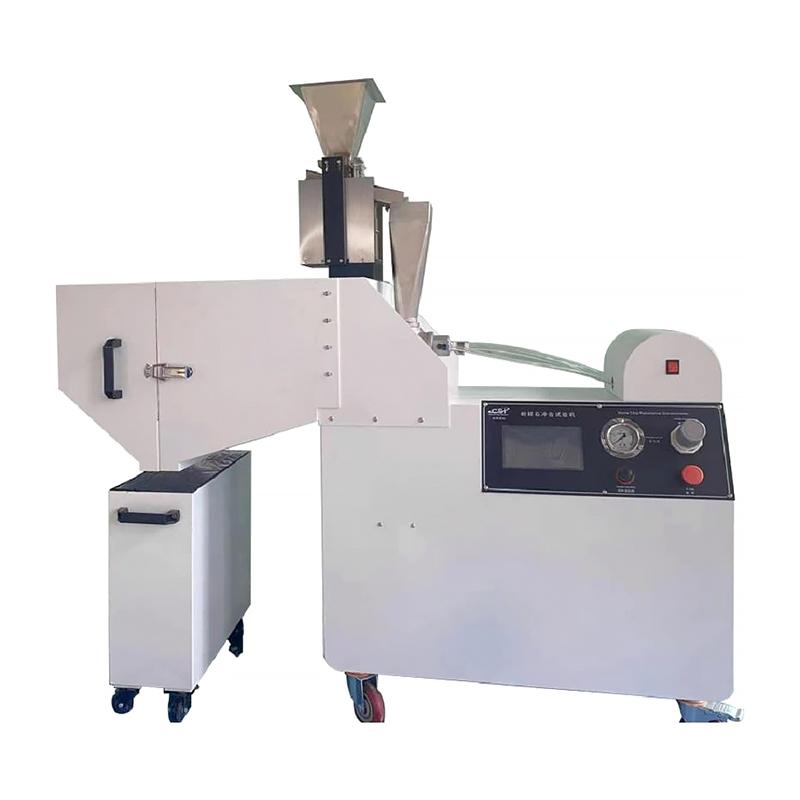

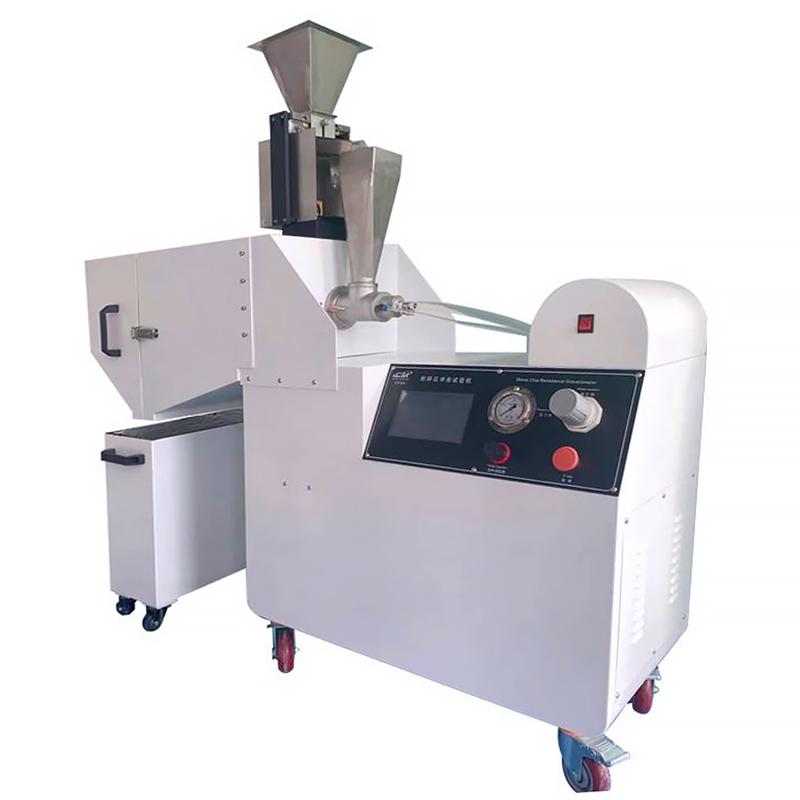

HUITAO HT-201 Anti-Gravel Impact Tester Automotive Paint Anti-Stone Impact Tester, Ordinary Version

HT-201 regular version

Gravel Impact Tester

Equipped with PLC control and Chinese and English interface. Support remote upgrade, adjustable injection time, speed and emission, with 3D Test Chamber and pneumatic vibration system, to adapt to a variety of test standards and Sample size.

use

The equipment used for anti-grit and gravel impact test of automotive materials and their surface coatings, the gravel impact testing machine is specially designed and manufactured for the anti-grit and gravel impact test of automotive materials and their surface coatings.

Specimen and standard to be measured

Active grille, camera, glass, painted parts, headlights, etc

GMW 1407，JIS M0141，TL211-6，GME 60 268，ASTM/D3170，SAE J400，FORD，Chrysler 463PB-39-01，GMW14668-3.4.9，Chrysler 463PB-52-01，GM 9119P/9508P/9619P，Mazda MES MN 601C，Nissan，Volkswagen，Toyota，ISO 20567-1

• PLC control system

• Operation interface: Chinese and English switching;

• Test software: can be upgraded remotely and free of charge

• The specimen is all set to the injection area;

• The spray time can be set from 0 to 999 seconds, and the time pause time can be set during the spray

• The funnel is made of stainless steel, and can be installed with about 0-10 kg of injection medium

• The control system and the specimen box are detachable, flexible, and can be moved at will

• 3D Test Chamber: 3D Test Chamber: SAE 45° impact chamber and VDA 90° impact chamber are equipped with collision avoidancesoft materials;

• It is equipped with a pneumatic vibration system

• Injection medium: steel balls, pebbles, gravel, etc

Screw Air Compressor requirements:

1. Environment: room temperature, <80%RH;

2. Gas medium: air;

3. Motor power: 7.5kW;

4. Discharge pressure: ≥1.25Mpa;

5. Exhaust capacity: >1m³/min;

6. Power supply: 380V/50Hz;

7. Transmission mode: direct transmission;

8. Start mode: frequency conversion start;

9. Gas tank: Material: stainless steel; Volume: at least 0.8m³, safety valve and pressure gauge are required; Barrel Diameter*Height: 700*1905mm

10. Protection devices: high temperature, high Voltage, blockage, overcurrent, phase loss, reverse phase, Voltage instability and other protection devices are required.

Gas Tank Requirements

The air tank is used to buffer the air, and it also has a cooling effect (the Air Compressor outlet temperature is largeabout 70-80 °C), and a more important role is the initial removal of water and oil.The storage tank can remove 70% of the oil and water, so for the Air Compressor, the air tank is a mustLess equipment. 0-1MPA (not less than 0.8MPA)

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
