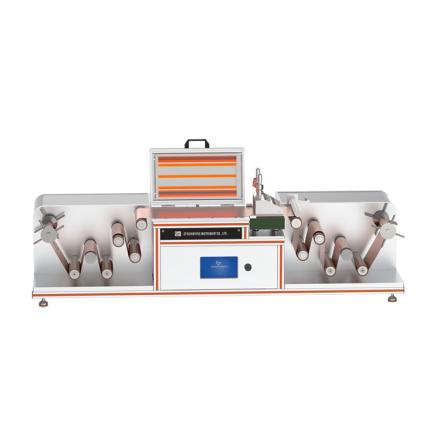

ChengYue CY-CMR-300T-S Laboratory lithium battery roll-to-roll heating coater Specifications
Search
Brand：ChengYue
Model：CY-CMR-300T-S
Name：Laboratory lithium battery roll-to-roll heating coater
Specifications
| Power Supply | AC220V, 50Hz |
| Total Power | 3500W |
| heating | Bottom hot air heating maximum temperature: 120 degrees temperature control Accuracy : +/- 1 ℃ drying area: length 1m, width 600mm |
| Film thickness Accuracy | 0.01mm |
| Vacuum substrate | Material: Aluminum alloy substrate Size: 400mmW * 400mmL |
| vacuum pump | Mini vacuum pump |
| substrate radiance | 520mm |
| Winding mechanism | The speed of the rewinding and unwinding device is adjustable from 100 to 400mm/min. The machine has feedback adjustment, which can automatically correct the speed. The width of the guide roller is 600mm. Tension control: max.50N Rewinding and unwinding diameter: max.φ 200mm Rewinding and unwinding Accuracy ： +/- 0.5mm |
| Weight | About 200Kg |
