Chengyue CY-CMF-1000 × 350B-S 1000mm vacuum heating coater belt casting Spreader

Specially designed for the production of long thick films, belt casting coater, Spreader width 350mm, Spreader length 1000mm, with a heated vacuum chuck, the temperature can be up to 100 ° C.
Certificate
Contact
Details SPEC
Similar products

ChengYue CY-CMF-1000×350B-S 1000Mm vacuum heating coaterSPEC

ChengYue CY-CMF-1000×350B-S 1000Mm vacuum heating coaterDetails

ChengYue CY-CMF-1000×350B-S 1000Mm vacuum heating coaterPacking list

SKU
NB048350
Effective Spreader Length
10-550Mm (adjustable by positioner)
Coating speed
5~ 100 mm/s variable
Heating method
Baseplate heating
Temperature display Accuracy
+/-1℃
Total power consumption
2000W
Host Power Supply
110VAC or 208~ 240VAC, 50/60Hz
Dimensions
805mm(L)×430mm(W)×232mm(H)
Traverse speed Accuracy
10 mm/s
heating element
Built into a vacuum bed, it can be uniformly heated to 100 ° C * maximum
Vacuumpump (optional)
The device uses vacuum adsorption to fix the substrate, so that the substrate will not fold during the coating process
film applicator
Includes a 250 mm wide Micrometer Film Applicator with Film thickness adjustable from 0.01 mm to 5 mm
CY-CMF-1000×350B-S
1000Mm vacuum heating coater
Specially designed for the production of long thick films, belt casting coater, Spreader width 350mm, Spreader length 1000mm, with a heated vacuum chuck, the temperature can be up to 100 ° C.

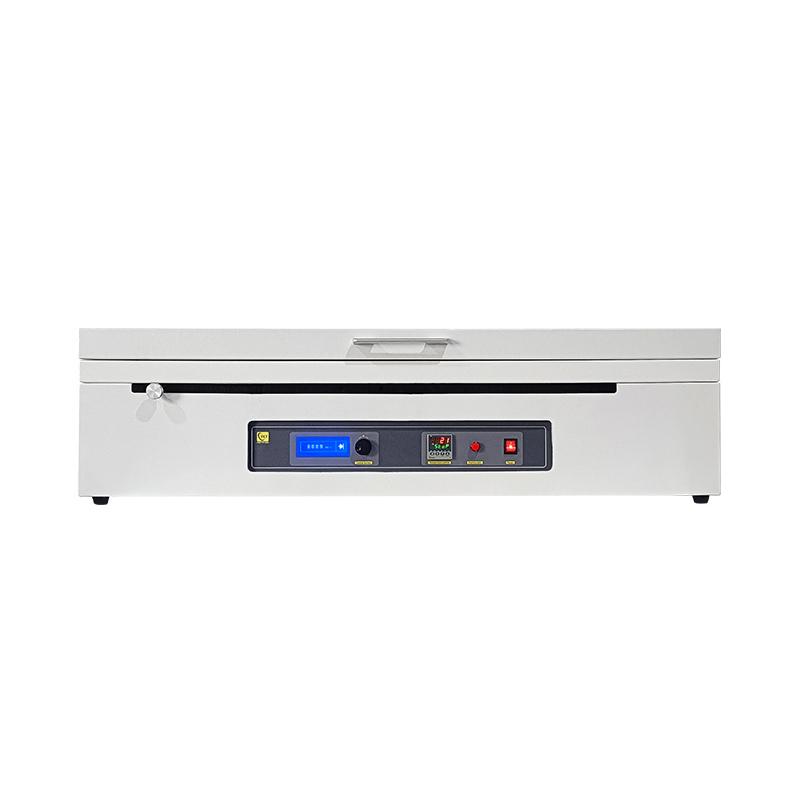

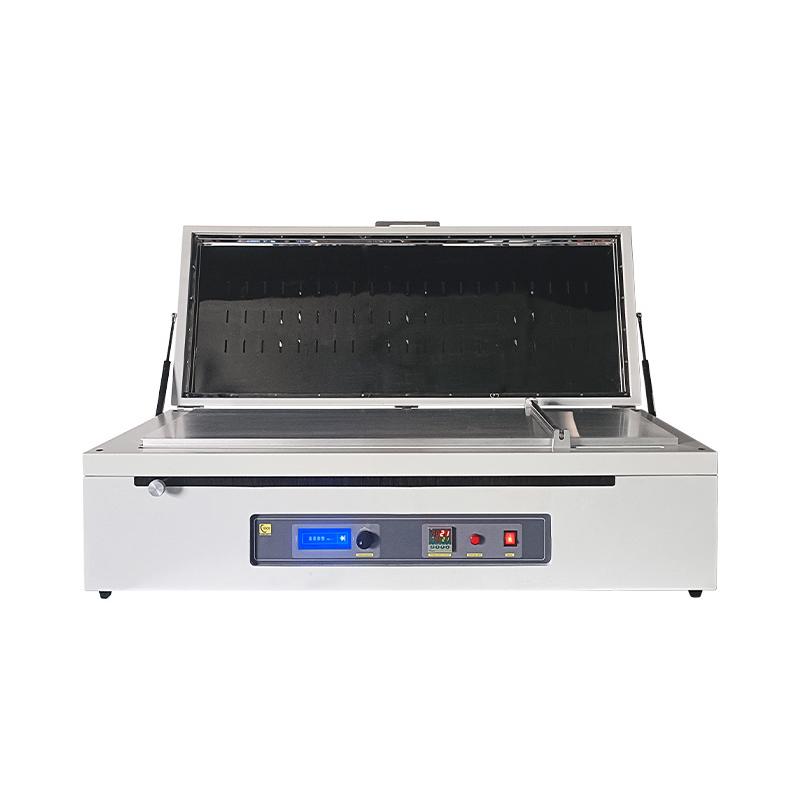

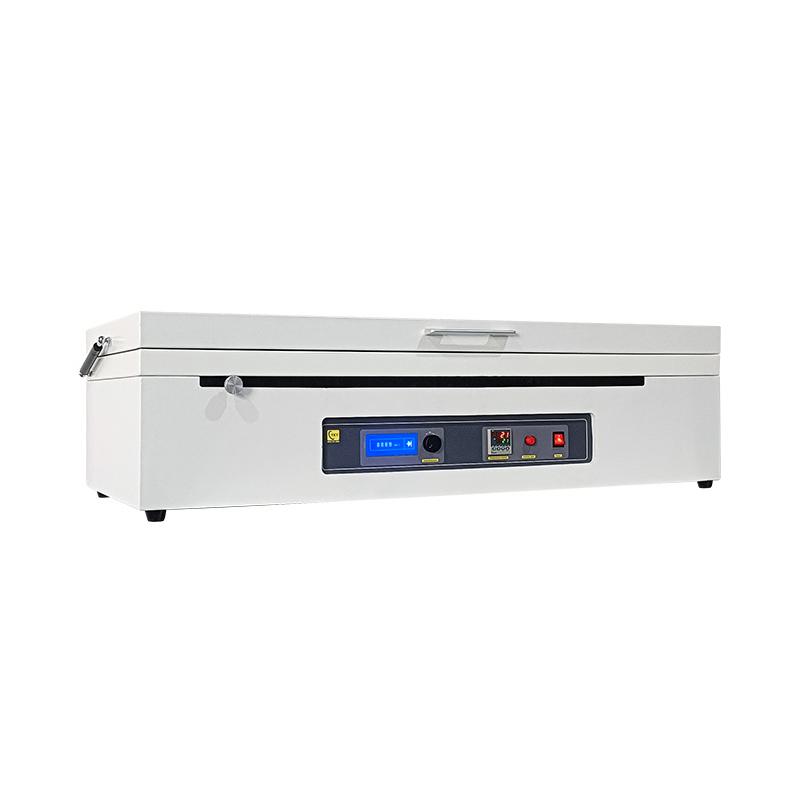

Chengyue CY-CMF-1000 × 350B-S 1000mm vacuum heating coater belt casting Spreader Picture

Introduction

Coating machine is a kind of machinery and equipment widely used in the manufacturing industry, mainly used for the production of surface coating process of film, paper, cloth and other materials.

Details

The large vacuum-heated coater is a 350mm wide and 1000mm long belt casting coater with heated vacuum cups and temperatures up to 100°C, adjustable micron applicator. The large vacuum-heated coater is designed for the production of long and thick films and has a unique drive system that produces smooth coatings on a wide range of materials.

Coating machine is a kind of machinery and equipment widely used in the manufacturing industry, mainly used for the production of surface coating process of film, paper, cloth and other materials. It is capable of coating rolls of substrate with a layer of function-specific glue, paint or ink, etc., and then drying it and cutting it into sheets or winding it. The coating machine adopts a special multi-functional coating head, which can realize various forms of surface coating, such as brush, air knife, scraper, roller, spray coating and curtain coating.

Coating machines play an important role in the printing and packaging industry, being able to meet the coating needs of different types of paper, film and other materials. At the same time, it is also widely used in the textile industry to evenly coat coatings or chemicals onto various fabrics, felts, yarns and other materials to enhance their waterproof, anti-fouling and other properties.

The coating machine has the characteristics of high precision, high efficiency and high degree of automation, which can greatly improve production efficiency and product quality. Its rewinding and unwinding is equipped with a full-speed automatic film splicing mechanism, and the PLC program tension closed-loop automatic control is adopted to ensure the stability and uniformity in the coating process. In addition, the coating machine can also be customized according to different coating needs to meet the requirements of different industries, different materials, and different coating processes.

In conclusion, a coater is a powerful and widely used manufacturing equipment that plays an important role in industrial production.
