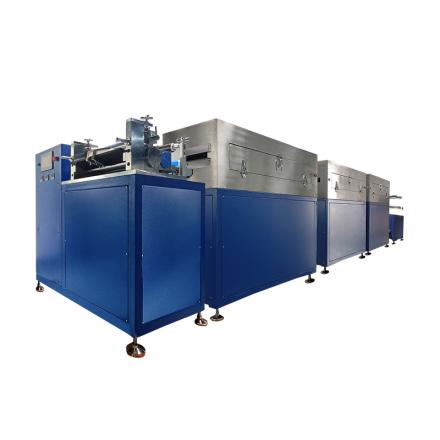

Specifications
| fit system | Lithium iron phosphoric acid, lithium cobalt oxide, lithium manganese oxide, graphite, silicon carbon and other systems |
| Coating method | Spreader transfer coating machine |
| Mechanical speed | Not less than 4.5m/min |
| Film thickness of running substrate | Aluminum foil (Al): 8~ 30um; Copper foil (Cu): 8~ 30um |
| Roller surface design width | 400mm |
| Guaranteed Spreader Width | Not less than 280mm |
| Spreader roller, backing roller | Diameter 120mm |
| Drawdown blade roller | Diameter 80mm |
| Spreader Accuracy | Better than +/- 3um (edge error +/- 5um) |
| Double top coating film Weight Accuracy | Spreader center value +/- 1.0% (mg/cm2) |
| Suitable slurry viscosity | 2000~12000 (mPas) |
| Film thickness range of single top coating | 30～200μm |
| Film thickness adjustment | Free adjustment, dial indicator display Accuracy 1a |
| Spreader length | Clearance: single piece Max. 10000mm, blank 8~ 120mm, Accuracy +/- 0.5mm |
| Winding Accuracy | ±0.5mm |
| Solvent characteristics | Oily solvent NMP (s.g = 1.033, b.p = 204 ℃) |
| Solid content range | 20~85% |
| Spreader dimensional Accuracy | L≤±1mm、W≤±0.5mm |
| Front and back alignment Accuracy | L≤±1mm、W≤±0.5mm |
| Over-roll installation structure | Steel frame firmly installed |
| Roller surface preparation | Aluminum roller surface oxidation |
| Winding method | The material roll is fixed with a 3-inch inflatable shaft; |
| Maximum bearing Capacity of inflatable shaft | 80KG |
| Number of unwinding inflatable shafts | Article 1 |
| Main drive motor | Servo motor |
| Roller surface preparation | Metal aluminum roller surface oxidation, round runout ≤ 30um |
| Drawdown blade structure | Double-sided comma drawdown blade |
| Coating roller (steel roller) | Hard chrome plating on the surface |
| Back roller (rubber roller) | Table bread imported EPDM glue |
| Intermittent height adjustment of drawdown blade | Manual adjustment; |
| Single head position | Installation and operation before drying |
| Oven length | 1.5 meters/section, a total of 3 sections, three stages of temperature control |
| material | SUS304 stainless steel |
| temperature control | Divided into normal operating temperature control, over-temperature monitoring and alarm protection control, each section is completely independent control |
| Single oven heating power | 9KW, 3 sections total 27KW |
| Blowing method | Upper and lower air blowing, Upper/Lower air chambers share heating body |
| Air nozzle structure | The air nozzle groove is slotted with a special mold |
| Fan control | contactor control |
| Heating control | Solid State Relay |
| Fan material | SUS304 stainless steel |
| Solvent recovery system | Optional |
| forward correction | Baking opening installation |
| Installation structure | Steel frame firmly installed |
| Winding inflatable shaft number | 1 single-arm winding |
| main Control system | Touch screen, PLC, module, servo system |
| operation mode | Manual, automatic, emergency stop; the whole machine can be operated before and after |
| alarm situation | When the device malfunctions, the touchscreen will display the corresponding correction screen |
| drawdown blade | Round jump ≤ +/- 1.5um, Ra0.4, straightness ≤ +/- 1.5um |
| Coating roller (steel roller) | Round runout ≤ +/- 1.5um, Ra0.4 straightness ≤ +/- 1.5um |
| rubber roller | Circular runout ≤ 10um, straightness ≤ 10um |
