ChengYue CY-CMF-550×240B-S​ Lithium ion battery slot-die extrusion coater Specifications

Search

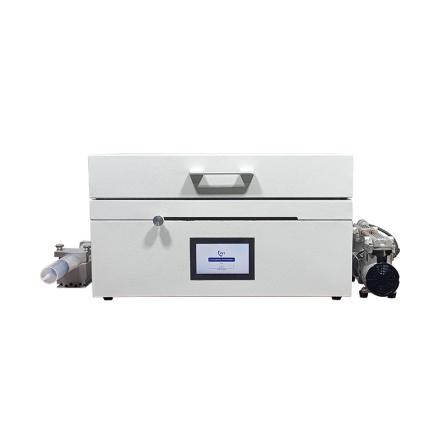

Chengyue CY-CMF-550 × 240B-S Lithium-ion battery slot-die extrusion coater Continuous and intermittent Spreader hot air drying

Brand：ChengYue

Model：CY-CMF-550×240B-S​

Name：Lithium ion battery slot-die extrusion coater

DetailsContact
Specifications
Spreader head 200Mm width Di seam extrusion coating applicator
Mechanical speed Spreader traverse speed 0.1um/s~ 1m/s
Film thickness Max：5mm
Vacuum substrate The coater substrate is made of aluminum alloy with uniform pores, which can generate vacuum through the built-in Vacuumpump, adsorption substrate to ensure the smoothness of the sample
substrate size L550*W240mm
substrate heating Built-in heating element, maximum heating temperature 120C (heating time is more than half an hour)
Control system All operation controls are integrated on a seven-inch touchscreen for easy operation
Oil Free Vacuumpump 50L/min
Single channel syringe pump Flow rate: 0.001ul/min~ 43.349ml/min
Packing list
