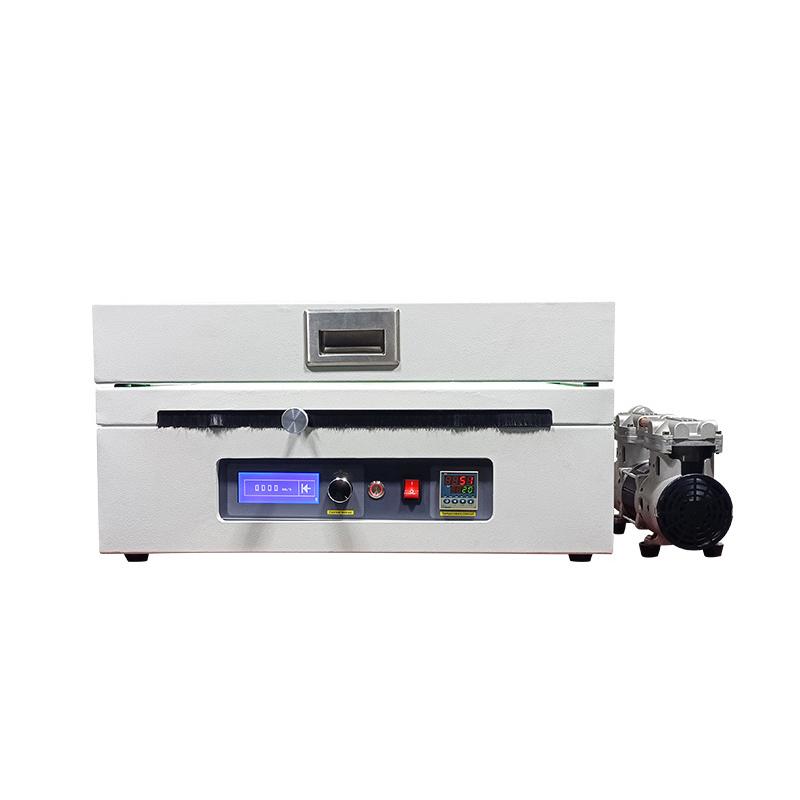

Chengyue CY-CMF-400 × 220B-S-UV small heating Bar Coater UV Lamp curing

CY-CMF-400×220B-S-UV

Small heated Bar Coater

For a variety of high temperature film studies, top with heated tube heating and UV Lamp mercury lamp curing, with 20 micron wire-wound drawdown Bar and oil-free Vacuumpump.

Introduction

Small heating profile wire rod coating machine is widely used in various high-temperature coating film research, such as ceramic films, crystal films, battery material films, special nano films; It can adapt to the development of science and technology for film formation under high temperature conditions in the future.

Features

1. Top heating tube heating and top ultraviolet lamp mercury lamp curing, * high working temperature < 120° C;

2. The coating speed is adjustable in the range of 0~100mm/s, and it has a digital display;

3. Vacuum aluminum disc, which can quickly place or remove the substrate;

4. Between 10~300mm, the stroke can be adjusted by the travel switch;

5. With a coating film thickness of 20 microns and a width of 0-150mm, high-precision coating wire rods.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
