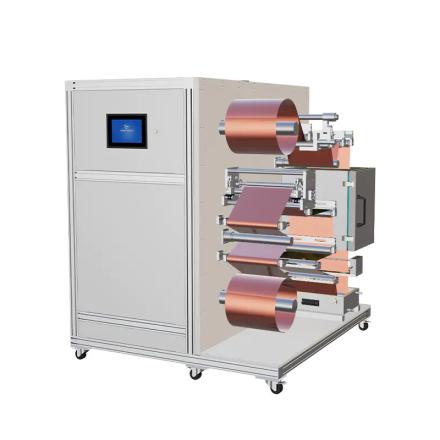

ChengYue CY-CMR-300-S Lithium battery double-sided dip coating experimental coater Specifications
Search
Brand：ChengYue
Model：CY-CMR-300-S
Name：Lithium battery double-sided dip coating experimental coater
Specifications
| Coating method | Impregnated Spreader |
| rewinding diameter | Max：300mm |
| Width of guide roller | 300mm |
| Mechanical speed | Max：1m/min |
| Spreader Accuracy | +/- 3 μm (cathode paste, viscosity 1000CP, Solid content 35.5%, bar size 80 μm). |
| Spreader Film thickness | WFT 6-200μm (reference value, bar Spreader), depending on slurry parameters and bar type. Film thickness of cover foil can be adjusted between 0.1 m - 1mm |
| Infrared drying oven heating method | Carbon fiber infrared lamp heating |
| Infrared drying oven air Volume | Max: 402m ³/h, air valve adjustment |
| Infrared drying oven temperature | Max：150℃ |
| Infrared drying oven power | 2KW |
| Infrared drying oven length | 500mm |
| Correction Accuracy | ±0.5mm |
| Impregnation box comes standard | Spreader * Small Capacity Min: 0.3L |
| Impregnation box optional one | Spreader * Small Capacity Min: 0.7L, reserved chilled down water interface |
| Impregnation box optional two | Spreader * Small Capacity Min: 2.7L, reserved chilled down water interface |
| Device size | L980mm*W750mm*H1420mm |
