Brand：ChengYue
Model：CY-CMF-940×310B-S

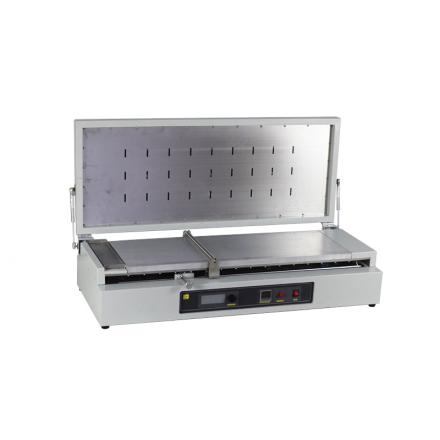

Name：Small automatic drying and coating machine
Specifications
| Power Supply | AC 110V, 60HZ |
| Heating plate power | 3000W |
| Coated suction plate size | 1000Mm × 350mm (length × width) |
| Film thickness Accuracy | +/- 0.01mm |
| Coating speed | 28~ 90Mm/sec (CVT) |
| Push stroke | 29-930Mm (length adjustable) |
| Drawdown blade Moulding machine | 300Mm wide |
| Heater * High heating temperature | Bottom heating * height 120 ° C (intelligently adjustable) |
| Temperature control Accuracy | ±1℃ |
| net Weight | About 100Kg |
Packing list
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/48363/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
