Chengyue CY-CMF-1100 × 350B-S large vacuum heating coater

Designed for coating various electrodes of cylindrical batteries, Spreader width 300mm, Spreader length 1000mm, with a heated vacuum chuck, the temperature can be up to 100 ° C.

Model：

CY-CMF-1100×350B-S

Certificate

ChengYue

Factory authorized direct sales

Contact

Details SPEC

ChengYue CY-CMF-1100×350B-S Large vacuum heating coaterSPEC

ChengYue CY-CMF-1100×350B-S Large vacuum heating coaterDetails

ChengYue CY-CMF-1100×350B-S Large vacuum heating coaterPacking list

SKU: NB048364

stroke length: Adjustable 10-1000mm with adjustable position switch

platform material: Aluminum alloy flat vacuum suction cup

protective cover: 1. The coater includes a transparent acrylic protective cover. 2. The flue gas Exhaust Port is assembled with the lid in the upper left corner. 3. Port size: outer diameter 80mm, inner diameter 68mm, height 60mm.

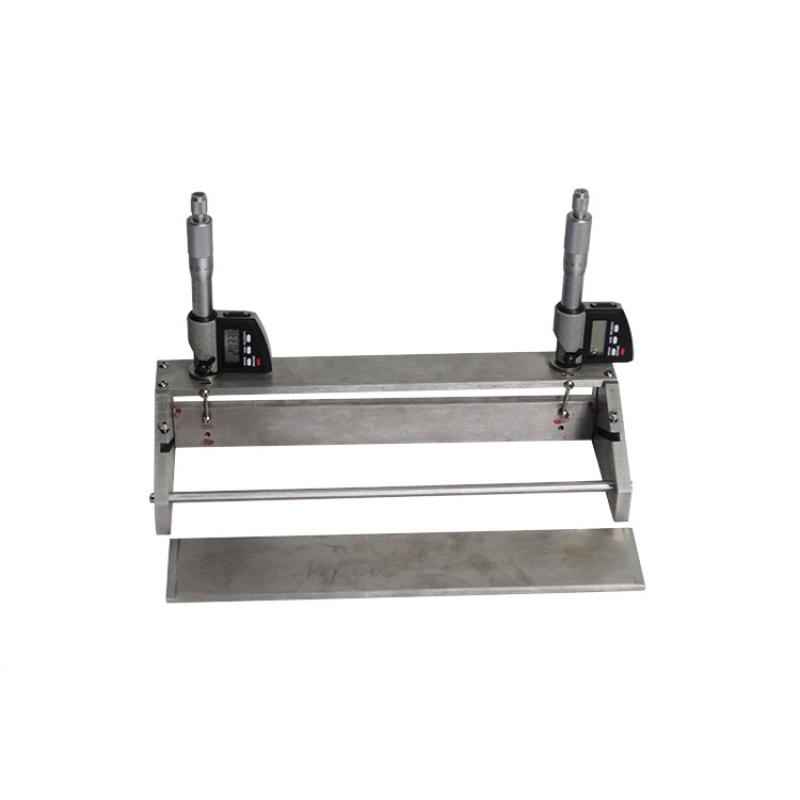

film applicator: Built-in pushrod with Micrometer adjustable applicator. 300mm wide film applicator with Micrometer adjustable head including coatings up to 1000mm (L) x 300mm (W)

Max. coating area: 1000mm(L)×300mm(W)

Device size: 1340Mm (L) × 580mm (W) × 920mm (H) (Max height)

Heating method: Bottom heating vacuum block

Heated vacuum bed Max. Working power: 2000W

Heating Vacuum Bed Max. Heating Temperature: 100°C

Temperature Controller Accuracy: +/-1℃

Vacuum suction cup size: 1100Mm (length) × 350mm (width) × 25mm (height)

CY-CMF-1100×350B-S

Large vacuum heating coater

Designed for coating various electrodes of cylindrical batteries, Spreader width 300mm, Spreader length 1000mm, with a heated vacuum chuck, the temperature can be up to 100 ° C.

Introduction

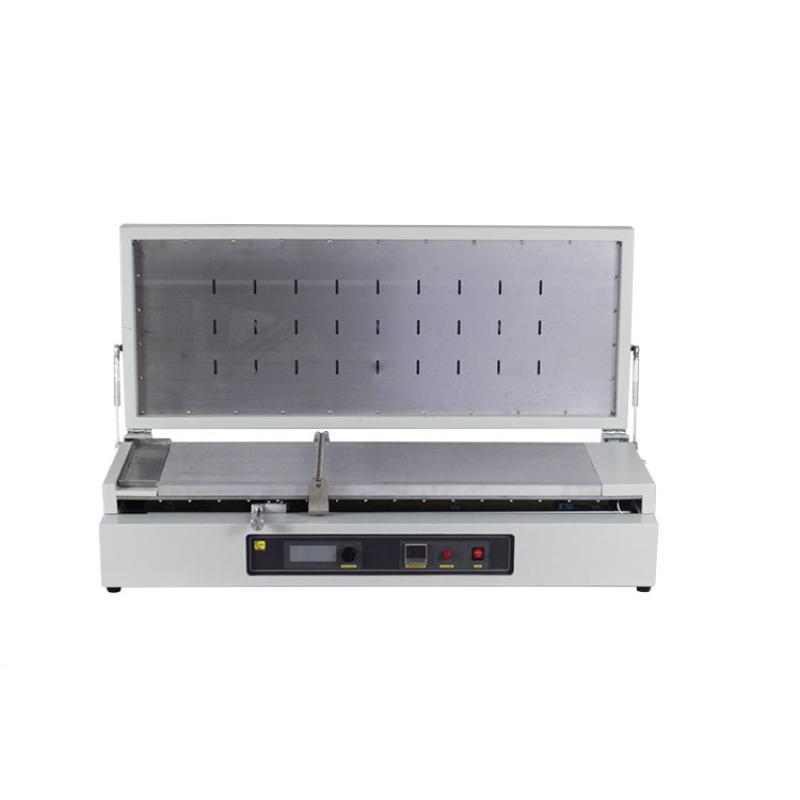

The large vacuum heated type coater is a 300mm wide and 1000mm long belt casting coater with heated vacuum suction cups, the temperature can be up to 100°C, and the adjustable micron level coater. The large vacuum-heated coater is designed for the production of long and thick films and has a unique drive system that produces smooth coatings on a wide range of materials.

The large vacuum-heated coater is designed for coating a wide range of electrodes in cylindrical batteries, such as the 21700 format.

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
