Chengyue CY-CMF-600 × 300B-S Large Size Automatic Casting Coating Machine

CE certification, drawdown blade + heating + vacuum adsorption type, Spreader width 250mm, suitable for making battery pole pieces, high temperature polymer films and conductive Ceramics films.
Certificate
Contact
Details SPEC
Similar products

ChengYue CY-CMF-600×300B-S Large size automatic casting coating machineSPEC

ChengYue CY-CMF-600×300B-S Large size automatic casting coating machineDetails

ChengYue CY-CMF-600×300B-S Large size automatic casting coating machinePacking list

SKU
NB048367
Working Voltage
110VAC or 208~ 240VAC, 50/60Hz
Max. Power consumption
2000W
traverse speed
5~ 100 mm/s Variable Accuracy: 10 mm/s
stroke length
10~550Mm (adjustable by positioner)
Max. Dimensions of coatings
250mm(W)×550mm(L)
Heated vacuum bed material
Made of aluminum alloy with micro-holes
Vacuumpump (optional)
The device uses vacuum adsorption to fix the substrate, so that the substrate will not fold during the coating process

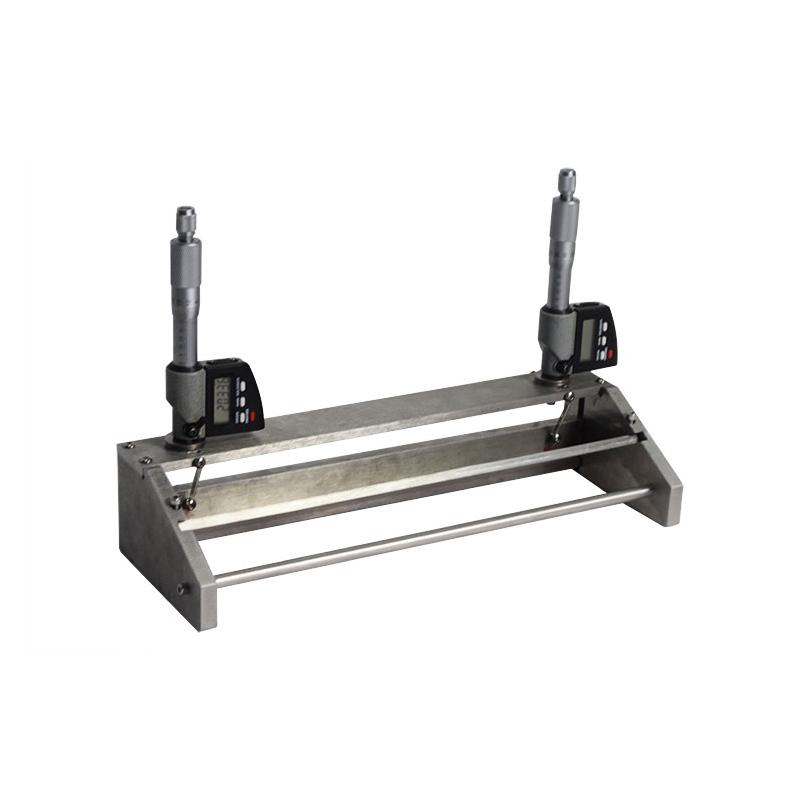

Film applicator type
Micrometer Micrometer Film Applicator
Vacuum suction cup size
600Mm (length) × 300mm (width) × 22mm (height)
heating element
Built into a vacuum bed, it can be uniformly heated to 100 ° C * maximum
Digital temperature Controller Accuracy
+/-1℃
Film applicator Spreader width
250mm
Film applicator Spreader Film thickness
Adjustable between 0.01 mm and 5 mm
The thinnest film thickness
Up to > 10 microns
CY-CMF-600×300B-S
Large size automatic casting coating machine
CE certification, drawdown blade + heating + vacuum adsorption type, Spreader width 250mm, suitable for making battery pole pieces, high temperature polymer films and conductive Ceramics films.

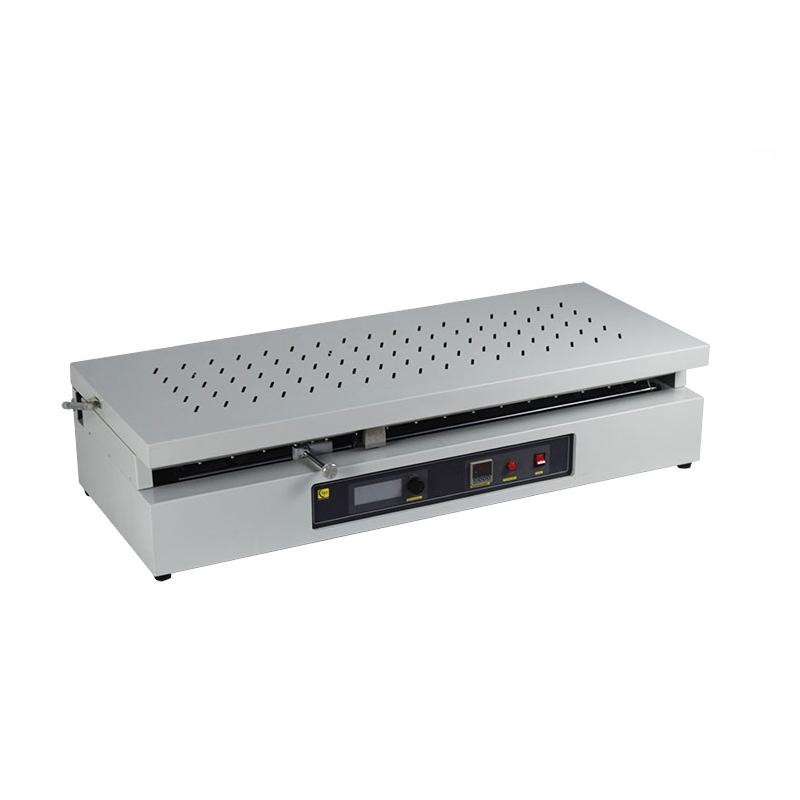

Chengyue CY-CMF-600 × 300B-S Large Size Automatic Casting Coating Machine Picture

Introduction

The large size automatic casting coating machine is a CE certified bottom heating automatic coating machine, the heating temperature can reach 100°C, and the vacuum adsorption is used to fix the substrate, so that the substrate will not wrinkle during the coating process, so as to make the coating smoother. The large-size automatic cast coater is equipped with a precision modulator that moves the push rod to move it at a constant speed to achieve the uniformity of the slurry coating on the substrate.

Product Applications

The large-size automatic cast coating machine is especially suitable for making battery pole pieces, high-temperature polymer films and conductive ceramic films.


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
Knowledge
