HuiNuo TM 2200/02 drawdown blade Vacuum adsorption Film Applicator Adjustable bracket height, effective Spreader area 400 * 400mm
SE
TM2200/02
-

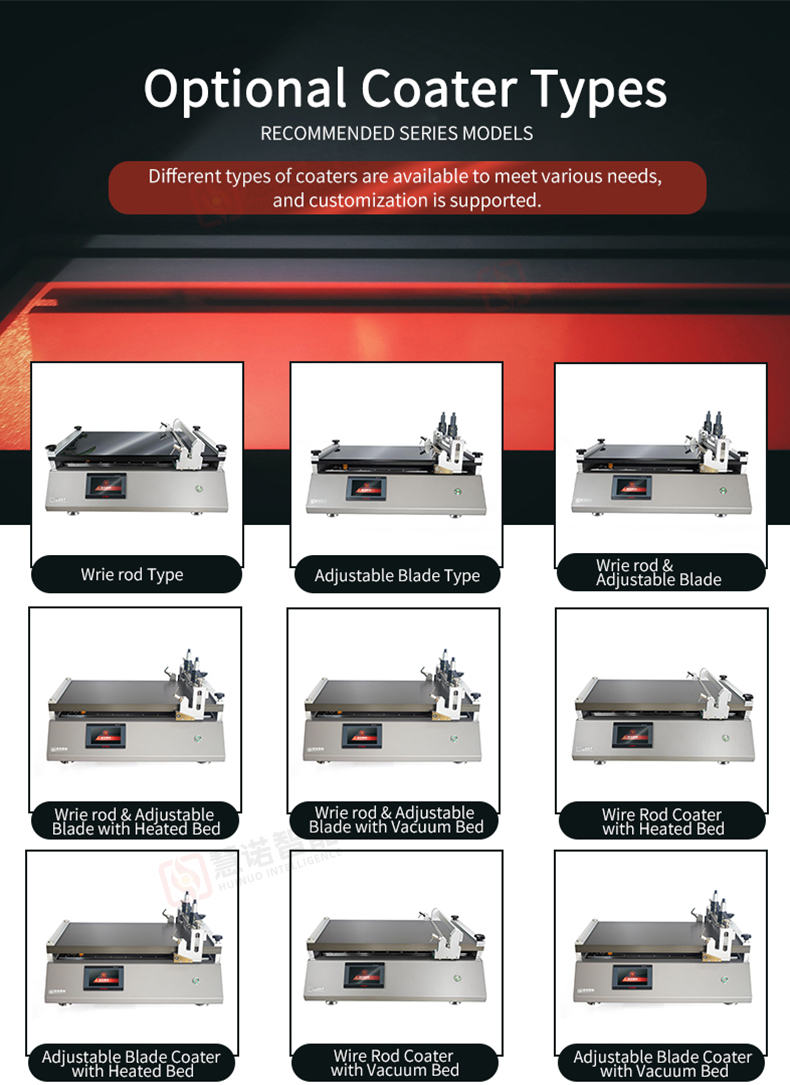

TM3200 Wire Rod & Drawdown Blade Automatic Coater with Vacuum Table$ 3957.00SE -
TM3200Pro High-accuracy Wire Rod & Drawdown Blade Automatic film Coater with Vacuum Table$ 4113.00SE -
China Drawdown blade bar Vacuum chuck laboratory coater TBJ-X2-DJ4 with detachable Drawdown blade$ 3102.00SE -
China Vacuum chuck coater TBJ-X2-XB bar + Drawdown blade with imported bar$ 3102.00SE -
China Vacuum chuck coater NBC-X2-DJ7 bar + Drawdown blade with imported bar$ 7066.00SE
HuiNuo TM2200/02 Automatic Film ApplicatorSPEC
HuiNuo TM2200/02 Automatic Film ApplicatorDetails
HuiNuo TM2200/02 Automatic Film ApplicatorPacking list
- SKU
- NB048368
- Coating method
- Drawdown blade
- Coating speed

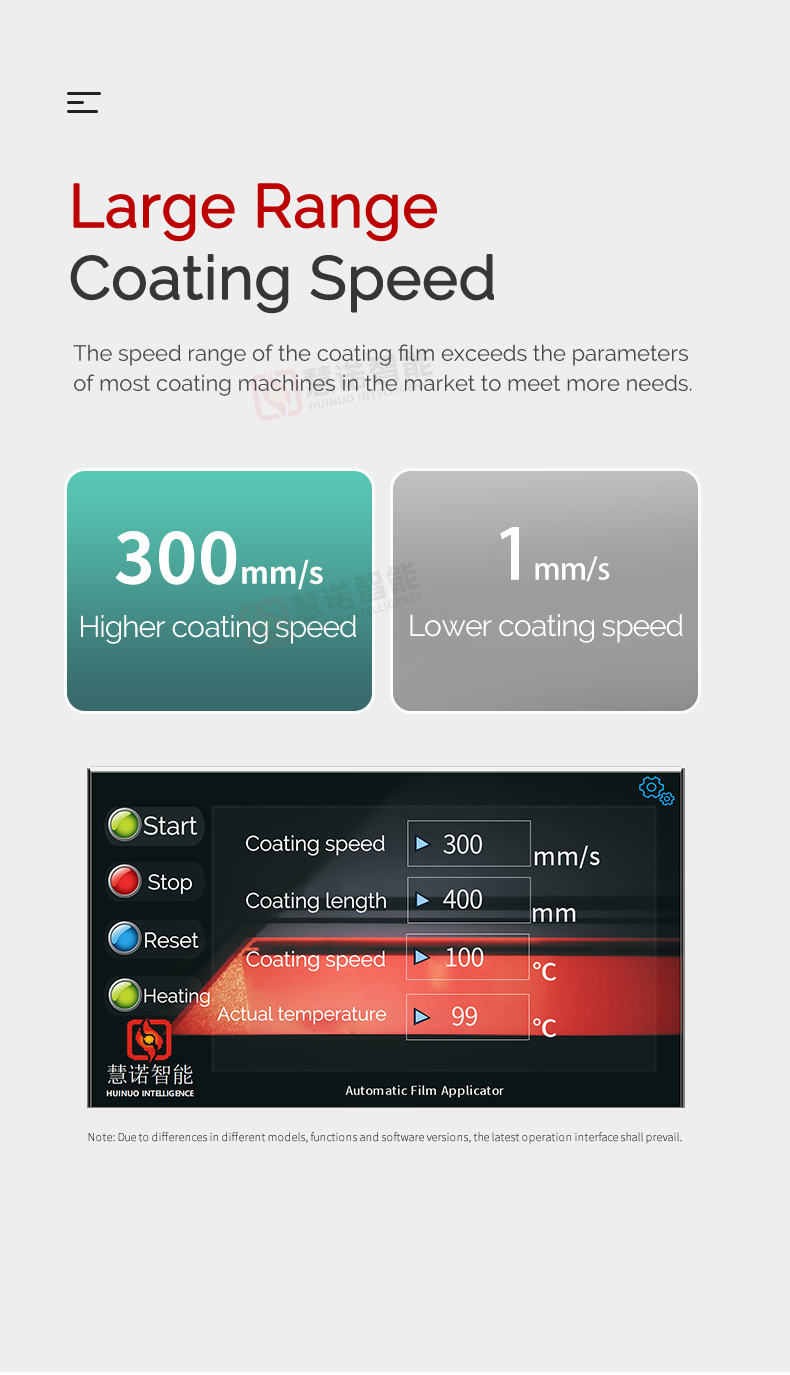

- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum adsorption + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 640*430mm
- Effective coating Area
- 400 * 400Mm (can be customized)
- Adjustable range of bracket
- 0~5cm
- Drawdown blade thickness range
- 0~10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 300mm
- Drawdown blade Accuracy
- ±0.003mm
- Vacuum Area
- 480 * 360Mm (can be customized)
- vacuum aperture
- Φ0.8mm
- Vacuum hole spacing
- 20*20mm
- Pumping Speed
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump Weight
- 7.1kg
- Power
- 600w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- Dimension
- 660*540*430mm

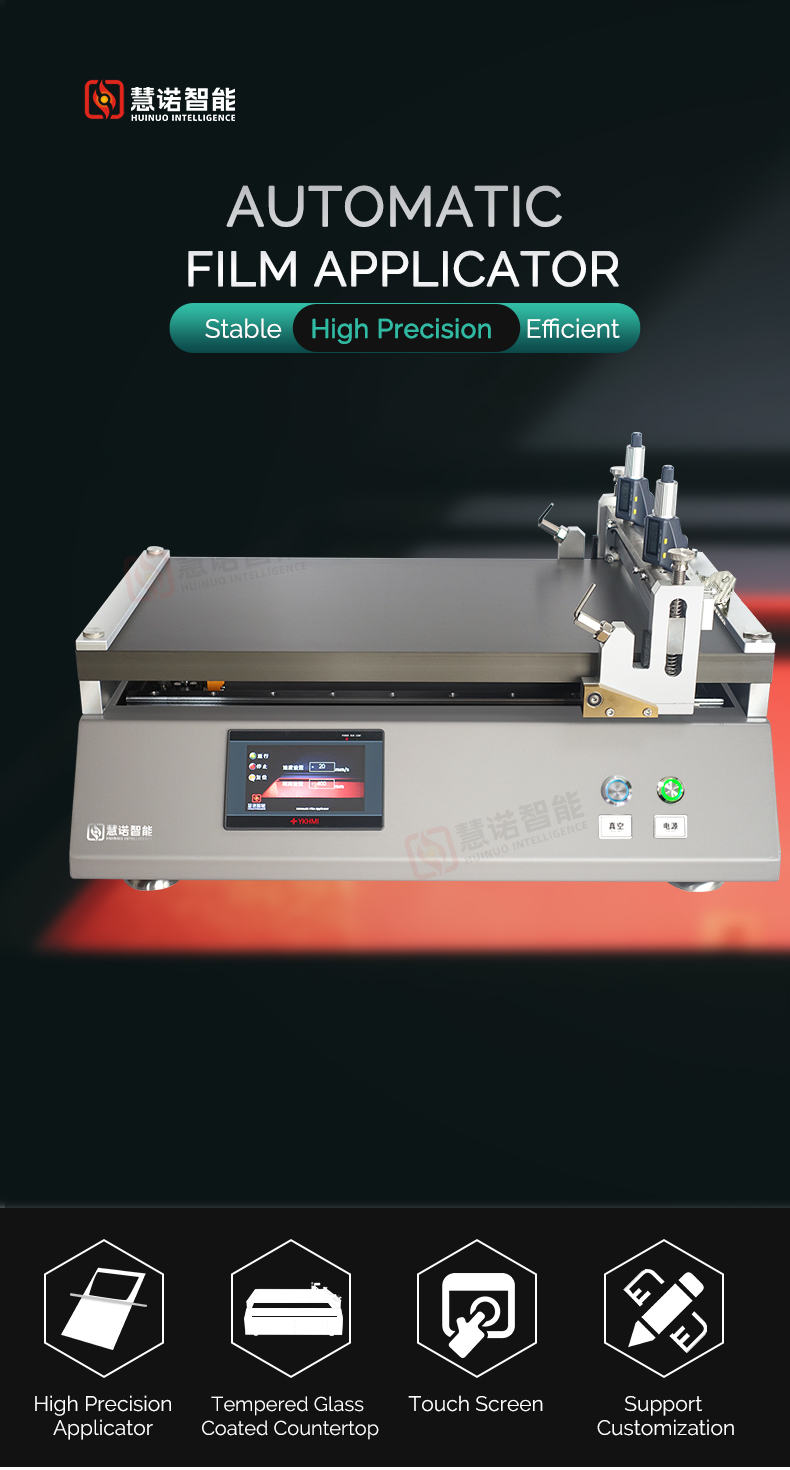

Overview
The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

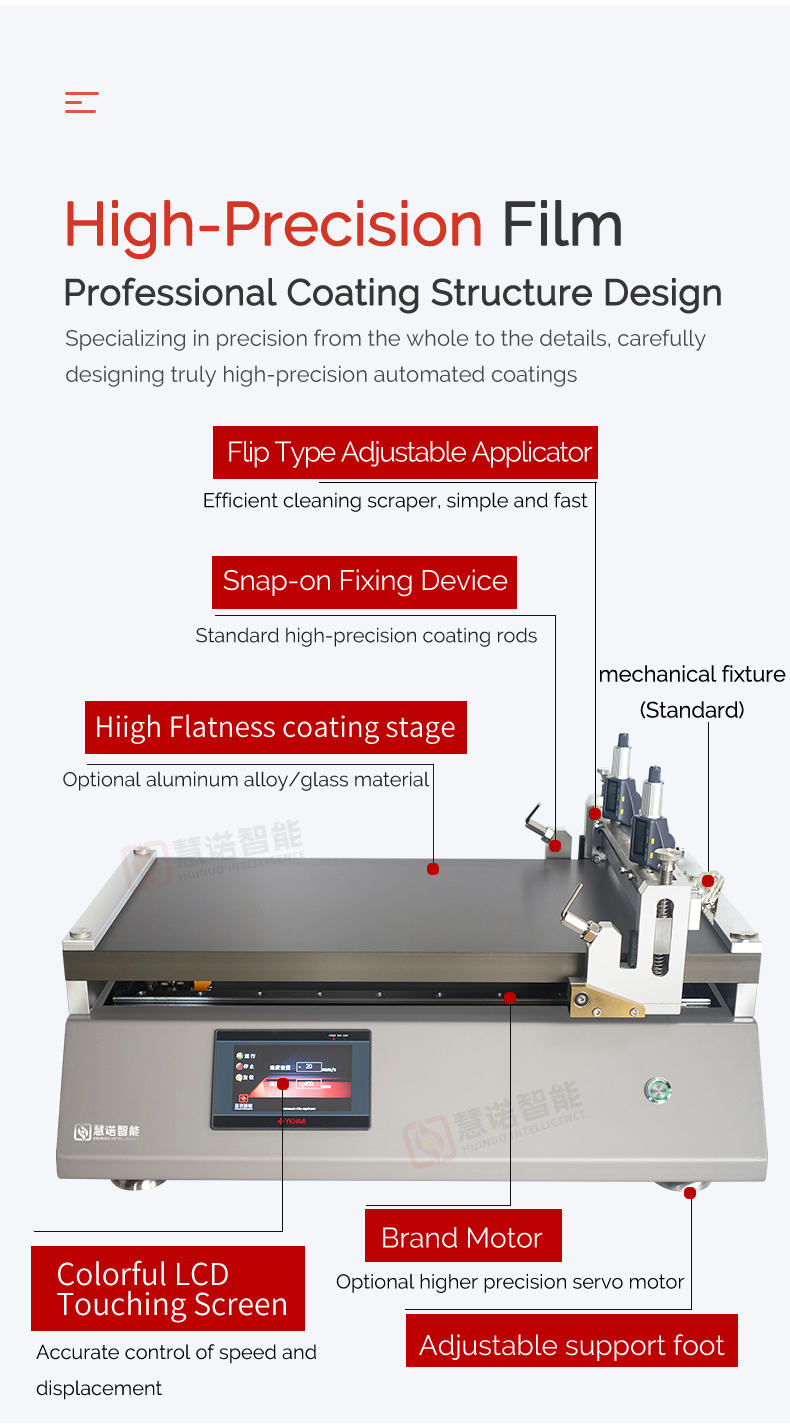

This coating machine is a wire rod doctor blade coating machine, using two types: wire rod and scraperCoatingMethod, external vacuum adsorption pump, new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment functions, suitable for high-precision automatic coating film in the laboratory, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Application
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on films, cardboards, aluminum foils and copper foils.
Features

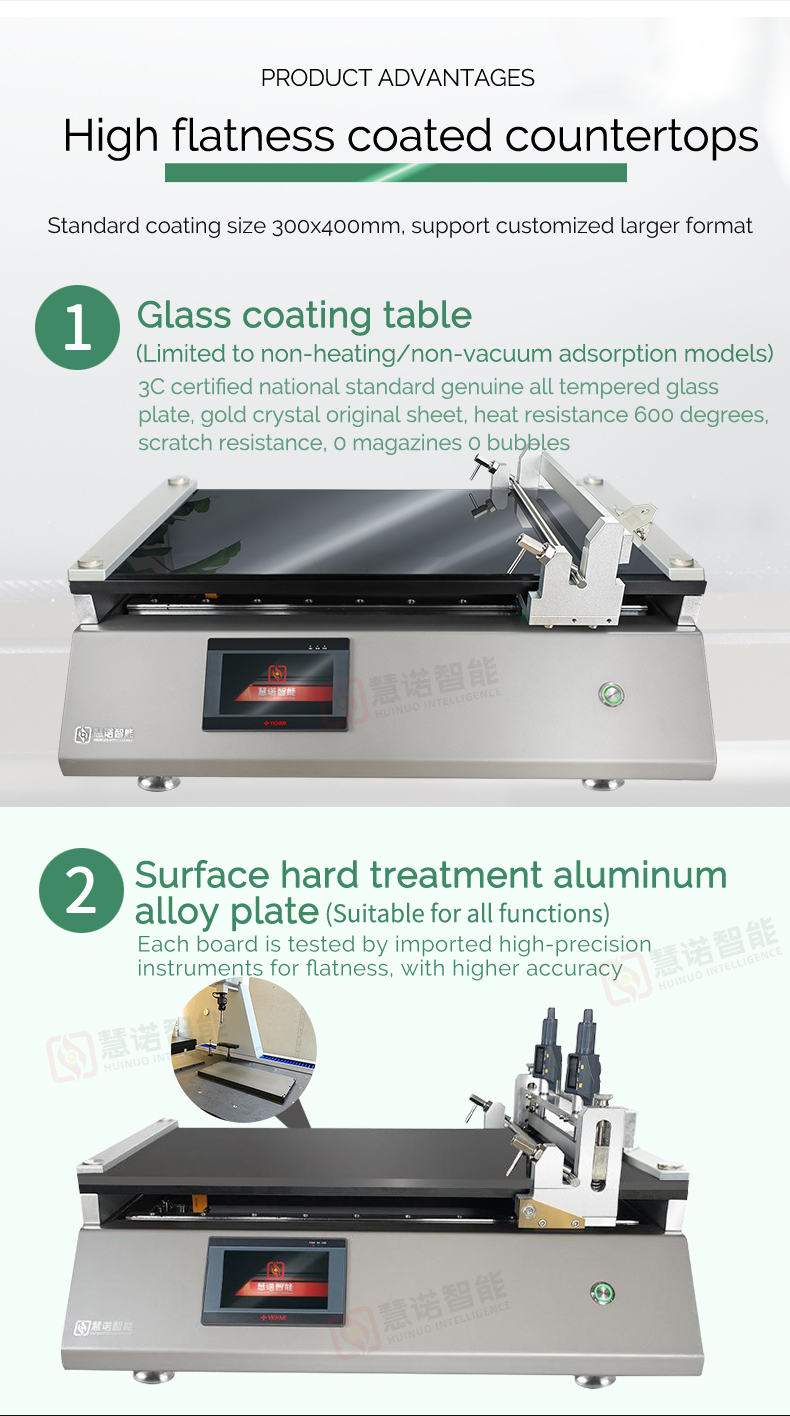

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy

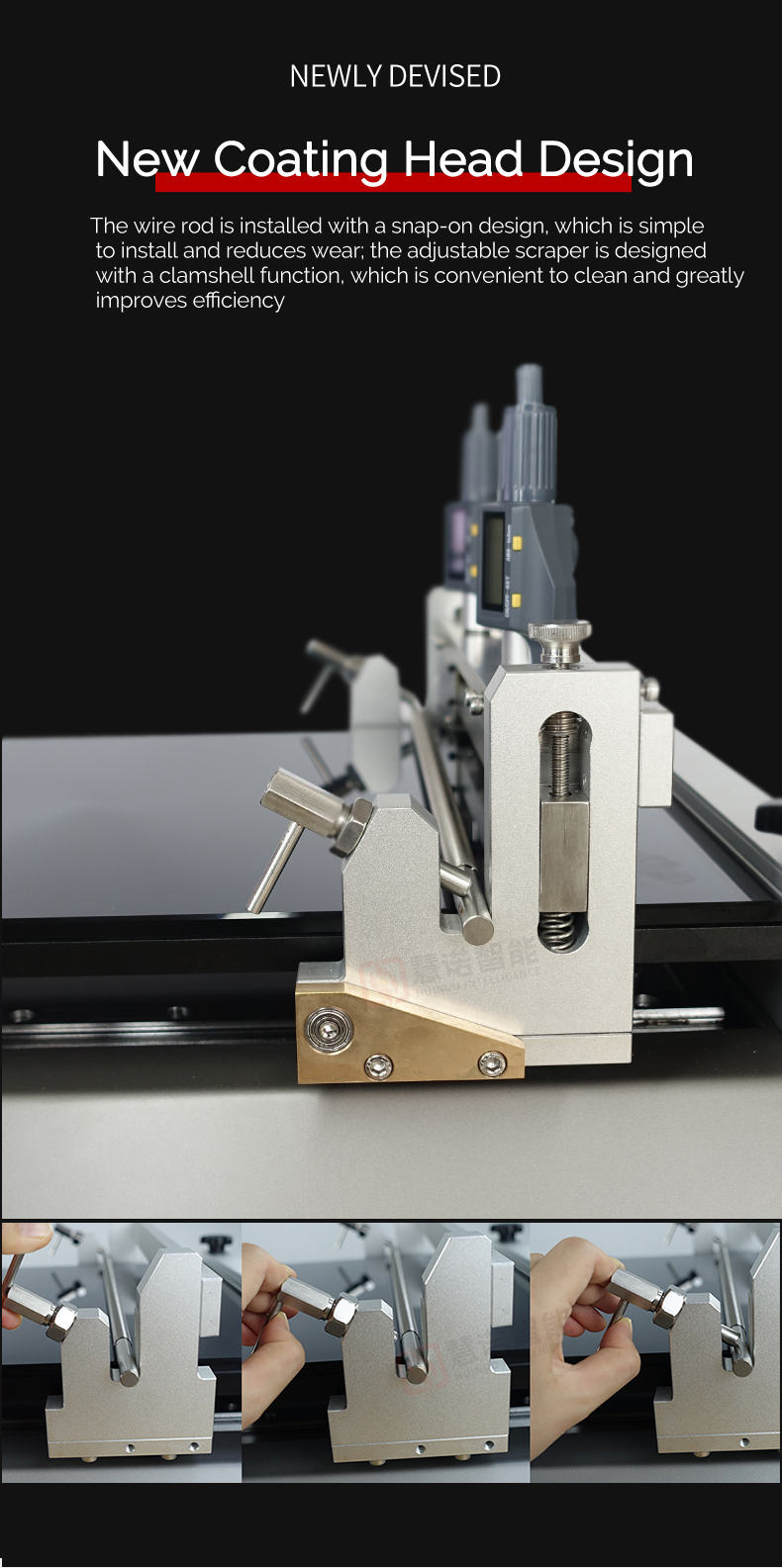

3) Clamshell doctor blade coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely

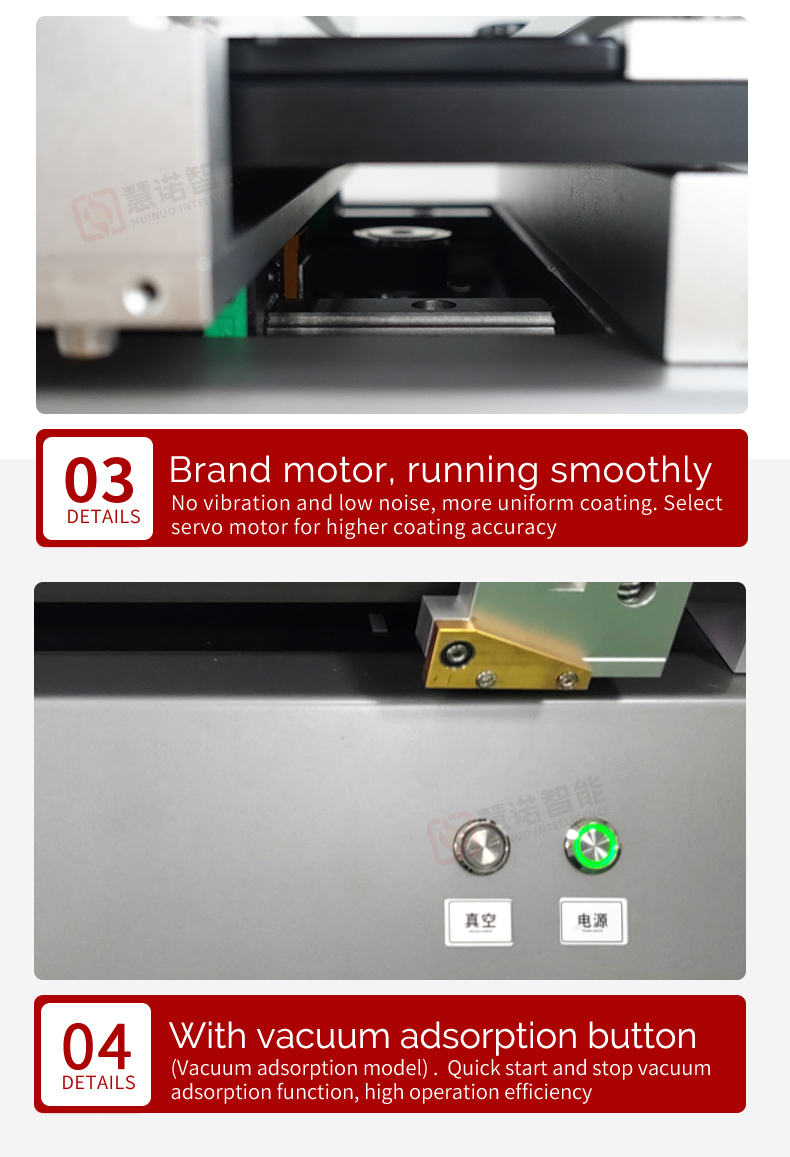

7) With vacuum adsorption function, it is suitable for coating soft substrates such as films.
