China

CHINA brand RBX-006 Microcomputer-controlled thermal deformation Vicat temperature Tester

SE
Equipped with high-precision displacement Sensors and an automated heating system, the Windows 7 graphical Operating interface makes it easier for users to operate, and the specimen rack can test three samples at a time.
Model：
Contact
Details SPEC CAT

Factory RBX-006 Microcomputer-controlled thermal deformation Vicat temperature TesterSPEC

Factory RBX-006 Microcomputer-controlled thermal deformation Vicat temperature TesterDetails

Factory RBX-006 Microcomputer-controlled thermal deformation Vicat temperature TesterPacking list

SKU
NB048429
Temperature control range
RT+～350℃
Heating rate
（12±1）℃/6min[(120±10)℃/h] (5±0.5)℃/6min[(50±5)℃/h]
Maximum temperature error
±0.5℃
Measurement range
0～10mm
Deformation measurement error
0.001mm
number of sample racks
Six.
Heating medium
Methyl silicone oil
Heating power
4kW
Cooling mode
Natural chill down above 150 ° C, water-cooled or natural chill down below 150 ° C
Power Supply
AC220V±10% 20A 50Hz
exterior size
720*700*1380mm
Weight
180kg
Load bar and head Weight
88g
Print function
Printing Temperature - Linear dispersion and related test parameters
RBX-006
Microcomputer-controlled thermal deformation Vicat temperature Tester
Equipped with high-precision displacement Sensors and an automated heating system, the Windows 7 graphical Operating interface makes it easier for users to operate, and the specimen rack can test three samples at a time.

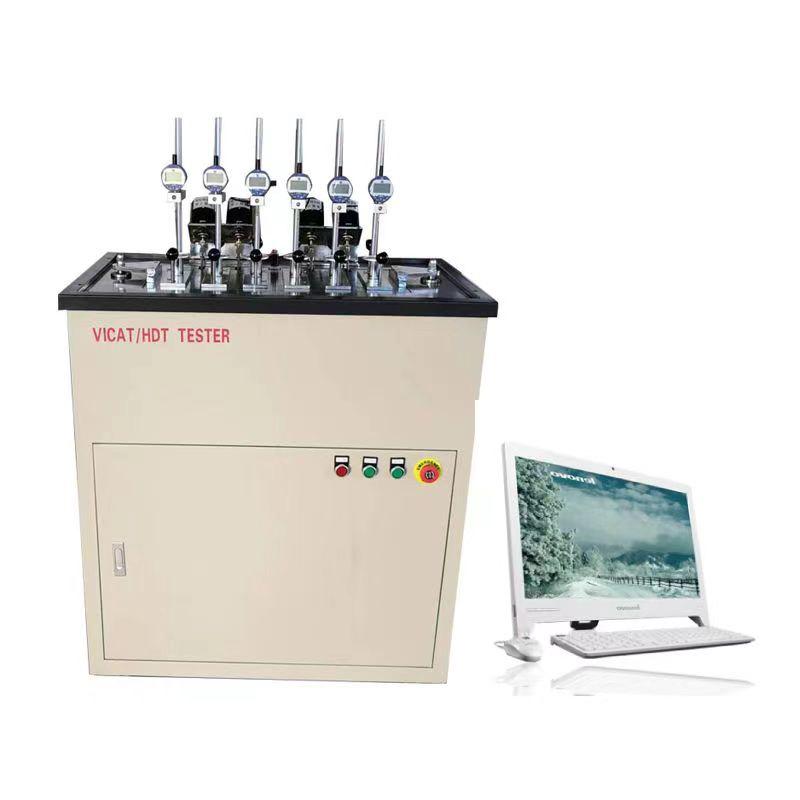

CHINA brand RBX-006 Microcomputer-controlled thermal deformation Vicat temperature Tester Picture

Features and uses

The Vicat softening point temperature Tester is suitable for testing the Vicat softening point temperature and heat deflection temperature of polymer materials, as an indicator to control the quality and identify the thermal properties of new varieties. THE DEFORMATION IS MEASURED BY A HIGH-PRECISION DISPLACEMENT SENSOR, THE SOFTWARE AUTOMATICALLY SETS THE HEATING RATE, AND THE WINDOWS 7 OPERATING SYSTEM PLATFORM USES THE SOFTWARE DEDICATED TO MEASURING THE HEAT DEFLECTION TEMPERATURE AND VICAT SOFTENING POINT TEMPERATURE WITH GRAPHIC VISUALIZATION, SO THAT THE OPERATION IS MORE FLEXIBLE AND THE MEASUREMENT IS MORE ACCURATE. The specimen holder is automatically raised and lowered, and 3 specimens can be tested at a time. Novel design, beautiful appearance and high reliability. This testing machine meets the requirements of GB/T 1633 "Test Method for Softening Point (Vika) of Thermoplastics", GB/T 1634 "Test Method for Thermal Deformation Temperature of Plastic Bending Load" and ISO75 and ISO306.

structure

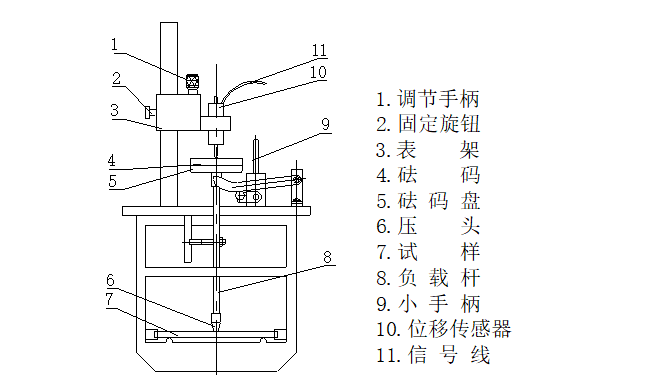

The testing machine is mainly composed of a frame, an oil tank, an electric heating pipe, a cooling pipe, a specimen support, a lifting mechanism, etc. The oil tank is used to store the heating medium methyl silicone oil, and the specimen holder is used to place the specimen. The entire test operation is controlled by computer. The operation is convenient, safe and reliable. The structure of the specimen holder is shown in the figure

Domestic brand RBX-006 microcomputer controlled thermal deformation Vicat thermometer details Figure 1
