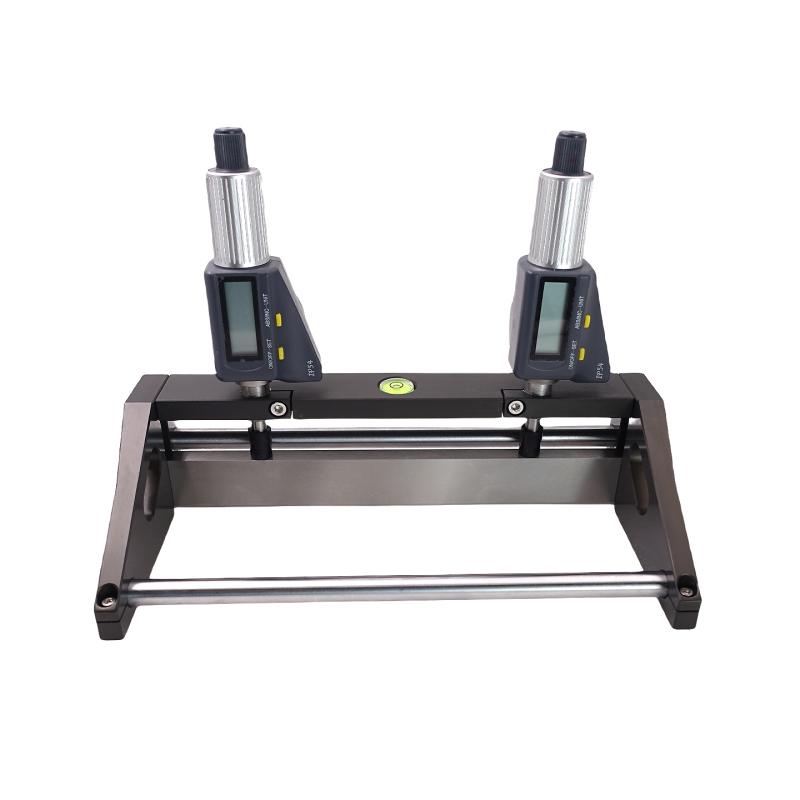

HuiNuo KTQ-250S adjustable Drawdown blade Applicator Digital display differential head application width 250mm

KTQ-250S

Adjustable Film Applicator

Digital differential head, differential head adjustment Graduation 1um, effective application width 250mm, wear-resistant anti-corrosion die steel Drawdown blade material, wet film thickness 0~5000 microns adjustable, can be equipped with coater scraping, accuracy +/- 5um.

Introduction

The Velix Adjustable Preparator is a wet film preparer with adjustable coating film thickness, and there are two differentiators above the adjustable preparator that can be adjustedPreparerThe two micrometer heads can adjust the lower blade up and down to control the gap, which is the thickness of the final coating. KTQ series adjustable wet film preparer is a scale differential head, which is displayed by the scale, and the index value of the differential head is 10μm； KTQ-S series adjustable wet film preparer is a digital microscope head,Digital microdivision head indexing value1μm。

The coating range of the adjustable preparer is adjustable from 0~5000 microns, and the coating film is appliedprecision±5μm；The frame material isThe aluminum is hard oxidized, and the scraper is made of die steel。 Different adjustable Film Applicators have different dimensions and different weights.

Features

1. High precisionDigital microdivision head, adjust the index value 1μm, intuitive reading；

2. The scraper material is:Mould steelIt has the advantages of high hardness, wear resistance and corrosion resistance;

3. Large-scale coating film thickness range, 0~5000 microns adjustable;

4. 50mm, 100mm, 150mm, 200mm, 250mm coating width can be selected;

5. The straightness of the blade blade ± 2 μm

Packing list：Adjustable Applicator × 1, Certificate X1, Manual X1, Warranty Card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
