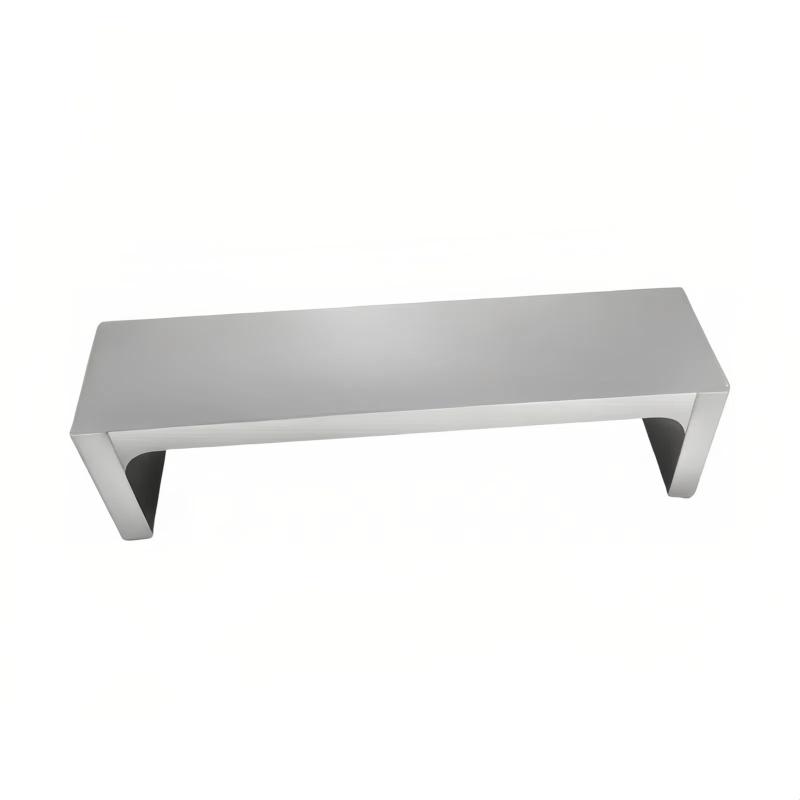

CHINA Double finish coating Applicator QTG 250/300μm application width 80mm
SE
QTG 250/300μm
HuiNuo QTG 250/300μm Double Sided ApplicatorSPEC
HuiNuo QTG 250/300μm Double Sided ApplicatorDetails
HuiNuo QTG 250/300μm Double Sided ApplicatorPacking list
- SKU
- NB048444
Introduction
The QTG 250/300μm double-sided paint film preparer has a coating film thickness of 250μm、300μm, 2 coating surfaces, coating width of 80mm, Total length of 100mm, coating film accuracy ± 2μm.
Wet film preparer is onelaboratoryManual Film Applicator, available in different coating widths, made of high-carbon chromium wear-resistant and anti-corrosion stainless steelBefore the preparer leaves the factory, the dimensional accuracy is detected by imported three coordinates to ensure the accuracy of the coating film. The SZQ series preparers have:I-shaped, frame, square and other shapes are available, and can be divided into single-sided, double-sided, four-sided, and eight-sided preparers according to the thickness of the coating film. Wet film preparers are suitable for glues and coatingspaintInk, polymer materials and other films, can be equipped with a film coating machine for automatic scraping. Nanbeichao provides preparator specification customization services.
Features
1. 9Cr18Mo high hardness stainless steel material, with good wear resistance and corrosion resistance, hardness value of 50~55HRC.
2. The coating film accuracy is ±2μm
3. The surface is smooth and clean, the styles are diverse, the application range is wide, and customized specifications are supported
4. Adopt imported three-coordinate detection accuracy, with factory test report, which can stand up to measurement
The detection accuracy process is actually shot
Every wet film preparer uses this millionImported three-coordinate testing equipment for accuracy testing, and the test result data is generated into a test report attached to the corresponding product, which stands up to measurement,Let users buy with confidence.
Parameter table of the preparator series
| name | Specification mm | Wet film thickness μm |
| Single-sided preparer | The Total length is 80, and the coating width is 50 and 75 | 50、75、100、125、150、175、200 |
| Double-sided preparer | The Total length is 100, and the coating width is 80 | 25、50、75、100、150、175、200、250、300、400 |
| Frame preparer | The Total length is 90, and the coating width is 80 | 30、50、60、90、120、150、200 |
| Octaveral preparer | The Total length is 90, and the coating width is 68 | 50、75、100、125、150、175、200 |
| Octaveral preparer | The Total length is 100, and the coating width is 80 | |
| Square preparer | 25x25, coating width 16 | 37、50、75、100 |
| Square preparer | 50x50, coating width 41 | 50、100 |
| Standard four-sided preparer | The Total length is 100, and the coating width is 80 | All specifications and sizes, support non-standard customization |
| Extended four-sided preparer | The Total length is 190, and the coating width is 160 |
