HuiNuo QHD pendulum damping Tester Konig pendulum rod method Hardness Gauge

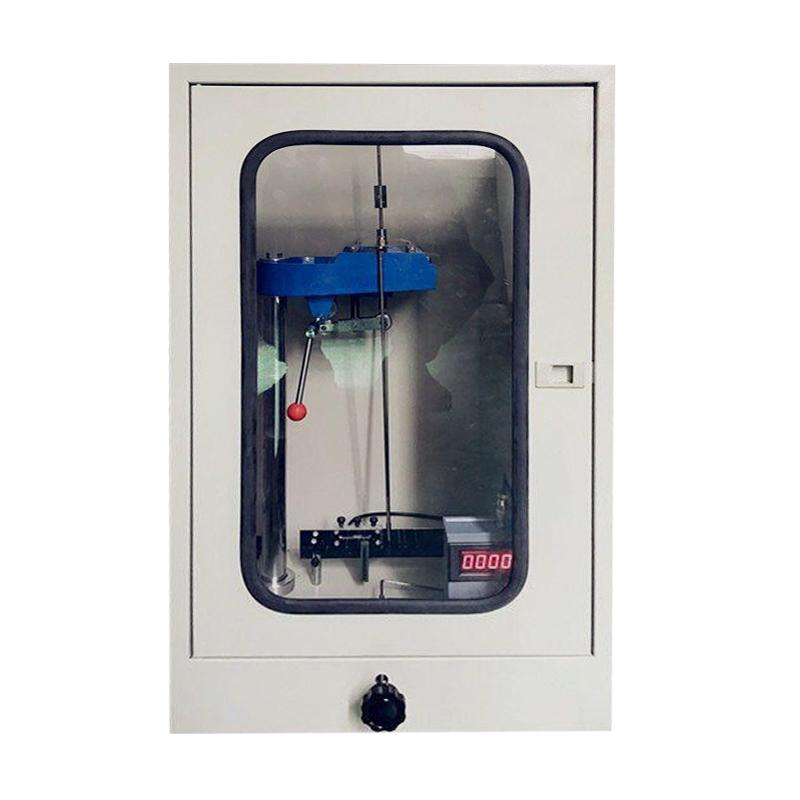

QHD

Pendulum damping Tester

Designed according to ZBN72020 and ISO1522 standards, suitable for Paints, varnish film Hardness, with Konig pendulum, pendulum mass 200 +/- 0.2g.

First, the use:

QHD pendulum damping Tester is designed and manufactured according to professional standards ZBN72020 and with reference to international standards ISO1522

This instrument is used in the sampling test of pigment varnish, varnish and related products to determine the film hardness of pigment varnish varnish and related products.

2. Technical indicators:

(1) Konig pendulum (Konig)

1. The total mass of the pendulum: 200±0.2g

2. The swing period of the pendulum: 1.4±0.02S

3. The glass value of the pendulum: 250±10S / 178±7 times (on the polished glass, the damping time/times of the swing of the pendulum rod is displaced from 6° to 3°)

3. Working principle and structure:

1. Working principle

The damping time of the pendulum attenuation on the paint film is expressed in seconds, and the hardness of the paint film is based on the principle that when the pendulum rod that contacts the surface of the paint film swings in a certain period, if the surface is softer, the swing attenuation will be faster, and vice versa. It is important to note that there is no conversion relationship between the results of the tests performed with Konig and Persoz pendulums with different structures, masses, dimensions and periods, because the interaction between the pendulum and the coating also depends on the complex elasticity and viscosity of the coating. Therefore, in the product standard, only one kind of pendulum is specified in the determination of the damping time of a certain paint film.

2. Instrument structure diagram

Structure: QHD pendulum damping Tester is mainly divided into the following parts.

(1) Instrument base: used to support the test plate and the pendulum rod, there is no vertical bearing rod on the seat, and is connected with the water platform with a working plane.

(2) Pendulum: Konig pendulum

(3) The technical device automatically records the number of swing angles required.

(4) Instrument cover

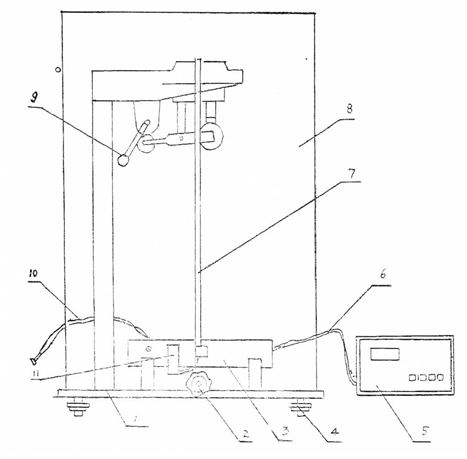

1. Host    2. Starting the handle    3. a ruler    4. Adjust the foot horizontally    5. Timer    6. Photoelectric signal line    7. Pendulum    8. an instrument cover    9. a supporting plate control handle    10. a shutter release line    11. a photocell rack

Packing list：host X1, K pendulum X1, instrument cover X1, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
