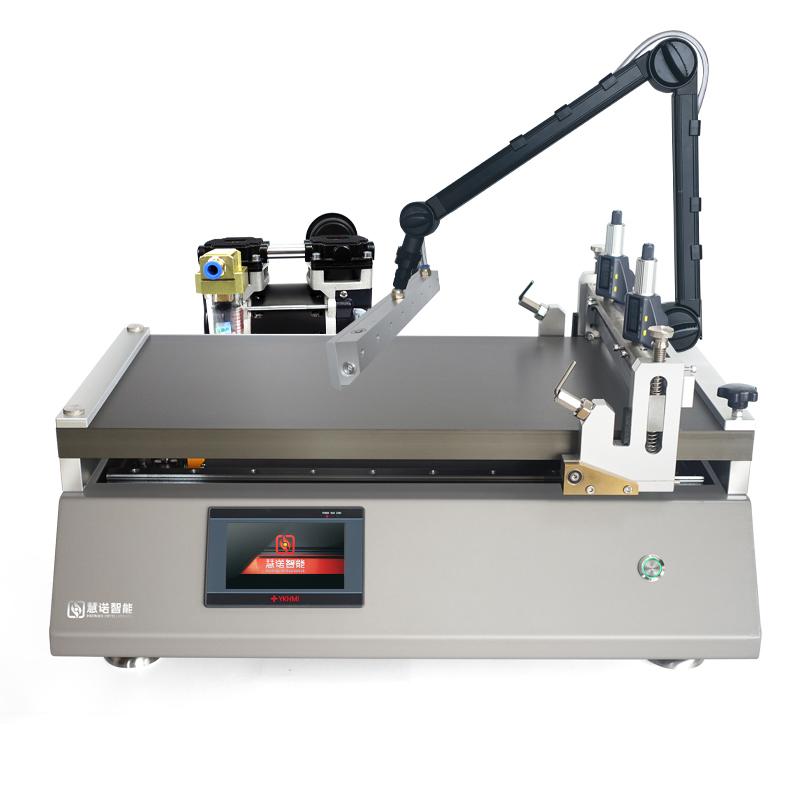

HuiNuo TM3300AK/02 Perovskite Special Automatic Film Applicator with Air Knife + Air Knife Holder 40 * 30cm
SE
TM3300AK/02
-
HuiNuo TM3100AK/01 Perovskite Experimental Film Applicator Bar & drawdown blade heating coater$ 4113.00SE -
China Perovskite Experimental Film Applicator TBJ-X3-ABO2 with imported bar with air knife + air knife double bracket$ 5356.00SE -
China Perovskite Experimental Film Applicator TBJ-X3-ABO with imported bar with air knife + air knife bracket$ 5045.00SE
HuiNuo TM3300AK/02 Automatic Film ApplicatorSPEC
HuiNuo TM3300AK/02 Automatic Film ApplicatorDetails
HuiNuo TM3300AK/02 Automatic Film ApplicatorPacking list
- SKU
- NB048575
- Coating Method
- Bar + drawdown blade
- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- Vacuum chuck + fixture
- Coating table material
- Surface hard treatment aluminum alloy
- Coating table size
- 600*300mm
- Effective coating Area
- 400 * 300Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers Film thickness is different, with high Accuracy imported bar
- Meyer rod coating Accuracy
- ±0.001mm
- Drawdown blade Spreader Film thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade Spreader width
- 300mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Vacuum chuck size
- 480 * 260Mm (can be customized)
- Vacuum Aperture
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Vacuumpump pumping rate
- 5.4m3/h
- Ultimate Vacuum
- 50KPa
- Vacuumpump power
- 180W
- Vacuumpump Weight
- 7.1kg
- Heating method
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Heating temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Standard trend gap
- 0.05Mm-0.08mm (can be customized up to 3mm)
- Air knife Accuracy
- 0.01mm
- operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 100V~220V/50~60HZ
- power
- 1800w
- Dimensions
- 658*438*400mm
- Weight
- 40kg
Overview

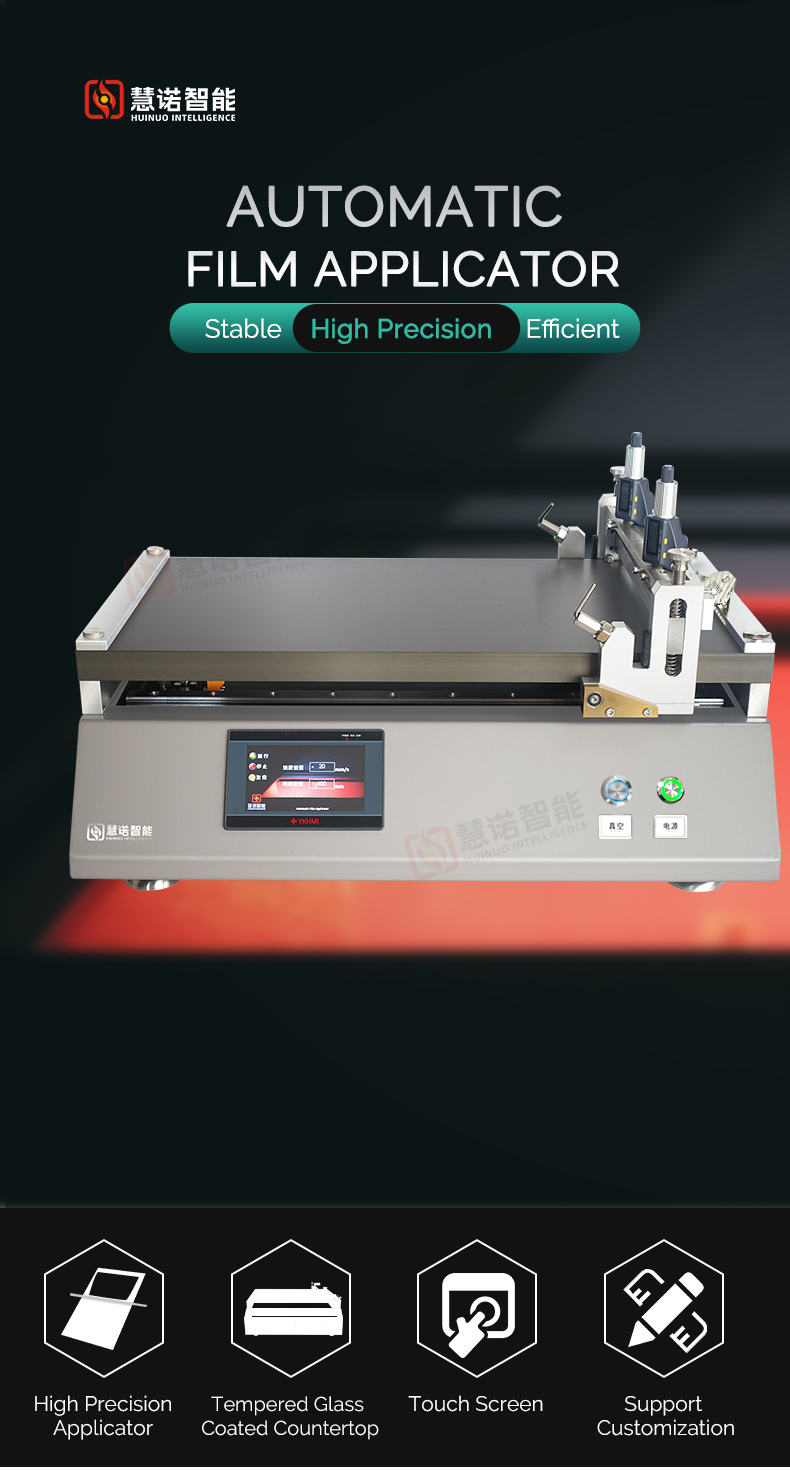

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
TM3300AK/02 perovskite special coating machine is a wire rod scraper heating vacuum adsorption coating machine with air knife + air knife bracket, which is specially used for laboratory preparation of perovskite cell films, the bottom plate is heated, which can be heated to 180 °C, supports two coating methods of wire rod and scraper, and the effective coating size is 300*400mm.
Application
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

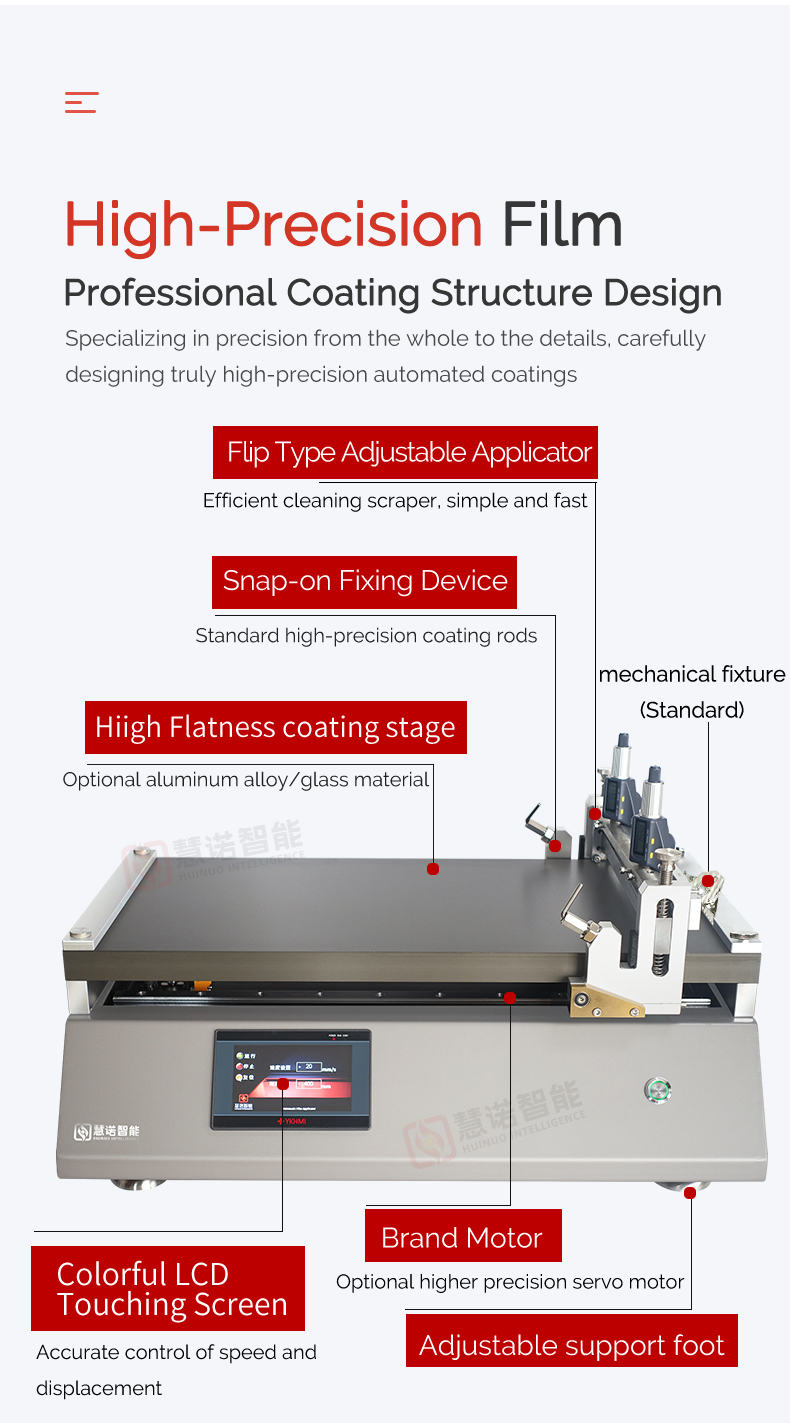

Features

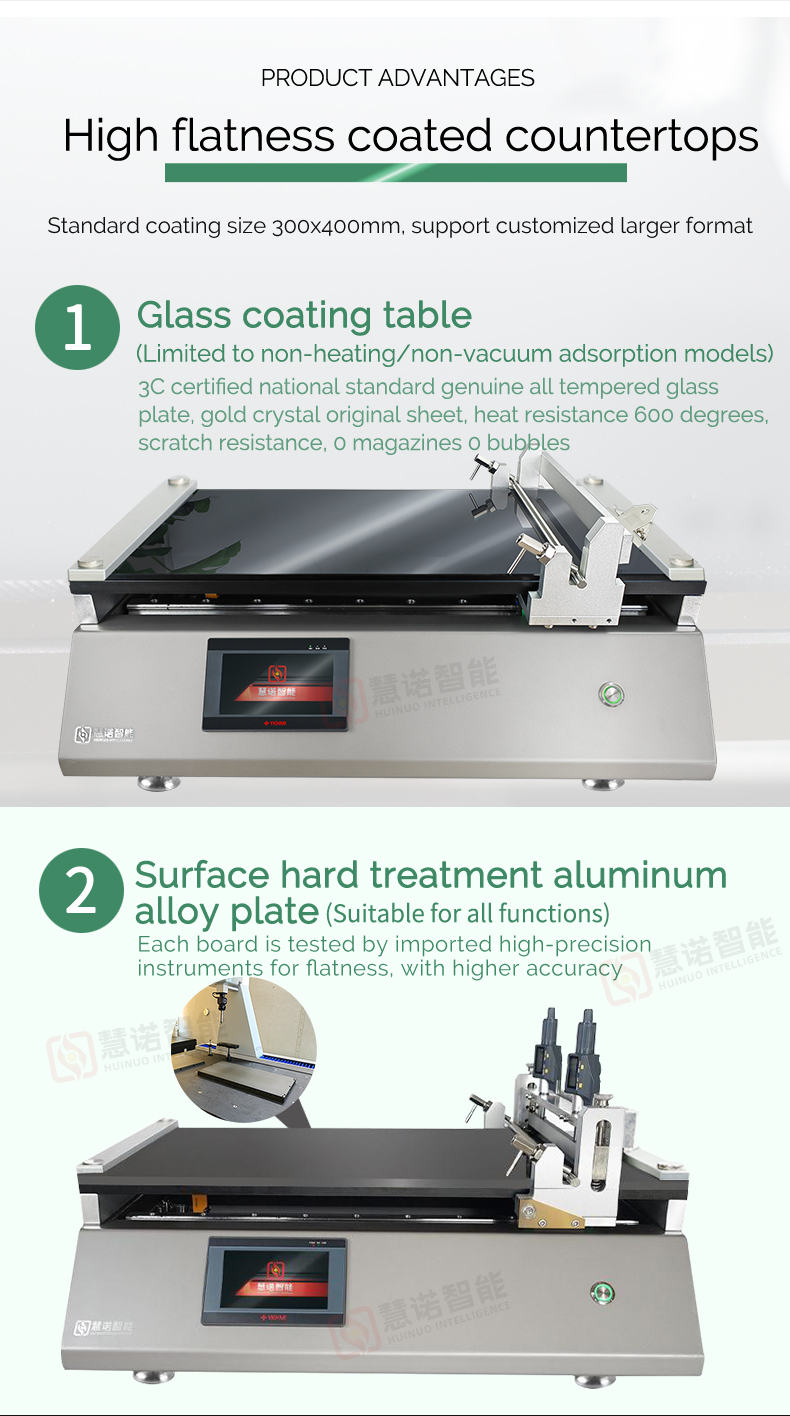

1）The surface is hard treated aluminum alloy countertop, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy

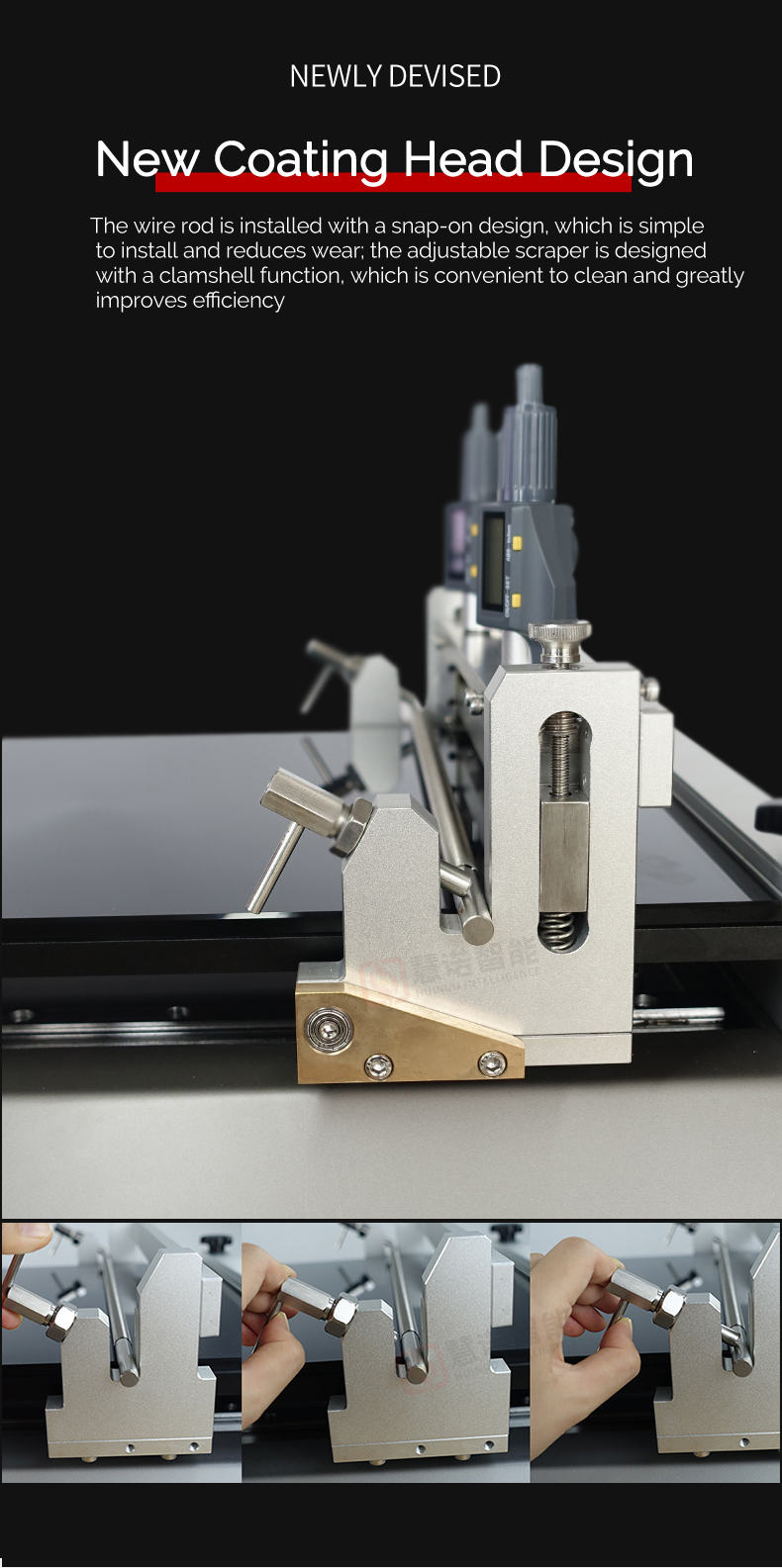

3) Clamshell doctor blade coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate

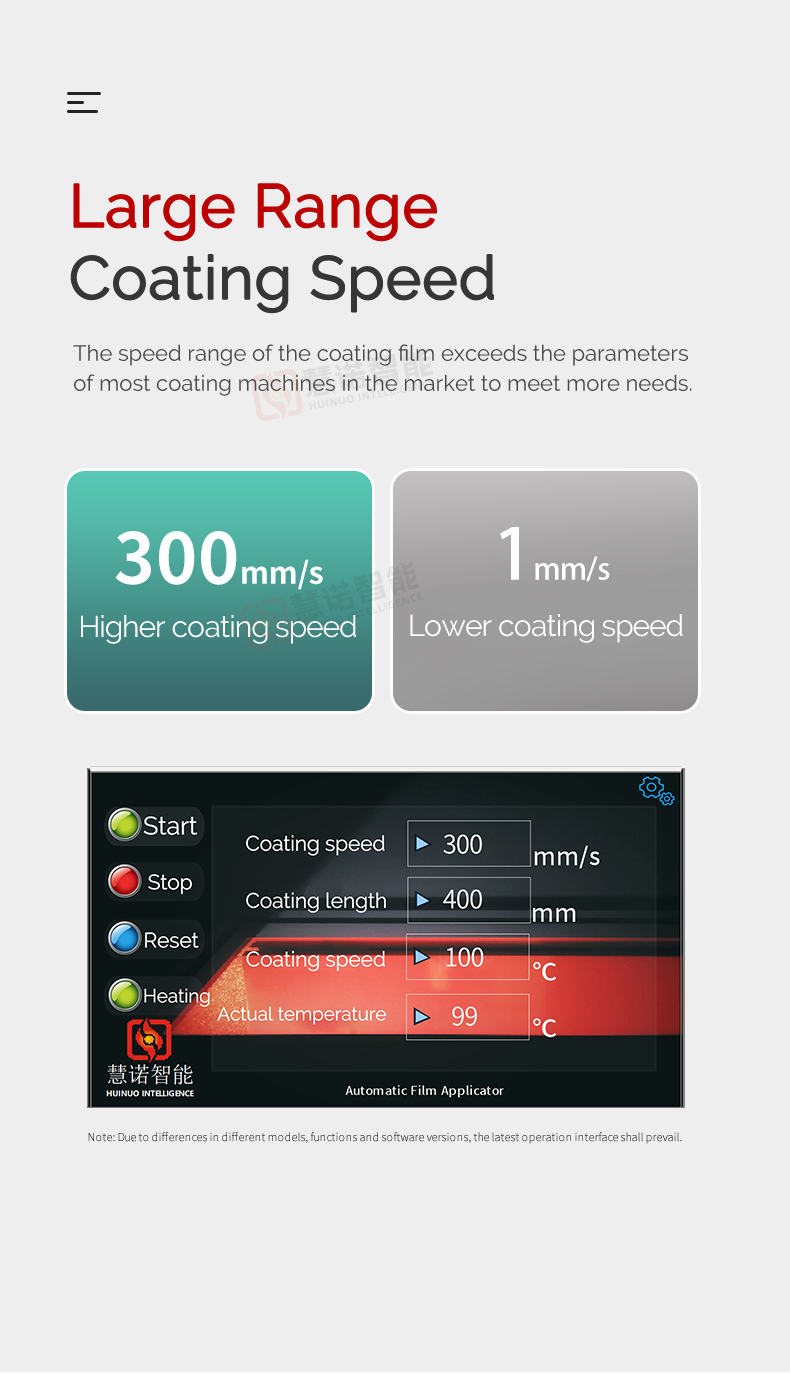

6) The coating length and coating speed can be adjusted freely

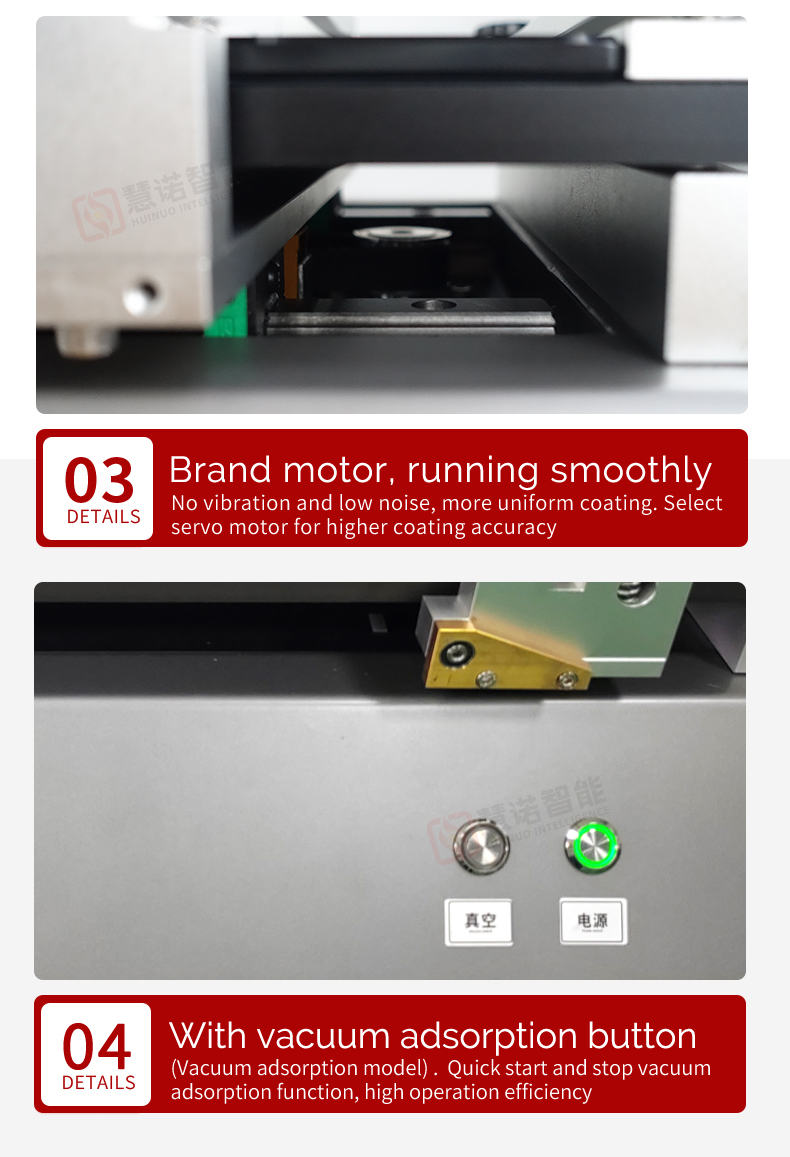

7) With vacuum adsorption and heating function
