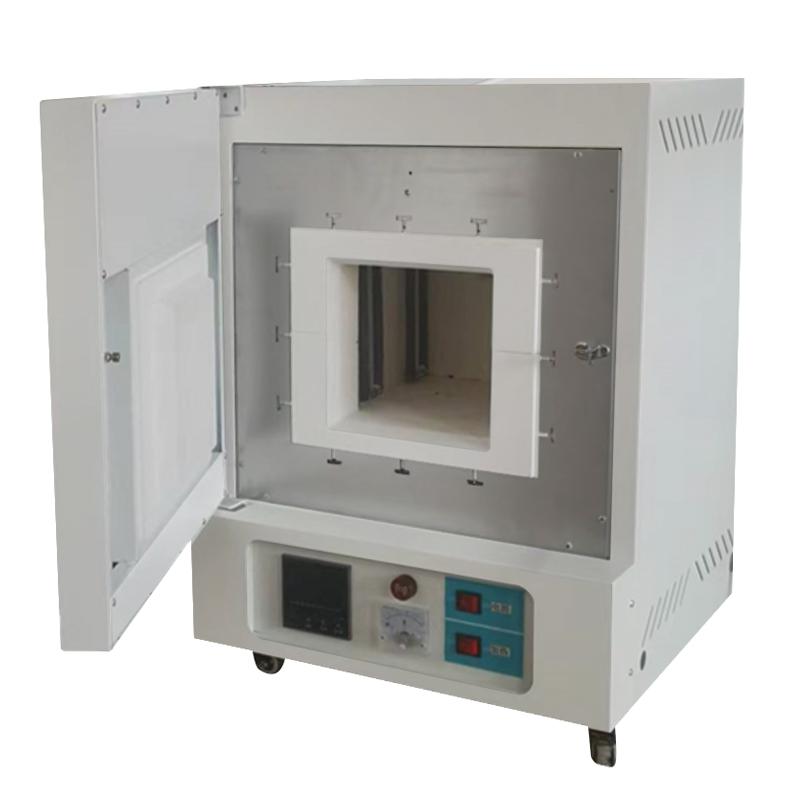

BOZHEN BZ-6-14TP integrated high temperature muffle furnace 1400 degrees
BZ-6-14TP
BoZhen BZ-6-14TP Integrated high temperature muffle furnace 1400 degreesSPEC
BoZhen BZ-6-14TP Integrated high temperature muffle furnace 1400 degreesDetails
BoZhen BZ-6-14TP Integrated high temperature muffle furnace 1400 degreesPacking list
- SKU
- NB048586
- Power Supply
- AC220V
- Furnace size
- 300 * 200 * 200Mm (depth, width and height)
- Dimension
- 640 * 580 * 830Mm (depth, width, height)
- Rated power
- 6KW
- Weight
- 55KG
- Heating element
- silicon carbide rod
- Temperature measuring element
- S Type Platinum Rhodium Thermocouple
- Temperature control mode
- Temperature Control system adopts artificial intelligence adjustment technology, with PID adjustment, self-tuning function, 30-stage temperature raising and cooling program.
- Common temperature
- ≤1300℃
- Limit temperature
- 1400℃
- recommended Heating rate
- ≤20℃/min
- Thermostatic Accuracy
- ±2℃
- main accessories
- 1 door brick, 1 crucibletong, and a pair of high temperature gloves
- Optional accessories
- Furnace, all kinds of corundum crucible, high temperature gloves, computer control software, paperless recorder, etc.
Main use and scope of application
Universities, scientific research institutes, and industrial and mining enterprises are used for powder roasting, ceramic sintering, high-temperature experiments, material processing, and quality testing.
This product uses a silicon carbon rod as a heating element; Intelligent temperature control system, thyristor control, phase shift trigger; The furnace is made of high-quality 1600 type alumina polycrystalline fiber inorganic material formed by vacuum adsorption with imported technology; The furnace body is a double-layer furnace shell, which adopts air insulation technology and thermal induction technology to drive the intelligent air cooling system, and adopts soft start constant current control to prolong the life of the heating element.
Key functions and features:
1. The furnace is made of 1600 type alumina polycrystalline fiber inorganic material formed by vacuum adsorption, which has good thermal insulation performance, durability, high tensile strength, no trash balls, high purity, and the energy-saving effect is obviously better than that of ordinary refractory materials;
2. The heating element is made of silicon carbon rod, which has high heating efficiency and long service life;
3. The design of the assembled furnace is adopted, which is durable and does not collapse after strict thermal calculation, and the furnace is equipped with a breathing hole, which can reduce the shrinkage of the furnace and prolong the service life of the furnace;
4. Side-opening furnace door, with the function of opening the door and powering off;
5. The data conversion interface is reserved, which is interconnected with the computer, and can realize the functions of remote control, real-time tracking, historical record, and output report of a single or multiple electric furnaces; Paperless recording device can be installed to realize data storage and output; 【Optional】
6. It has the function of over-temperature alarm power-off and leakage protection measures, and the operation is safe and reliable.
