Specifications
| production speed | 0-5M/min |
| maximum discharge | Max.550mm |
| Coating size | Max.500mm |
| Coil diameter | 3 inches. |
| Power | 1.4KW |
| Power Supply | Three-phase 220V |
| unroll | With tension control |
| Control system | Touch screen (Kunlun Tongtai) |
| inflated shaft | 2 |

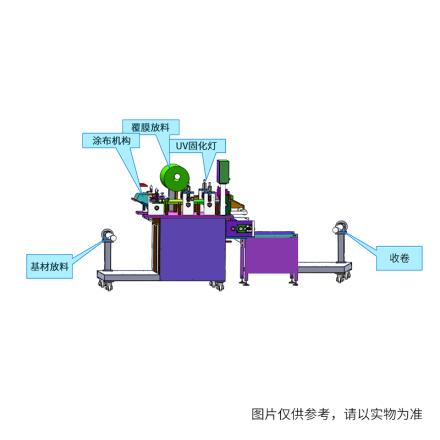

| Spreader process | Unwinding → scraping → film laminating → UV curing → winding |
| Coating method | scraping |
| UV curing length | 1000mm |
| UV curing area | 500*1000mm |
| UV light main peak wave | 365nm |
| UV UV Irradiance Intensity | 1-30mw/cm2 |
| UV UV curing Power | Adjustable |
| switch | Aviation plug/separate switch |
Packing list
Host x1, Spreader head x1, rewinding and unwinding device x1, deviation correction system x1, film laminating device x1, UV curing device x1, manual x1, Encasement list x1, certificate of conformity x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/48595/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
