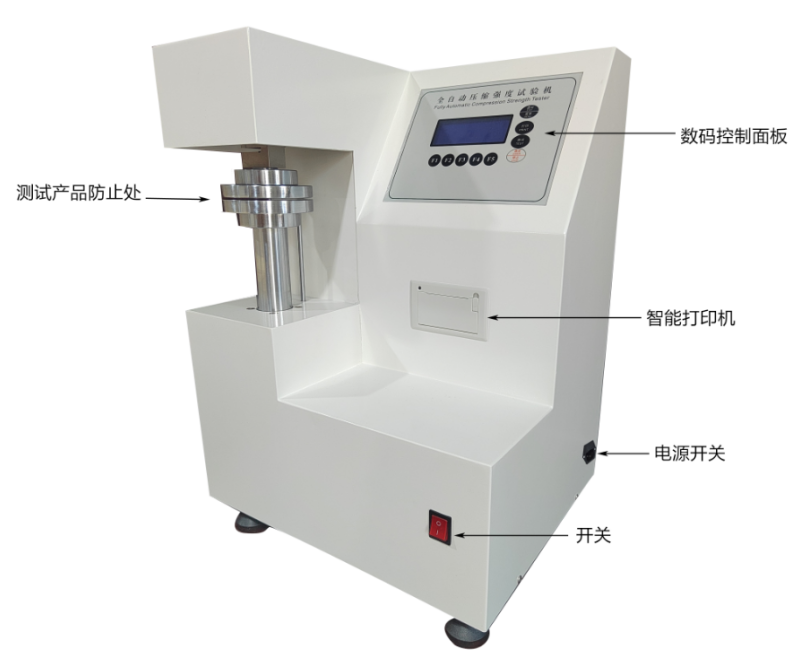

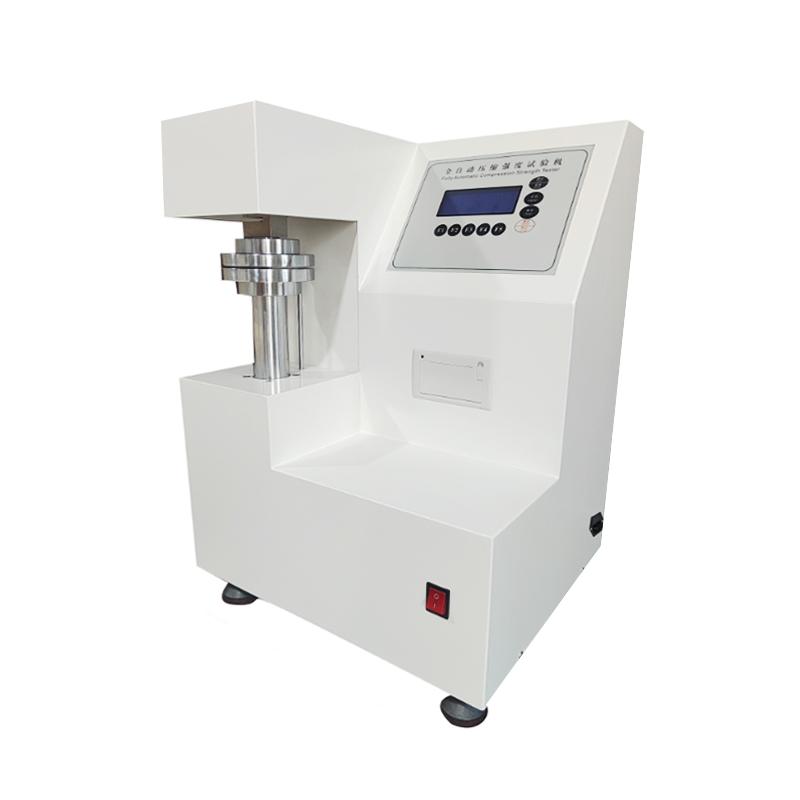

Patek Jushi LY-8503 Automatic Compressive Strength Testing Machine Cardboard Side Pressure Ring Compression Strength Tester

LY-8503

Automatic compressive Strength Tester

Accuracy +/- 1%, the system automatically calculates the ring compression strength and side compression strength. After the test is completed, there is an automatic return function, with its own Encasement stacking test function, and three settable speeds.

Product introduction

Intelligent cardboard edge Compressive Strength Tester, also known as computer-controlled compression Tester, cardboard compression Tester, electronic compression Tester, edge pressure Tester, and ring pressure Tester, is a basic instrument for testing the compressive strength of cardboard/paper (i.e. paper packaging testing instrument). It is equipped with various fixture accessories to test the ring compression strength of raw paper, the flat compression strength of cardboard, the edge compression strength, and the bonding strength, so that paper production enterprises can control production costs and improve product quality. Its performance parameters and technical indicators comply with relevant national standards.

execution standard

GB/T 2679.8-1995 "Determination of annular compressive strength of paper and paperboard";

GB/T 6546-1998 "Determination of Edge Compression Strength of Corrugated Board";

GB/T 6548-1998 "Determination of adhesive strength of corrugated board";

GB/T 2679.6-1996 Determination of flat compressive strength of corrugated base paper;

GB/T 22874 "Single-sided and single-corrugated cardboard, determination of flat compressive strength"

Equipped with corresponding auxiliary equipment, the following tests can be carried out

Equipped with ring compression test center plate and ring compression special sampler, cardboard ring compression strength test (RCT);

Equipped with edge pressing (bonding) sample sampler and auxiliary guide block, corrugated board edge pressing strength test (ECT) was carried out;

Equipped with peel strength test stand, corrugated board adhesive (peel) strength test (PAT);

Equipped with flat compression sample sampler, corrugated board flat compression strength test (FCT);

Base paper laboratory corrugated compressive strength (CCT) and compressive strength (CMT).

Product features

The system automatically calculates the ring compression strength and side compression strength, without the need for users to calculate manually, reducing workload and errors;

With its own packaging stacking test function, it can directly set the force and time, and automatically stop after the test is completed;

After the test is completed, there is an automatic return function, which automatically judges the crushing force and automatically saves the test data;

Three adjustable speeds, full Chinese LCD display operation interface, a variety of units to choose from.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
