CHINA LS193 Small aperture Glossmeter 60 degree Gloss Meter Measurable surface or small object

LS193

Glossmeter

3 * 6Mm small measurement aperture, used for gloss measurement of curved surfaces or ultra-small objects, 60 ° general angle, the range can reach 1000GU, the accuracy can reach the national first-class working machine standard, and can pass Measurement.

Introduction

LS193 is a small aperture handheld gloss meter, which is specially used for gloss measurement of curved surfaces or ultra-small objects, with a 60° universal angle design, and a maximum capacity of 1000GU. The instrument is simple to operate, that is, it is put and measured, no need to press the button to operate, the instrument can be set to QC mode in addition to the ordinary mode, which can realize QC rapid detection. The instrument is also equipped with powerful PC software, which can measure online, intelligently count the data and generate measurement reports.

Features

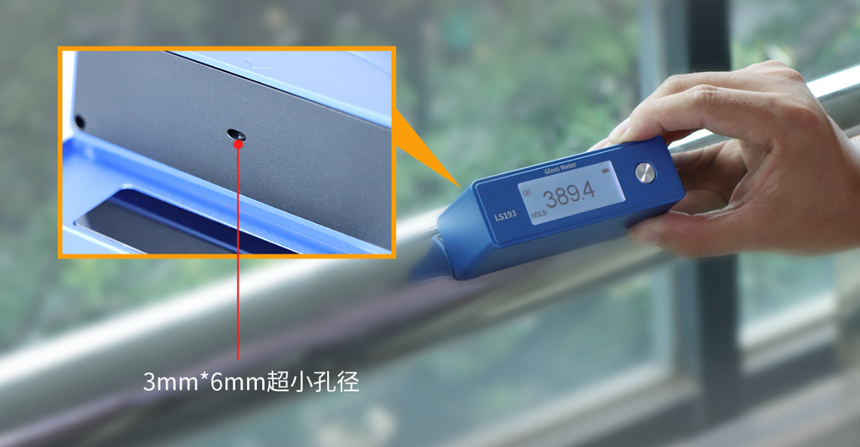

1. The measuring aperture of the instrument is only 3*6mm, which is suitable for measuring the gloss of curved surfaces or ultra-small objects.

2. The instrument has ambient temperature compensation, the value is stable, and it allows long-term calibration. THE REPEATABILITY IS VERY GOOD, IN THE MEASUREMENT RANGE OF 0-100GU, THE REPEATABILITY CAN REACH ±0.2GU; Repeatability up to ±0.2% of reading over the 100-1000GU measurement range.

3. LS193 gloss meter can ensure that it can pass the test of any metrology institute and meet the standard of national JJG696-2002 first-class working machine, which is completely comparable to the test data of imported gloss meter.

4. The instrument supports the switching between normal mode and QC mode to adapt to different application scenarios. Normal mode is ready to measure, fast reading, no cumbersome operation; The QC mode can customize the upper and lower limits, which can realize the rapid detection of incoming materials.

5. The instrument is equipped with special host computer software (only Windows system is supported), which supports PC setting mode and upper and lower limit values and online testing, and can generate test reports from the test data.

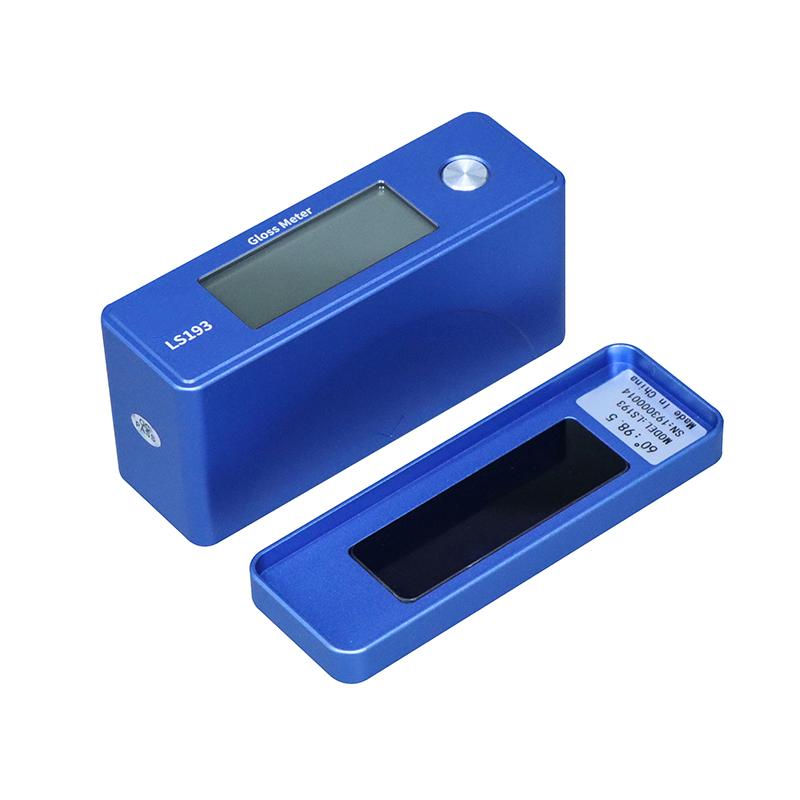

6. It adopts strong magnetic bottom cover design, which is integrated with the calibration plate, and can be calibrated at start-up, without worrying about the loss of the calibration plate.

7. The instrument has a built-in high-performance rechargeable lithium battery, ultra-low power consumption, and can be used for more than 48 hours on a single charge.

8. The fuselage is slim, compact and portable, with an aviation aluminum shell, industrial style design, and super good texture.

The products meet the standards

LS193 gloss meter meets the following standards: ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807, all indicators of the instrument meet the requirements of the first-class working machine in the national JJG 696-2002 "Mirror Gloss Meter and Gloss Plate" metrology verification regulations.

How to use:

Software downloads

By connecting to a PC via USB, you can use the gloss meter PC software. (PC software only supports Windows operating system) The software can perform functions such as online measurement, parameter setting, report generation and printing.

It can be installed in the following ways:

1) In the product packaging box, the included U disk is equipped with PC software, which can be run directly without installation.

2) Download the software online to the local computer, decompress it and run it directly

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
