CHINA LS192 high-precision Glossmeter 60 °/1000GU Measurement

LS192

Glossiness Meter

High-precision, Measurement, 60 ° universal projection angle, large range 0~1000GU, in line with the national standard GB/T 9754, to meet the requirements of a working machine, no button operation, equipped with PC software.

Introduction

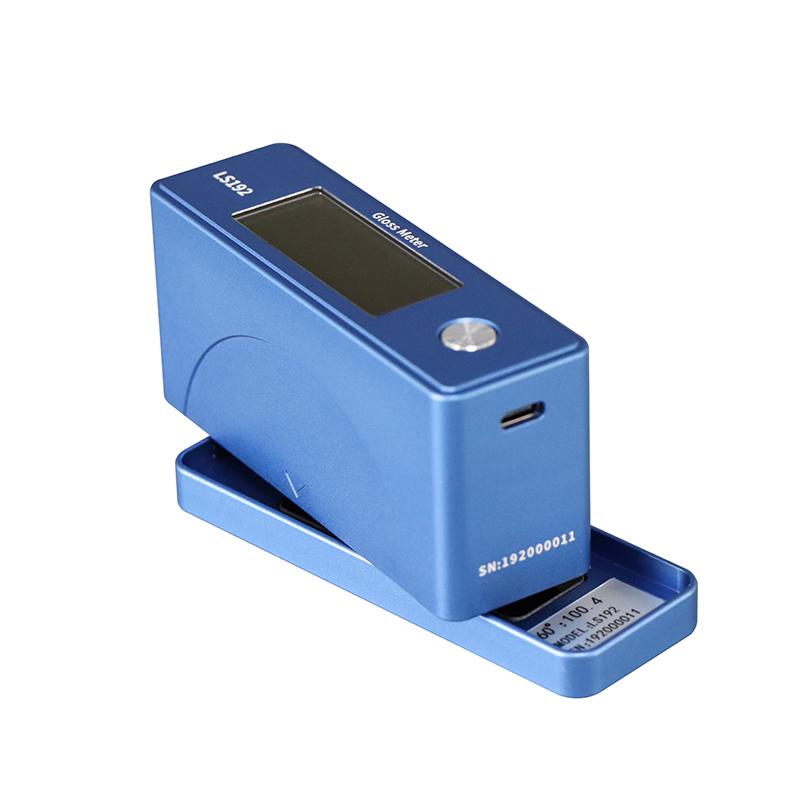

LS192 IS A HANDHELD GLOSS METER WITH A 60° UNIVERSAL ANGLE DESIGN AND A MEASURING RANGE OF UP TO 1000GU, WHICH IS WIDELY USED FOR SURFACE GLOSS TESTING OF PAINTS, COATINGS, INKS, PLASTICS, PAPER, CERAMIC TILES, CERAMICS, STONES, METALS AND ELECTROPLATING LAYERS. The instrument is simple to operate, that is, it is put and measured, no need to press the button to operate, in addition to the ordinary mode, it can also be set to QC mode, which can realize QC rapid detection. The instrument is also equipped with powerful PC software, which can measure online, intelligently count the data and generate measurement reports.

Features

1. Simple operation, ready to use when you get started, the instrument is put on and measured, and the data is locked with one key, no cumbersome settings are required.

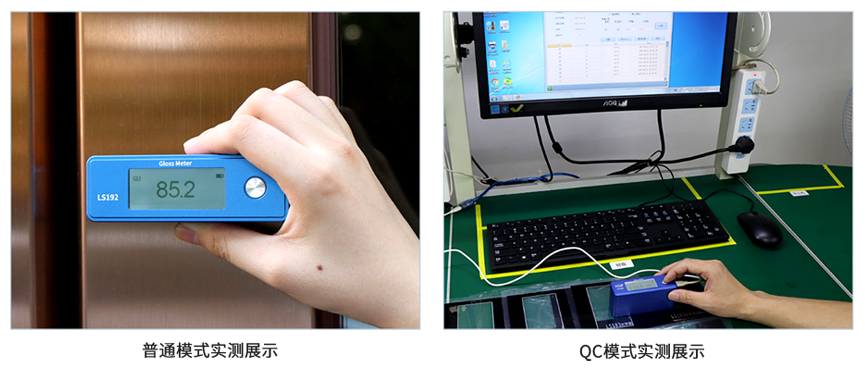

2. The instrument can be switched to normal mode or QC mode to adapt to different application scenarios. Normal mode, instant measurement, fast reading; The QC mode can customize the upper and lower limits and judge whether the data is qualified or not, which can realize the rapid detection of incoming materials.

3. The instrument has the function of ambient temperature compensation, the value is stable, and it allows long-term calibration. THE REPEATABILITY IS VERY GOOD, IN THE MEASUREMENT RANGE OF 0-100GU, THE REPEATABILITY CAN REACH ±0.2GU; Repeatability over the 100-1000GU measurement range ± 0.2% of reading

4. LS192 gloss meter can ensure that it can pass the test of any metrology institute, meet the standard of national JJG696-2002 first-class working machine, and can be completely comparable to the test data of imported gloss meter.

5. Equipped with special host computer software (only support Windows system), support PC setting, online measurement, and can print the test results test report.

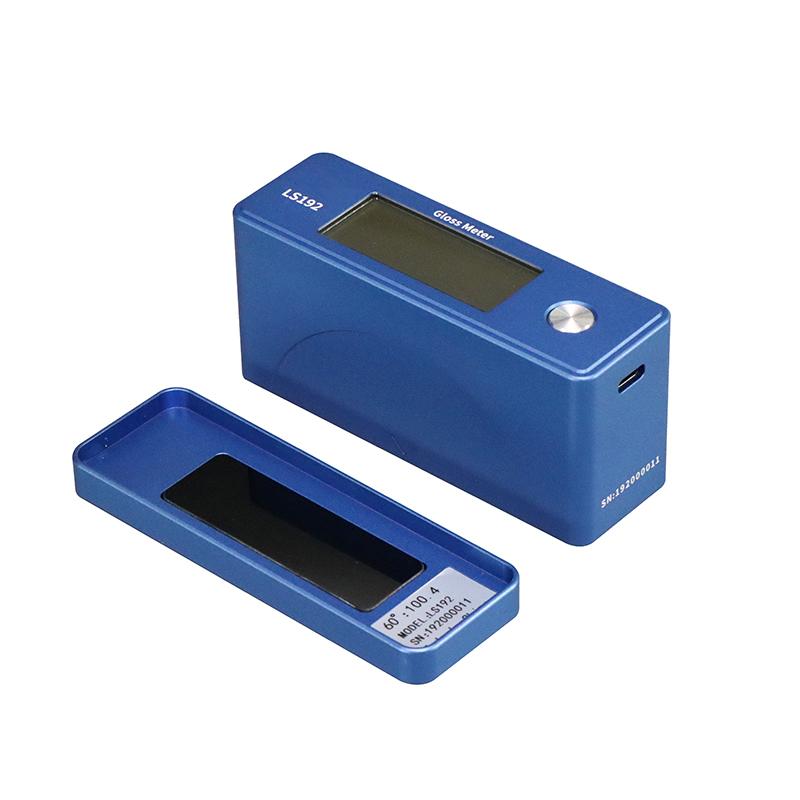

6. Strong magnetic bottom cover design, 2-in-1 with standard board, can be calibrated at start-up, no need to worry about the loss of calibration board.

7. Built-in high-performance rechargeable lithium battery, ultra-low power consumption of the instrument, can last more than 48 hours on a single charge.

8. The fuselage is slim, compact and portable, with an aviation aluminum shell, industrial style design, and super good texture.

Meets standards

LS192 gloss meter conforms to the following standards: ISO2813, ISO7668, ASTM D523, ASTM D2457, DIN 67530, GB/T9754, GB/T13891, GB/T7706, GB/T8807, all indicators of the instrument meet the requirements of the first-level working machine in the national JJG 696-2002 "Mirror Gloss Meter and Gloss Plate" metrology verification regulations.

Software downloads

By connecting to a PC via USB, you can use the gloss meter PC software. (PC software only supports Windows operating system) The software can perform functions such as online measurement, parameter setting, report generation and printing.

It can be installed in the following ways:

1) In the product packaging box, the included U disk is equipped with PC software, which can be run directly without installation.

2) Download the software online to the local computer, decompress it and run it directly

Packing list：Glossmeter x1, base x1 with standard board, USB data cable x1, charger x1, special lens cleaning cloth x1, user manual x1, product certificate x1, warranty card x1, lens paper x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
