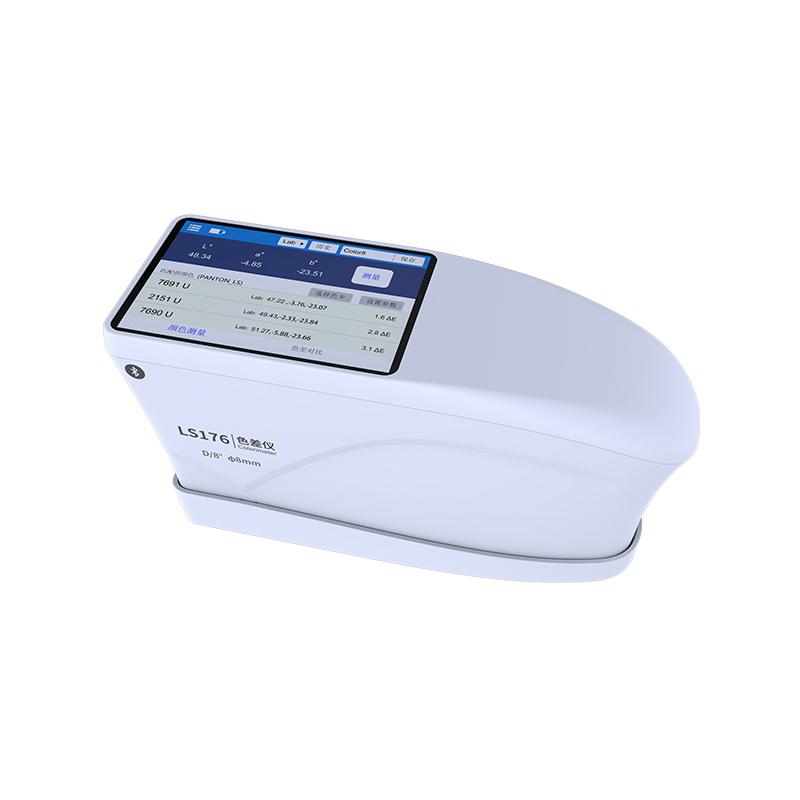

CHINA LS176 Colorimeter Colorimeter

LS176

Colorimeter

Measurement diameter 8mm, in line with the national first-class machine standard, providing professional Light spectrum reflectance Linear dispersion, a variety of Color space and Color difference formula can be selected, can measure whiteness, yellowness and other Color parameters.

Introduction

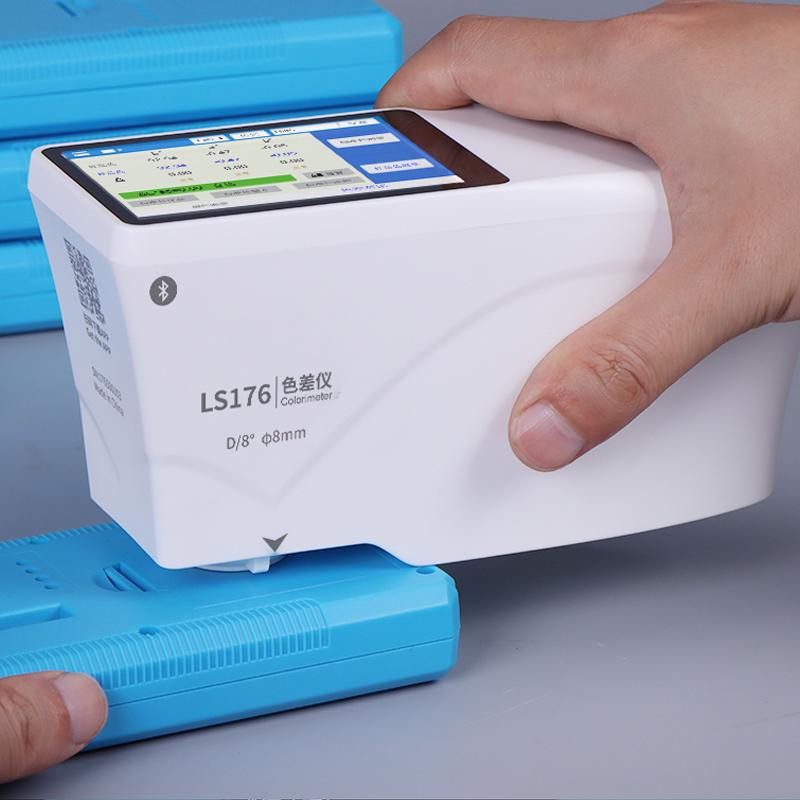

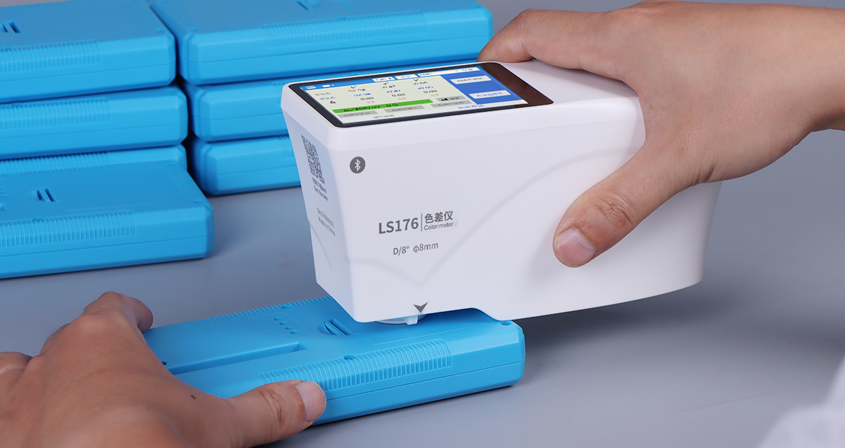

LS176 is a handheld multi-function Colorimeter, which is equipped with a 3.5-inch IPS color screen and capacitive touch screen for a better operating experience. The instrument has integrated multiple Color Charts, which can quickly match the measured color to a close Color Chart number. At the same time, the instrument has the function of color difference comparison, the color difference threshold can be set, and a variety of color difference formulas can be selected, which can realize QC rapid detection.

The instrument adopts full-spectrum LED light source and spectral sensor design, D/8 lighting mode, and has high measurement accuracy, which is widely used in automotive paint, hardware processing, stone, decorative materials, plastic and plastic industries.

Features

1、The instrument is equipped with an advanced spectral sensor, and a unique intelligent algorithm analyzes and processes the 8 bands of visible light to ensure the accuracy of the instrument.

2、The all-balanced LED light source is used to avoid the spectral loss of white LEDs in specific wavelength bands, making the measurement more accurate.

3. The instrument adopts the international general D/8 lighting mode, including specular reflection light (SCI), which has a wide range of applications.

4. All indicators meet the requirements of the first-class machine in the national JJG 595-2002 "Verification Regulations for Color Measurement and Colorimeter".

5. It can be connected to the APP to achieve color sharing on the APP.

6. With PC software, it has a stronger statistical analysis function of color difference, and can import and export instrument storage data.

7. 3.5-inch capacitive touch screen to create a good human-computer interaction interface.

8. It contains multiple electronic Color Charts, which can quickly match the closest Color Chart number, and the Color Chart matching accuracy is greater than 90%.

9. It has the function of QC detection, which can facilitate users to quickly evaluate the color accuracy according to the existing standards.

10. It can measure parameters including CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, yellowness-98, whiteness-98, whiteness-Gauz, whiteness-Hunter and so on.

11. Provide professional spectral reflectance curve, from which users can obtain the hue, saturation, depth and other information of the sample color.

Meets standards

GBT 3978-2008 Standard Illuminator and Geometric Conditions

GBT 3979-2008 Methods for measuring object color

GBT 7921-2008 Uniform color space and color aberration formulas

GBT 11186.1-1989 Methods for measuring the color of coating films Part 1: Principle

GBT 11186.2-1989 Methods for measuring the color of the coating film Part II: Color measurement

GBT 11186.3-1989 Methods for measuring the color of the coating film Part 3 Calculation of color difference

JJG 595-2002 V. R. of Color Colorimeter

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
