LS173 Handheld color difference meter Portable color difference meter 3.5 inch Touchscreen

SE
Equipped with 3.5-inch IPS color capacitive Touchscreen, Repeatability Delta E * ab ≤ 0.03, Measurement accuracy 0.01, built-in multiple electronic Color Chart, support for a variety of Color space and Color difference formula, equipped with measurement positioning plate to ensure accurate data.
$223.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT
Similar products

Factory LS173 Handheld color difference meterSPEC

Factory LS173 Handheld color difference meterDetails

Factory LS173 Handheld color difference meterPacking list

SKU
NB048620
Lighting method
D/8, including specular reflection (SCI)
Illuminant
Light spectrum LED Illuminant
Wavelength range
400-700nm
wavelength interval
10nm
Measurement caliber
8mm
Measurement condition
Illuminant D65, Field of View 10 °
Measurement time
About 1s
Color space
CIE Lab, LCh, Luv, Yxy, CMYK, RGB, Yellowness-98, whiteness-98, whiteness-Gauz, whiteness-Hunter, whiteness-R457, HSL, HSV, ITA, Light spectrum reflectance
Color difference formula
ΔE*ab、ΔE*uv、ΔE*94、ΔE*cmc(2:1)、ΔE*cmc(1:1)、ΔE*00、ΔE*cmc(1.4:1)
Repeatability
Standard Deviation Delta E * ab, within 0.03 (Measurement conditions: after preheating correction, the average value of 30 whiteboard measurements at intervals of 3s)
size
86mm X 62.5mm X 158mm
weight
Approx. 245g
Battery level
Rechargeable lithium battery 3.7V@4000mAh, single charge can be continuously measured 10000 times
display screen
480 × 320 point array IPS color screen
system language
Simplified Chinese, English
Charging port
USB(Type-C)
Temperature range
0~ 45 ℃, 0~ 85% RH (no condensation)
Temperature range
-25~ 55 ℃, 0~ 85% RH (no condensation)
LS173
Handheld color difference meter
Equipped with 3.5-inch IPS color capacitive Touchscreen, Repeatability Delta E * ab ≤ 0.03, Measurement accuracy 0.01, built-in multiple electronic Color Chart, support for a variety of Color space and Color difference formula, equipped with measurement positioning plate to ensure accurate data.

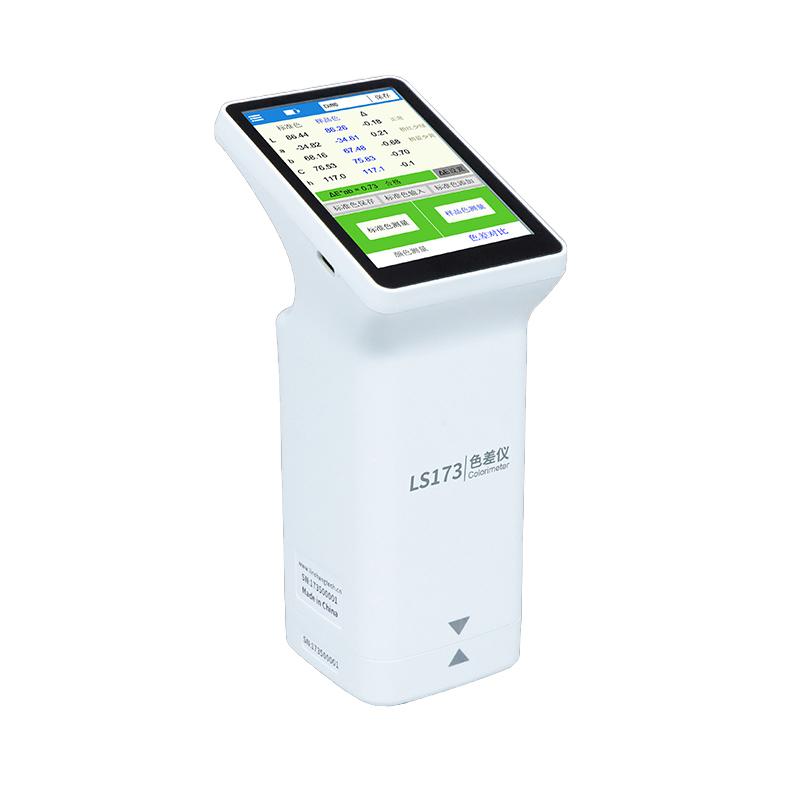

LS173 Handheld color difference meter Portable color difference meter 3.5 inch Touchscreen Picture

Introduction

LS173 is a portable multi-function Colorimeter, the instrument is equipped with a 3.5-inch IPS color capacitive touch screen, with a good operating experience. The instrument has integrated multiple Color Charts, which can quickly match the nearest Color Chart number for the measured color. At the same time, the instrument has the function of color difference, supports a variety of standard color addition methods, the color difference threshold can be set, and the color difference formula can be flexibly selected, which can realize QC rapid detection.

Features

1. Full coverage of Android/ios/Windows system, mobile phones and computers can read (limited to LS172B and LS173B Bluetooth models)

2. High precision, good repeatability, to ensure that it can pass the national measurement, standard deviation △E*ab≤0.03

3. Get started in five seconds, use it out of the box, quickly detect it in one second, know the color difference in two steps, and prompt the color bias according to the Lab value

4. Give away multiple electronic Color Charts, one-click measurement, quickly match color numbers, no need to buy thousands of Color Charts

5. Support the import and export of personal color library, localized data storage, no need to upload to the cloud, no personal privacy data security risks

6.Lab|RGB\CMYK and other color spaces and 6 kinds of color difference formulas are optional, and the color difference threshold can be set to meet the needs of various industries

7.3.5 inch IPS color large touch screen, the screen design angle is ergonomically designed, and the operation experience is very good

8. Built-in compensation optical path, stable value, allow long-term calibration, and 10,000 times of continuous measurement in full power state

Measured display

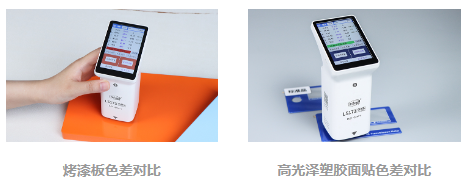

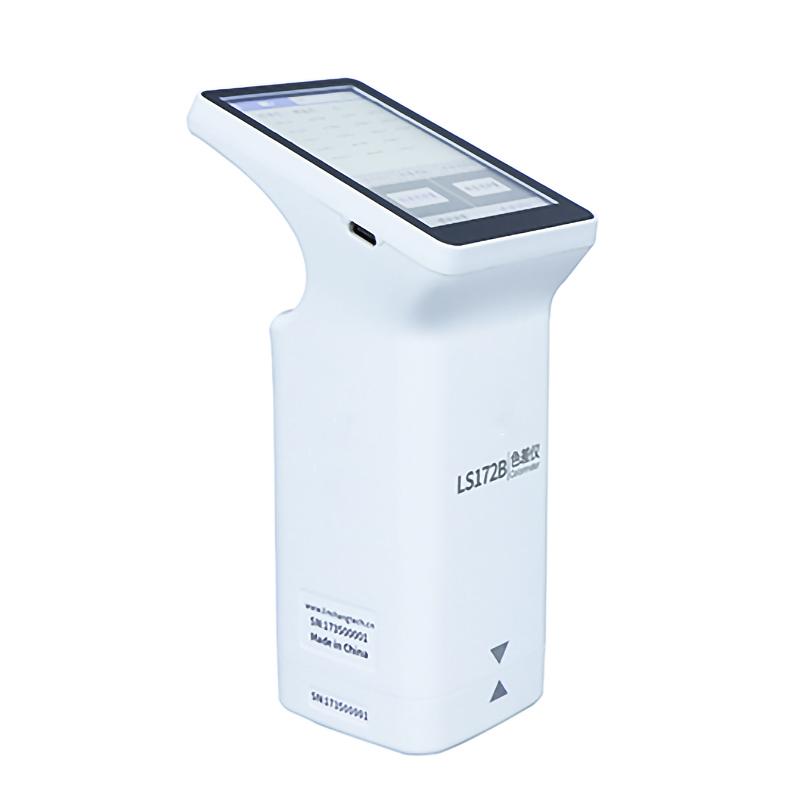

Domestic brand LS173 handheld Colorimeter details Figure 1

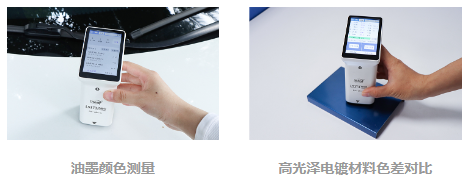

Domestic brand LS173 handheld Colorimeter details Figure 2

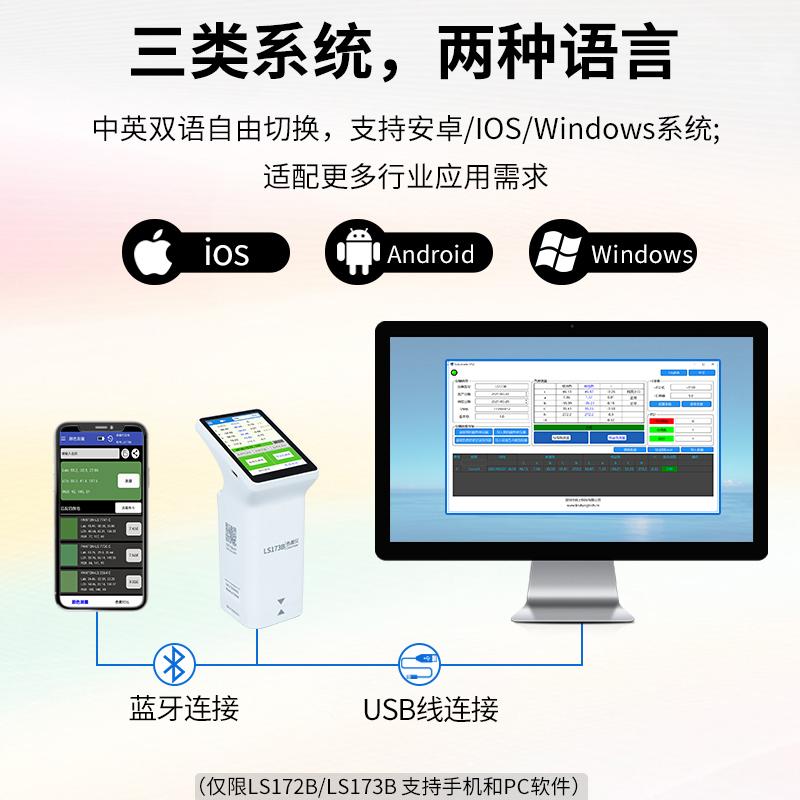

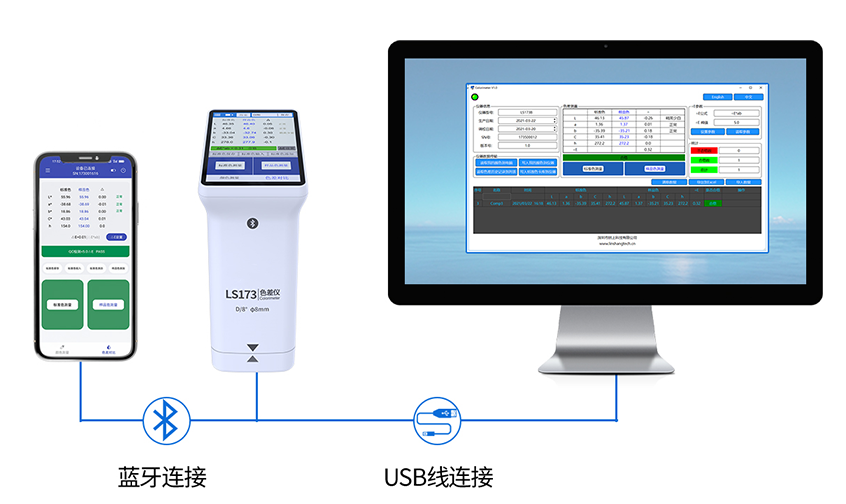

Mobile and PC software are standard

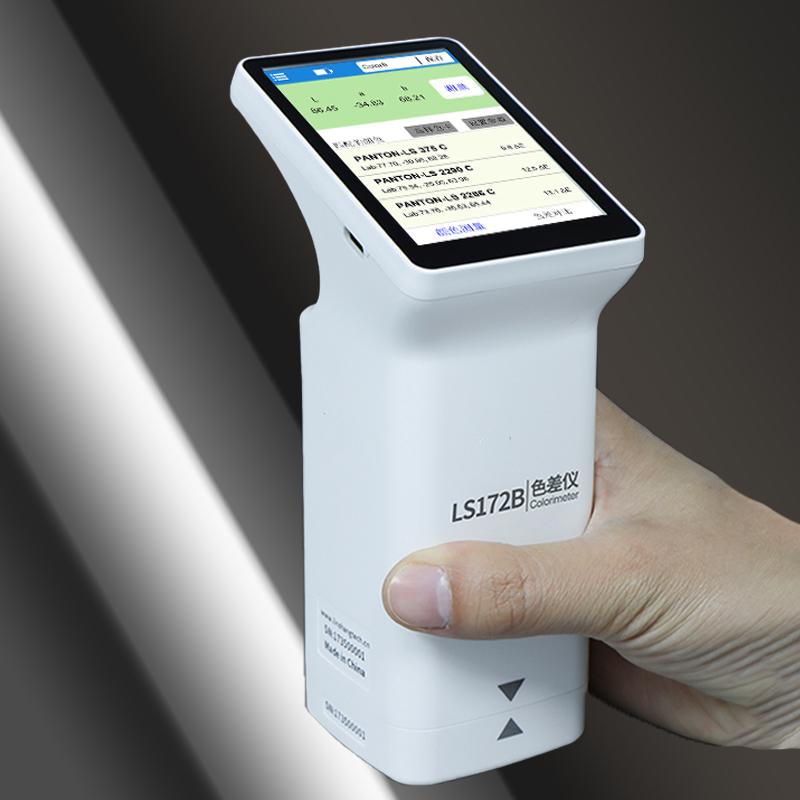

Domestic brand LS173 handheld Colorimeter details Figure 3

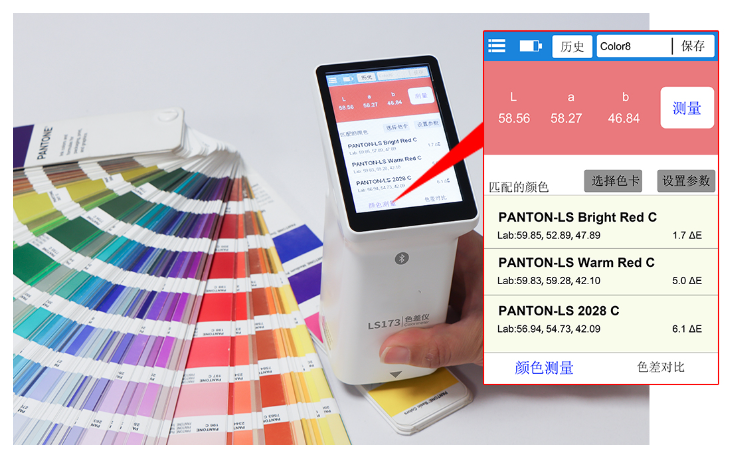

Built-in multi-book electronic Color Chart

The instrument has built-in multiple standard electronic Color Charts, which can quickly match the nearest 3 Color Chart numbers, with an accuracy rate of more than 90%.

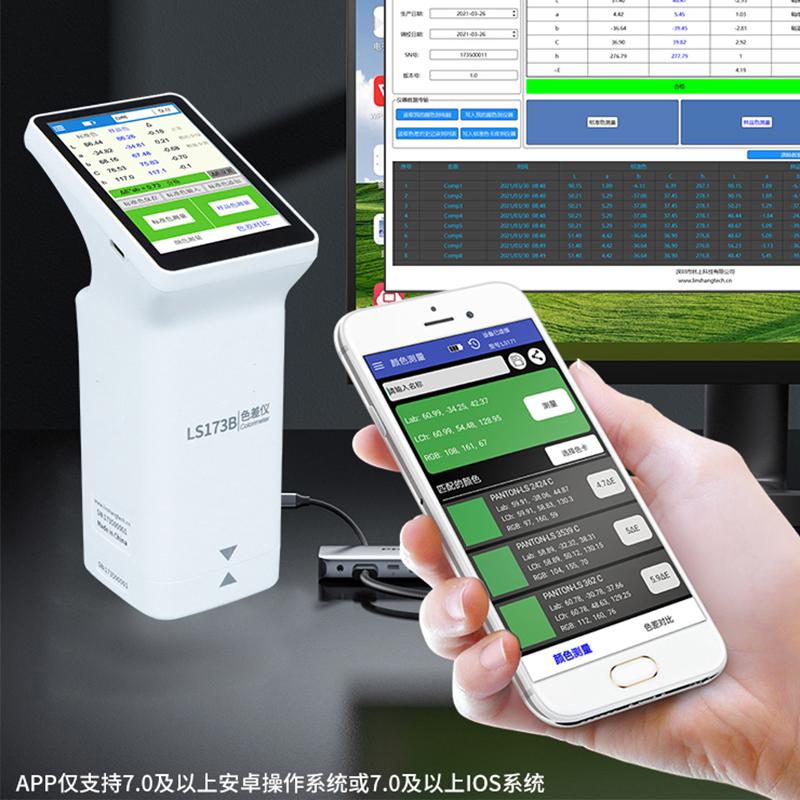

Domestic brand LS173 handheld Colorimeter details Figure 4

Measure the details

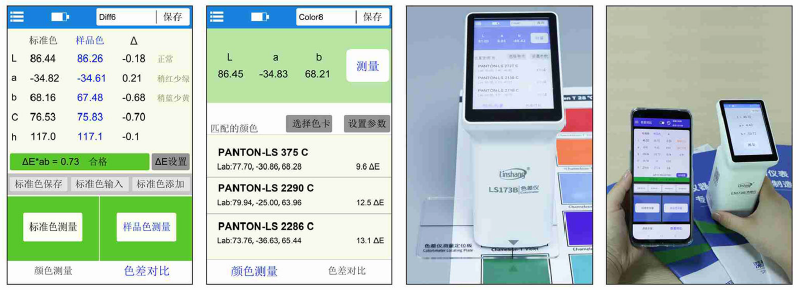

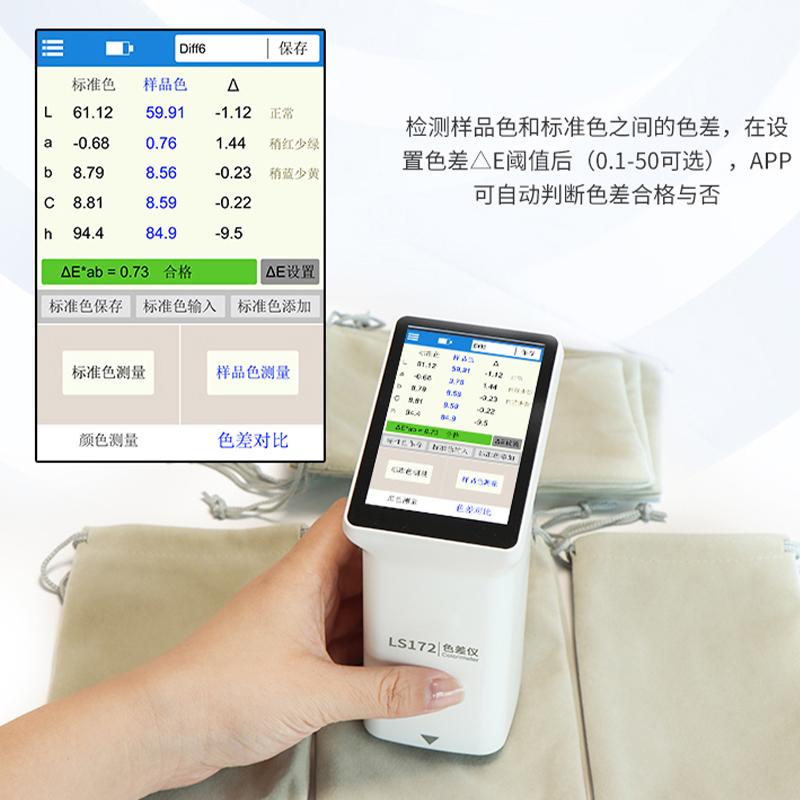

Domestic brand LS173 handheld Colorimeter details Figure 5

     Chromatic aberration contrast interface Color measurement interface Use positioning piece test Connect to mobile APP for testing

FAQ
QWe do Coating color matching, and we often need to compare Color and find Color Chart numbers. Is there a suitable instrument?
A Yes, the LS173 color difference meter is suitable for the Coating industry. It has built-in multiple electronic Color Charts, which can quickly match the closest Color Chart number after measurement, saving the trouble of searching for the actual Color Chart. At the same time, its D/8 light path structure and full Light spectrum LED Illuminant can accurately reflect the Color of Coatings under different lighting, and its measurement standard also conforms to the National Film Color Measuring method, which can help you accurately color matching and Color management.
