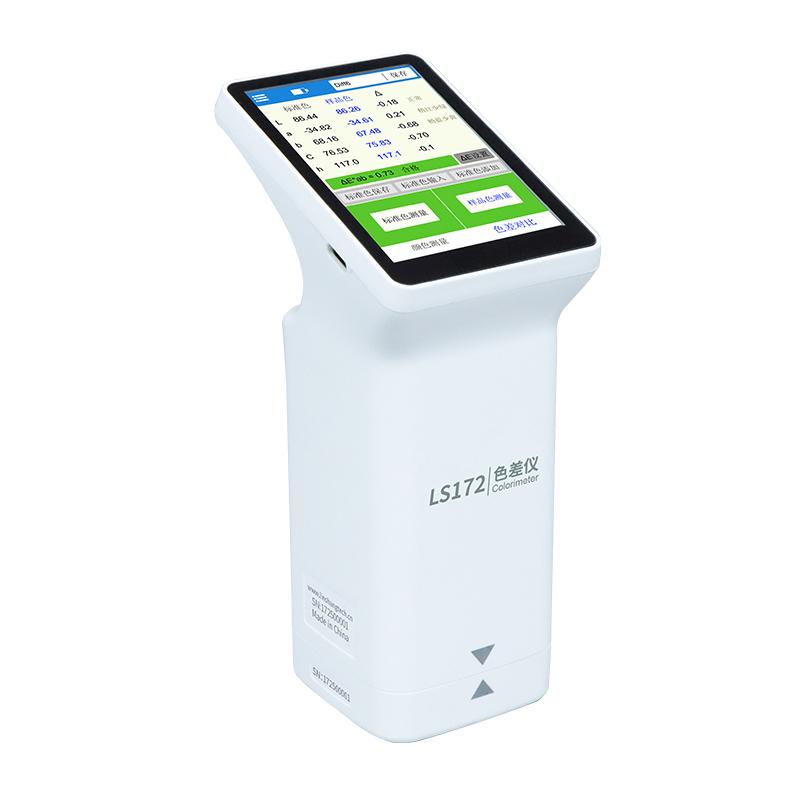

LS172 Handheld color difference meter Touchscreen color difference meter 3.5 inch IPS color screen

LS172

Handheld color difference meter

Equipped with 3.5-inch IPS capacitive Touchscreen, easy to operate in 5 seconds; Measurement accuracy 0.01, Repeatability Delta E * ab ≤ 0.03; Built-in multi-color card fast matching, support cloud data sharing and a variety of Color difference formula selection.

Introduction

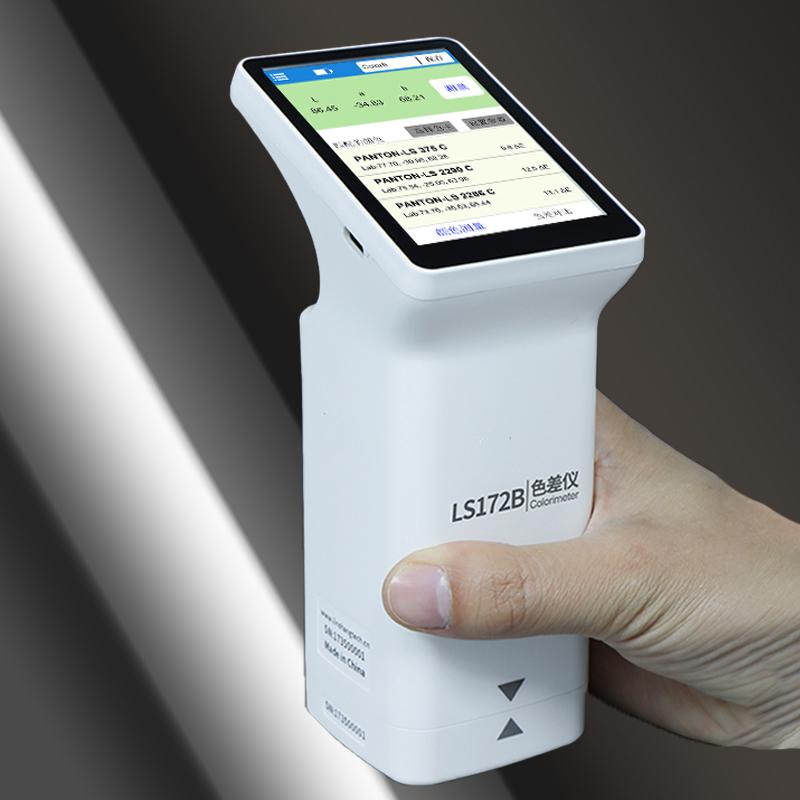

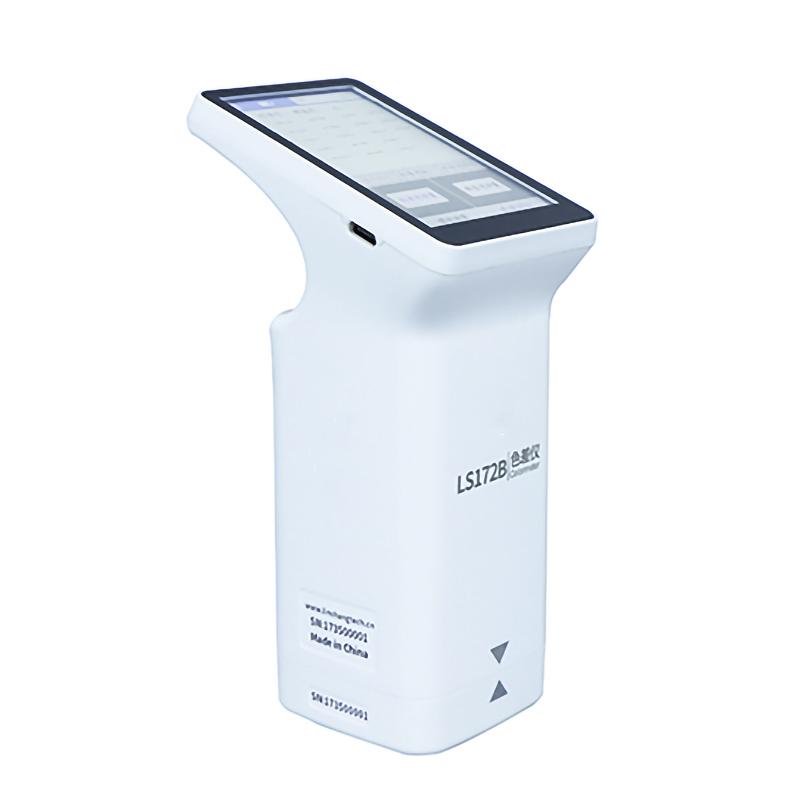

The touchscreen version of the Colorimeter LS172 is an instrument designed with a 45°/0° optical geometry, using a 3.5-inch IPS color screen and a capacitive touch screen, which has a good operating experience. The instrument integrates multiple natural Color Charts, which can quickly match the three Color Chart numbers that are close to the sample color, and has the function of color difference comparison, supports a variety of standard color addition methods, can set the color difference threshold, can flexibly select the color difference formula, and realizes QC rapid detection.

Application

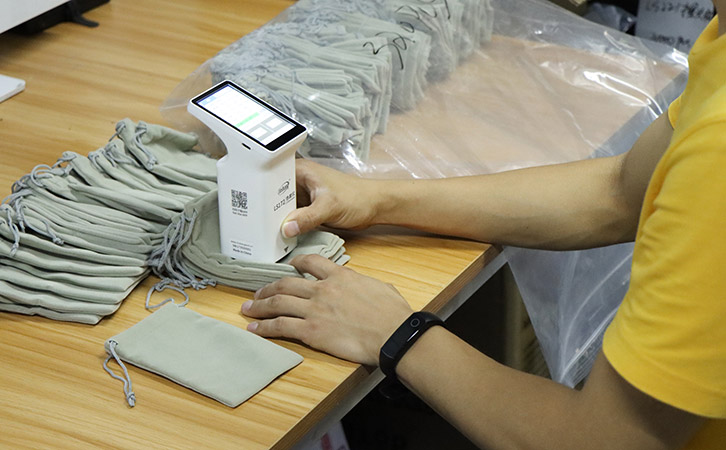

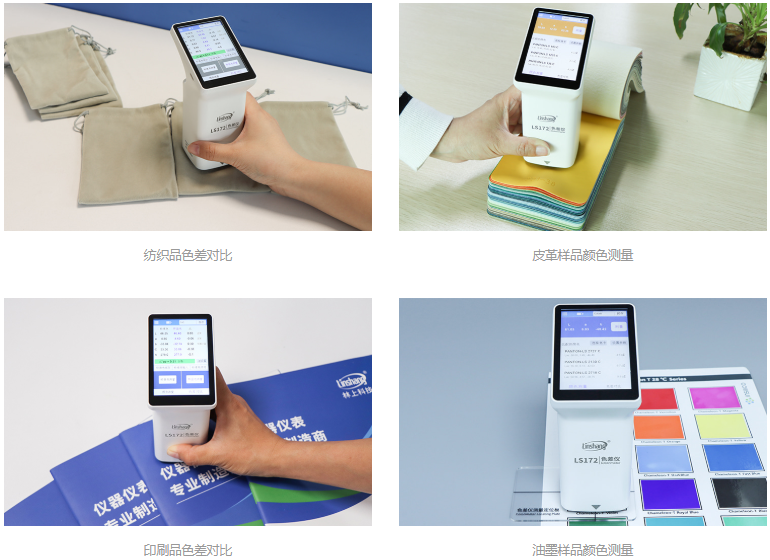

The LS172 is designed with a 45°/0° optical geometry for a wide range of applications. It is usually used in paint, test strip printing, decorations, leather and cotton, textile printing, plastics and other industries in product color measurement and management, product color difference quality control and other links.

Features

1. The instrument adopts a 3.5-inch IPS color capacitive touch screen, which can be operated without buttons, and can be operated by touch screen, which has a good user operation experience.

2. The instrument is ready to use when it is turned on; Color measurement can be achieved by pressing the point measurement button or pressing the power button, and the color value can be quickly detected in 1 second.

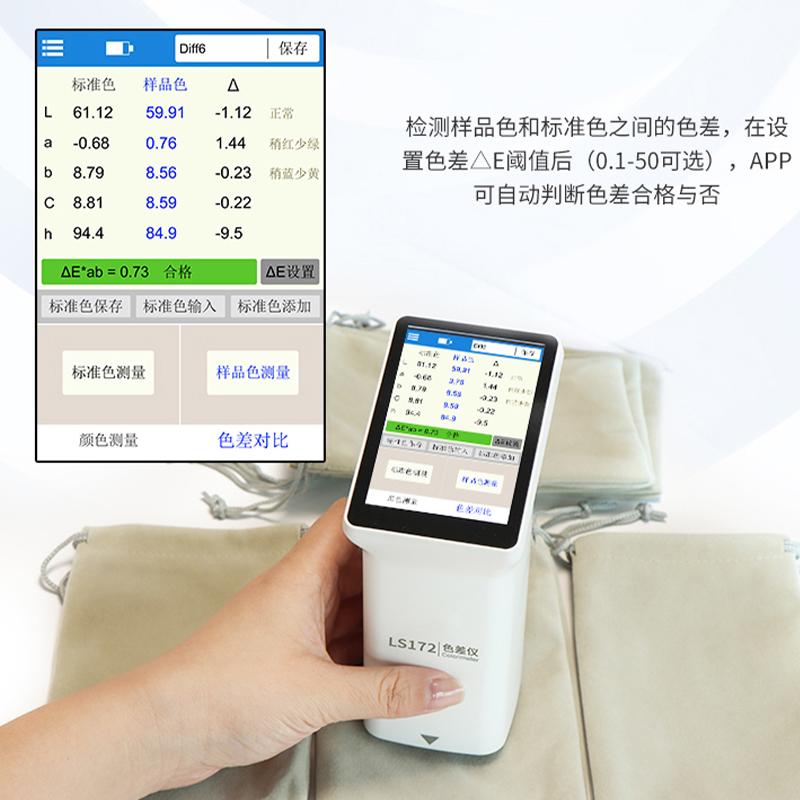

Two clicks can complete the color difference comparison, turn on the QC detection function, batch detection, and the color difference threshold can be customized, so as to quickly achieve quality control. It also provides color bias indication for the three color channels of Lab, making color matching easier and more convenient.

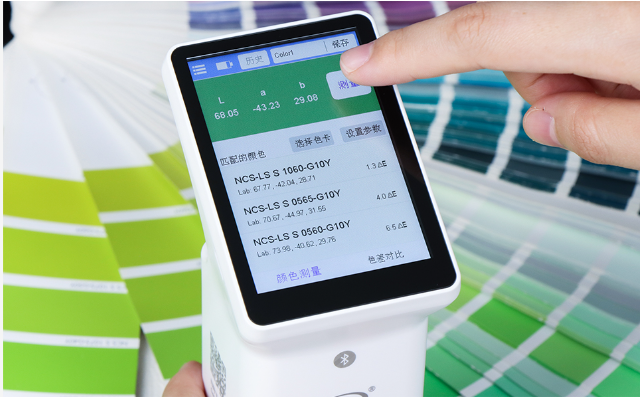

3. The instrument has a number of built-in electronic Color Charts, and the color measurement quickly matches the three Color Chart numbers that are relatively close, with an accuracy rate of more than 90%.

4. The instrument has a variety of color spaces such as Lab\RGB\CMYK and a variety of color difference formulas to choose from, matching the color measurement needs of various industries.

5. Built-in large storage space, which can store 1000 colors and 1000 color contrast records respectively.

6. The instrument has a built-in compensation optical path, the value is stable, and it allows long-term calibration.

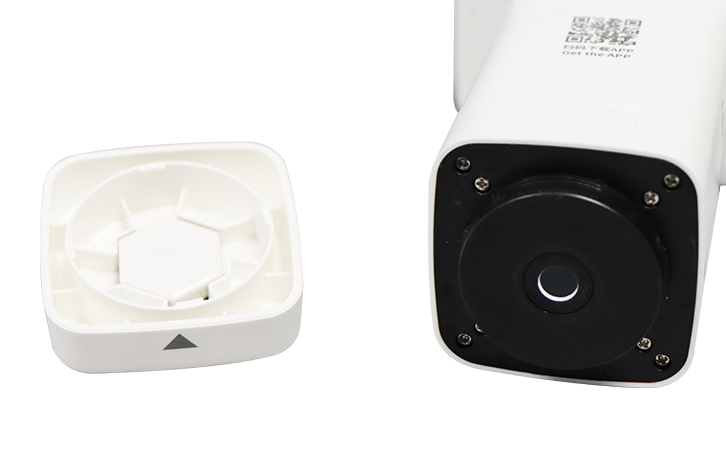

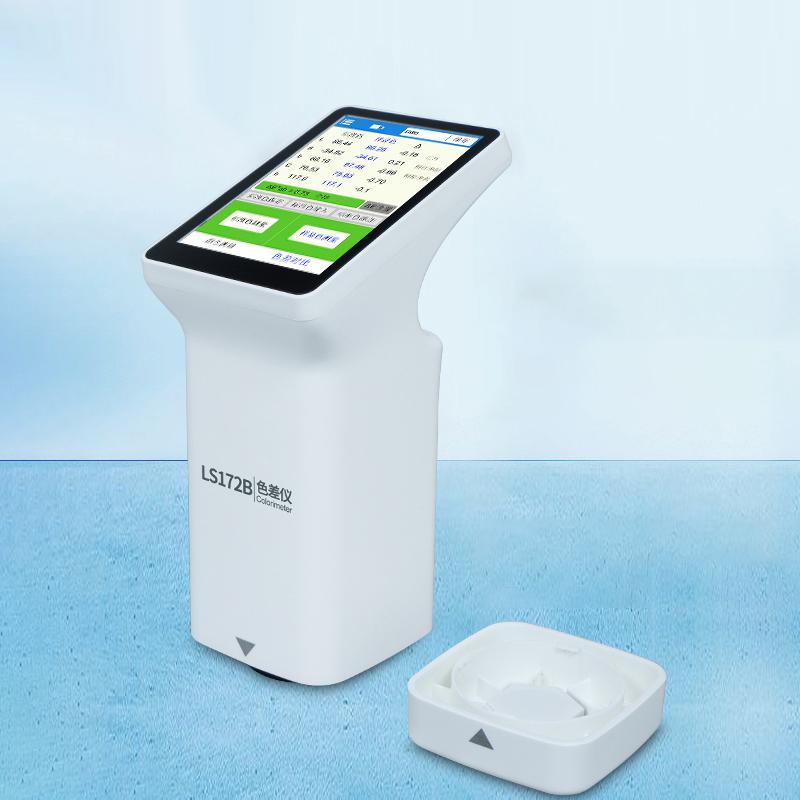

7. The bottom cover integrates a calibration whiteboard, monochrome calibration, and no cumbersome operation is required.

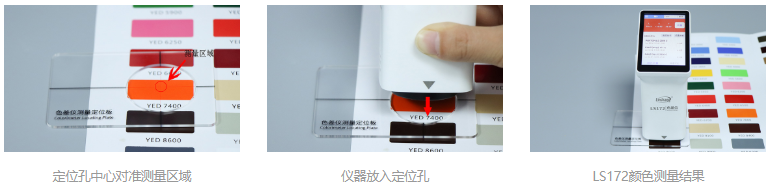

8. The instrument is equipped with a measurement positioning plate to meet the needs of accurate alignment and make the measurement more accurate.

9. Built-in lithium battery, full charge can be continuously tested 10,000 times. You can set the default auto-shutdown time. It is very energy-saving and environmentally friendly.

Meets standards

The LS172 touchscreen Colorimeter meets the following standards:

GBT 11186.1-1989 Methods for measuring the color of coating films Part 1: Principle

GBT 11186.2-1989 Methods for measuring the color of the coating film Part II: Color measurement

GBT 11186.3-1989 Methods for measuring the color of the coating film Part 3 Calculation of color difference

GBT 3978-2008 Standard Illuminator and Geometric Conditions

GBT 3979-2008 Methods for measuring object color

GBT 7921-2008 Uniform color space and color aberration formulas

JJG 595-2002 V. R. of Color Colorimeter

Precautions

1. Due to the color difference of the LCD screen, the color displayed on the instrument screen is for reference only.

2. Please make sure that the sample is uniform and the surface is flat and clean, otherwise the measurement accuracy will be affected.

3. When the instrument has not been used for a long time, it is recommended to use it after calibration.

4. The base should be stored in a clean place after being removed from the main unit to avoid staining the standard board.

5. Do not insert any object into the instrument to clean it, as this will damage the instrument and affect the measurement accuracy and operation safety.

6. When the battery of the instrument is empty, it should be charged in time.

7. If the instrument is not used for more than half a year, it needs to be charged regularly to prevent the battery from being damaged by over-discharge.

8. It is recommended that the verification period is one year.

Packing list：Host X1, color difference meter X1, cleaning cloth X1, measurement positioning plate X1, manual X1, certificate X1, quality assurance card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
