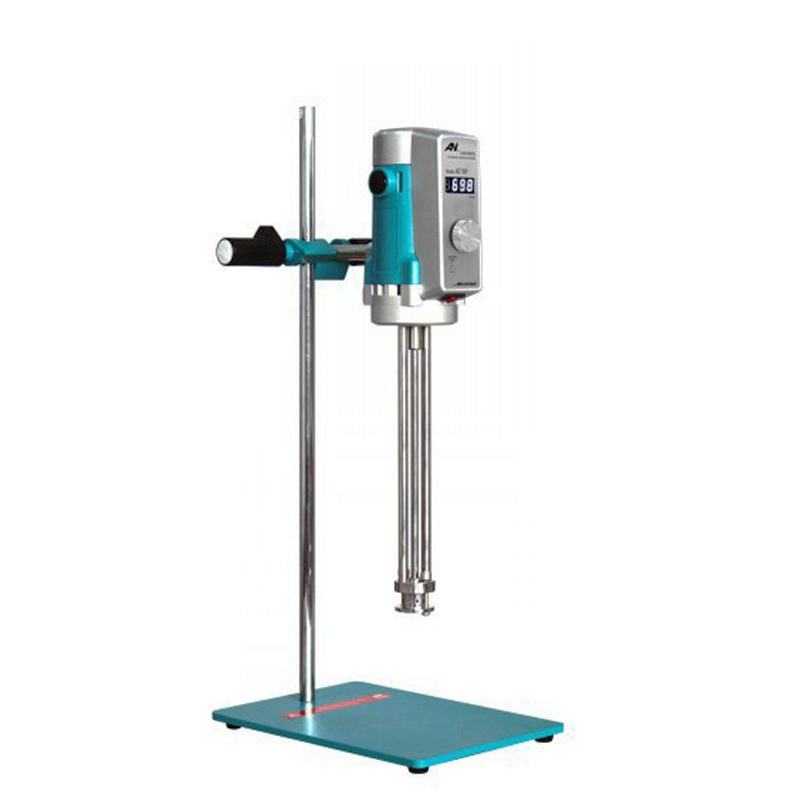

ANGNI AE30 High shear dispersion Mulser digital emulsification instrument

High-speed swirl/spin rotor, suitable for insoluble solid, liquid, gas three-phase pre-processing, with centrifugal homogenization, excellent treatment effect, easy installation and cleaning, stepless speed regulation, dynamic detection, Rotation speed memory, overload protection.

$1134.00/set

PromotionLoading...

Coupon

Model：

AE30

Certificate

Manufacturer authorization

Contact

Details SPEC Con

AN AE30 High Shear Dispersion MulserSPEC

AN AE30 High Shear Dispersion MulserDetails

AN AE30 High Shear Dispersion MulserPacking list

SKU: NB048638

Rated Voltage: AC220+10% V

Rated Frequency: 50/60 Hz

Input Power: 1350 W

output power: 800 W

Rated torque: 51N.m

Duty Cycle: S1 (continuous)

Control mode: Combined control knob

Rotation speed adjustment range (no load): 2000～15000 rpm

Rotation speed control type: Promise

Timer Range: 1～1000 min

Rotation speed digital display: LED

Rotation speed dynamic detection: Yes

Rotation speed memory function: Yes

Overload protection function: Yes

Protection level: IP20

Work head material: Stainless steel 316

Working head diameter: Φ 50 mm

rotor diameter: Φ 29 mm

stator-rotor clearance: 0.5 mm

Maximum circumferential velocity: 22.8 m/s

immersion depth: 38～260 mm

Stator standard configuration: Round hole/square hole/long hole/large round hole

Process type: batch processing

Processing Capacity (H2O): 150～30000 ml

Max. Processing Viscosity: 12000 mPa.s

maximum temperature: 180 ℃

PH value: 2～13

Sterilizing method: Chemical wet treatment

Suspension particle size: 15～65μm

Emulsion particle size: 5～30μm

Environmental temperature: Not more than 40 ° C

Allowable Relative Humidity: Not more than 80%

Dimensions of the whole machine: 215×310×720 mm

Machine Weight: 9.0kg

AE30

High Shear Dispersion Mulser

High shear emulsifiers are designed to efficiently, quickly and evenly distribute one or more phases into another continuous phase, which is normally insoluble with each other. Due to the high tangential speed generated by the high-speed rotation of the rotor and the strong kinetic energy brought by the high-frequency mechanical effect, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tearing and turbulence in the narrow gap between the stator and rotor, so that the immiscible solid phase, liquid phase and gas phase can be dispersed and emulsified evenly and finely in an instant under the joint action of the corresponding mature process and appropriate amount of additives, and finally obtain stable high-quality products after high-frequency reciprocation.

Main application features:

Centrifugal homogenization, suitable for the pre-processing stage of the material.
It can be processed in batches, with high work efficiency, and is suitable for industrial production.
The processed material has the characteristics of dispersion and good uniformity.
It is simple to install and dismantle and easy to clean.
The treatment effect is good, and the material can be processed.
Efficient, time-saving, and highly productive.

FAQ

QI want to make cosmetic emulsion, need to quickly disperse emulsification, which instrument is recommended?

A Recommended ANGNI AE30 high shear dispersion Mulser. Rotation speed up to 15000rpm, can instantly oil phase and water phase uniform emulsification, Processing capacity 150ml-30L just suitable for small and medium batch production, stainless steel head is also easy to clean, in line with cosmetic hygiene requirements.

QI need to be insoluble solid phase, liquid phase, gas phase materials fine dispersion emulsification, recommend a suitable instrument.

A The AE30 high shear dispersion Mulser adopts high shear emulsification technology, which generates strong kinetic energy through the high-speed swirl/spin of the rotor, and can perform multiple effects such as mechanical shearing and centrifugal extrusion on the material in the narrow gap of the stator and rotor to achieve instant uniform and fine dispersion emulsification. It is especially suitable for handling immiscible material systems to ensure stable and high-quality products.

QI need an instrument that is suitable for industrial production, can handle materials in batches, and is efficient

A The instrument can process materials in batches, Processing capacity range of 150~ 30000 ml, high efficiency, suitable for industrial production; its centrifugal homogenization characteristics are suitable for pre-processing of materials, efficient and time-saving, can improve production efficiency, and easy to install and disassemble, easy to clean.

QI need instruments with stepless speed regulation, timing control, and overload protection. What instruments meet these requirements?

A The AE30 high shear dispersion Mulser has a stepless Rotation speed adjustment function (range 2000~ 15000 rpm), which can be accurately adjusted by the combined control knob; equipped with a timing control range of 1~ 1000 min, supports Rotation speed digital display and memory function, and built-in overload protection to ensure safe and reliable operation and meet a variety of process requirements.

QNeed to handle high viscosity slurry, what function of Mulser should I choose?

A It is recommended to choose ANGNI AE30. torque up to 51N.m, can handle materials with a viscosity of 12000mPa.s, stepless speed regulation can start slowly from 2000rpm to avoid splashing, S1 continuous working system is suitable for long-term operation, round hole/square hole and other stators are optional, which can effectively crush agglomerated particles in high viscosity materials.
