Specifications
| Scraper coating Accuracy | ±10% |
| Coating thickness range | 0~10Mm scraper can be lifted |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Appearance structure | desktop |
| Bar film thickness | Spreader thickness according to bar type |
| Host Power Supply | 220V 50Hz |
| speed control | Infinitely variable speed |
| Coating table material | Glass plate |
| Mayer Rod Accuracy | ±10% |
| customizable function | Automatic feeding, air injection system device, UV solid inclusion device |
| Speed regulation Accuracy | 1mm/s |
| Dimension | Subject to the actual product |
| Coating method | Bar + drawdown blade |
Packing list

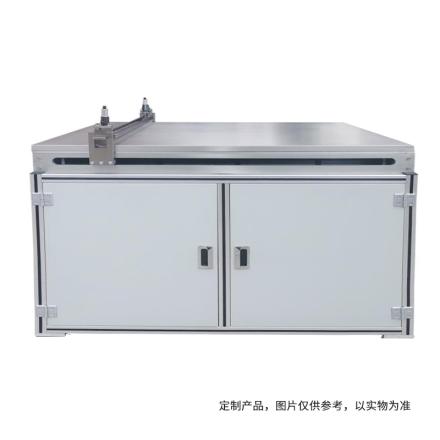

Film coating machine X1, scraper X1, imported wire rod X1, product manual X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/48820/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
