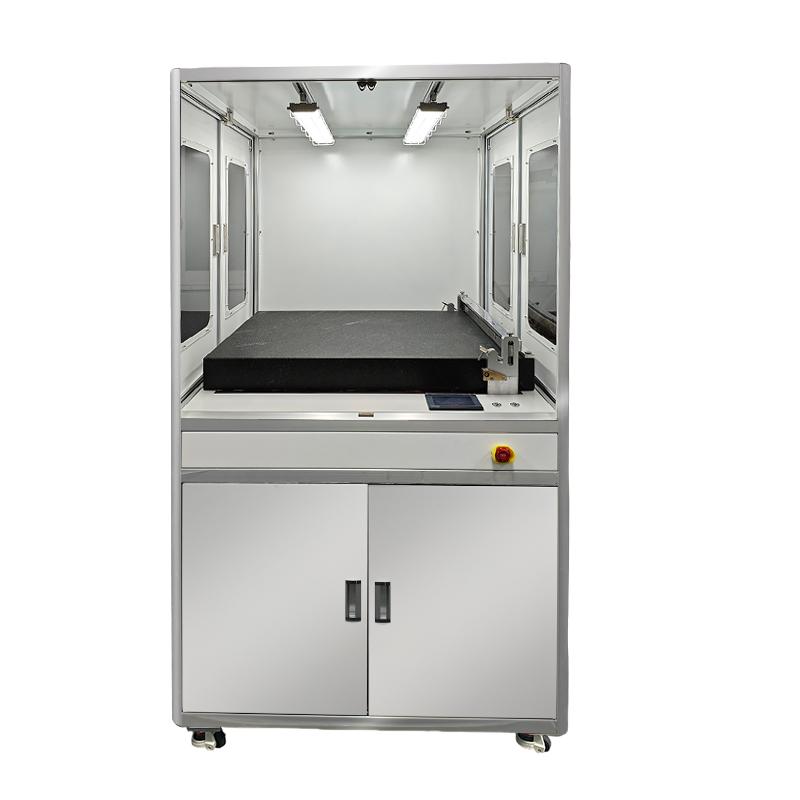

HuiNuo TM3000/05 Bar & drawdown blade Cabinet Film Applicator Coating size 600 * 800mm
SE
TM3000/05
HuiNuo TM3000/05 Automatic Film ApplicatorSPEC
HuiNuo TM3000/05 Automatic Film ApplicatorDetails
HuiNuo TM3000/05 Automatic Film ApplicatorPacking list
- SKU
- NB048825
- Coating Method
- Bar + drawdown blade
- Speed regulation Accuracy
- 1mm/s
- Coating Speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- speed control
- Infinitely variable speed
- Coating table material
- Marble Countertop (different materials can be customized)
- Effective coating Area
- 800*600mm
- Meyer rod coating Accuracy
- ±2%
- Bar film Film thickness
- Spreader Film thickness according to bar type, WFT 0~300μm optional;
- Bar material
- 304 stainless steel
- Drawdown blade Spreader Accuracy
- ±3%
- Drawdown blade reading mode
- digital reading
- Drawdown blade resolution
- 0.001mm
- Spreader Film thickness range
- 0~10Mm drawdown blade can be lifted
- Drawdown blade material
- Die steel
- Appearance structure

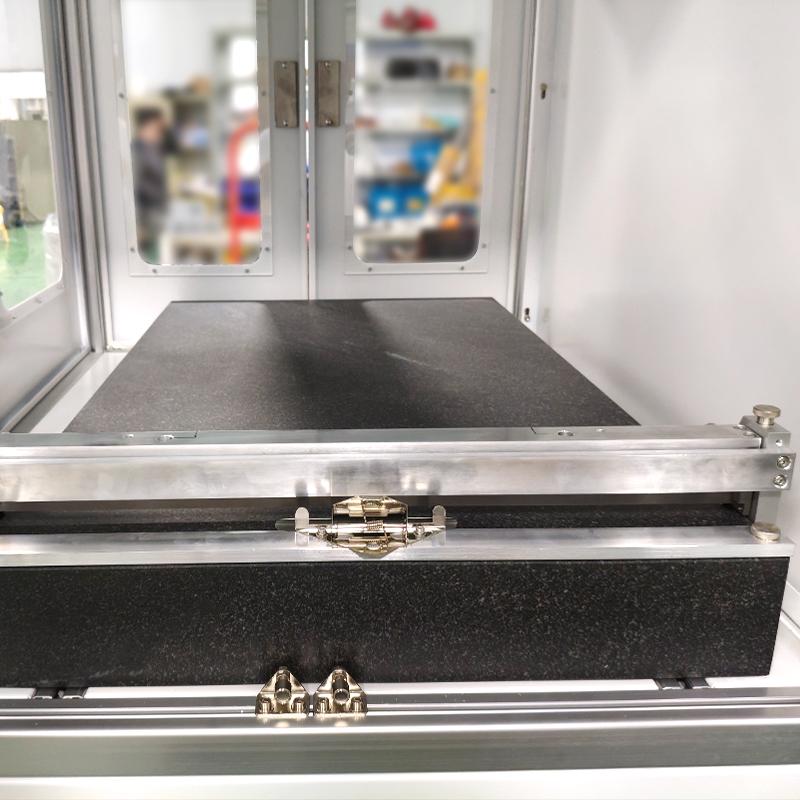

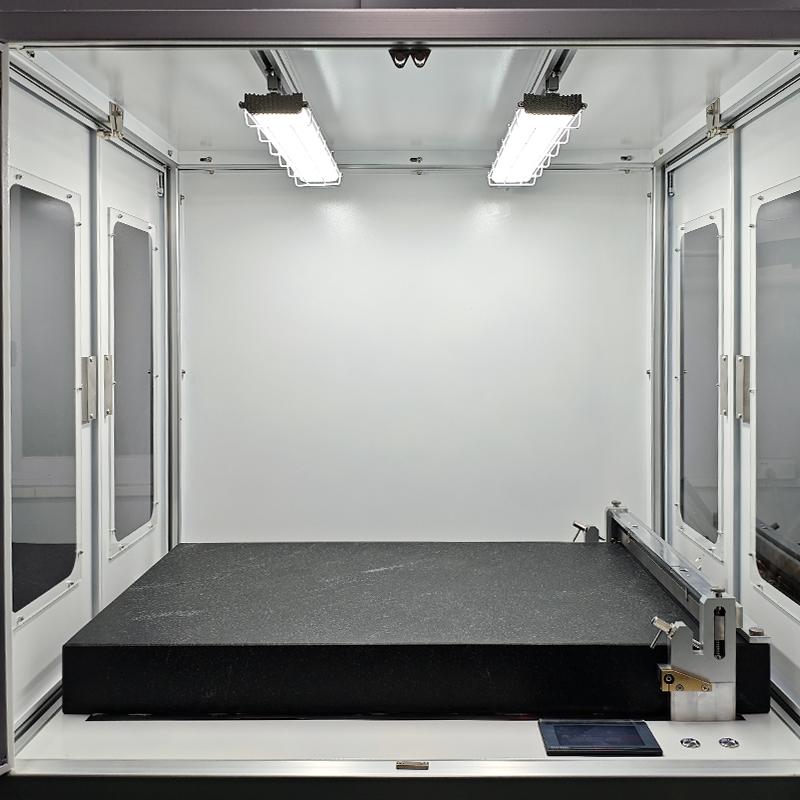

- Floor-to-ceiling Cabinet Automatic Film Applicator, Fully Enclosed, Three Doors
- Appearance acceptance
- White color RAL9003
- Shell material
- Aluminum profile frame + aluminum plastic plate
- control mode
- LCD touch panel
- Host Power Supply
- 220V 50Hz
- Total power consumption
- 400w
- Dimensions
- 1060 * 740 * 940mm, subject to actual customization
- Weight
- 200Kg, subject to actual customization.
- customizable function
- Automatic feeding, air injection system device, UV solid inclusion device
Overview

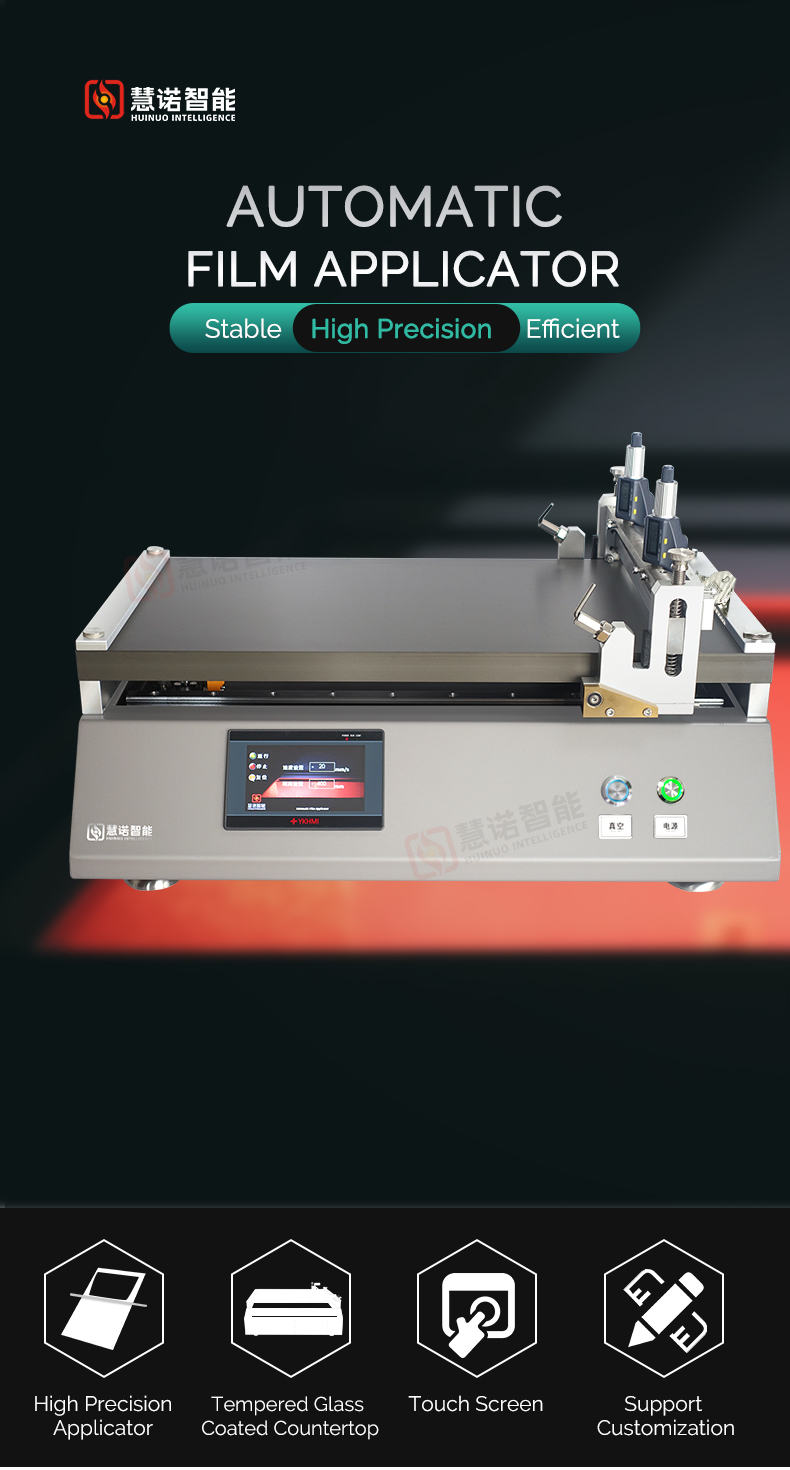

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
This coating machine is a wire rod doctor blade coating machine, with two functions of wire rod coating and doctor blade coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Application
The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

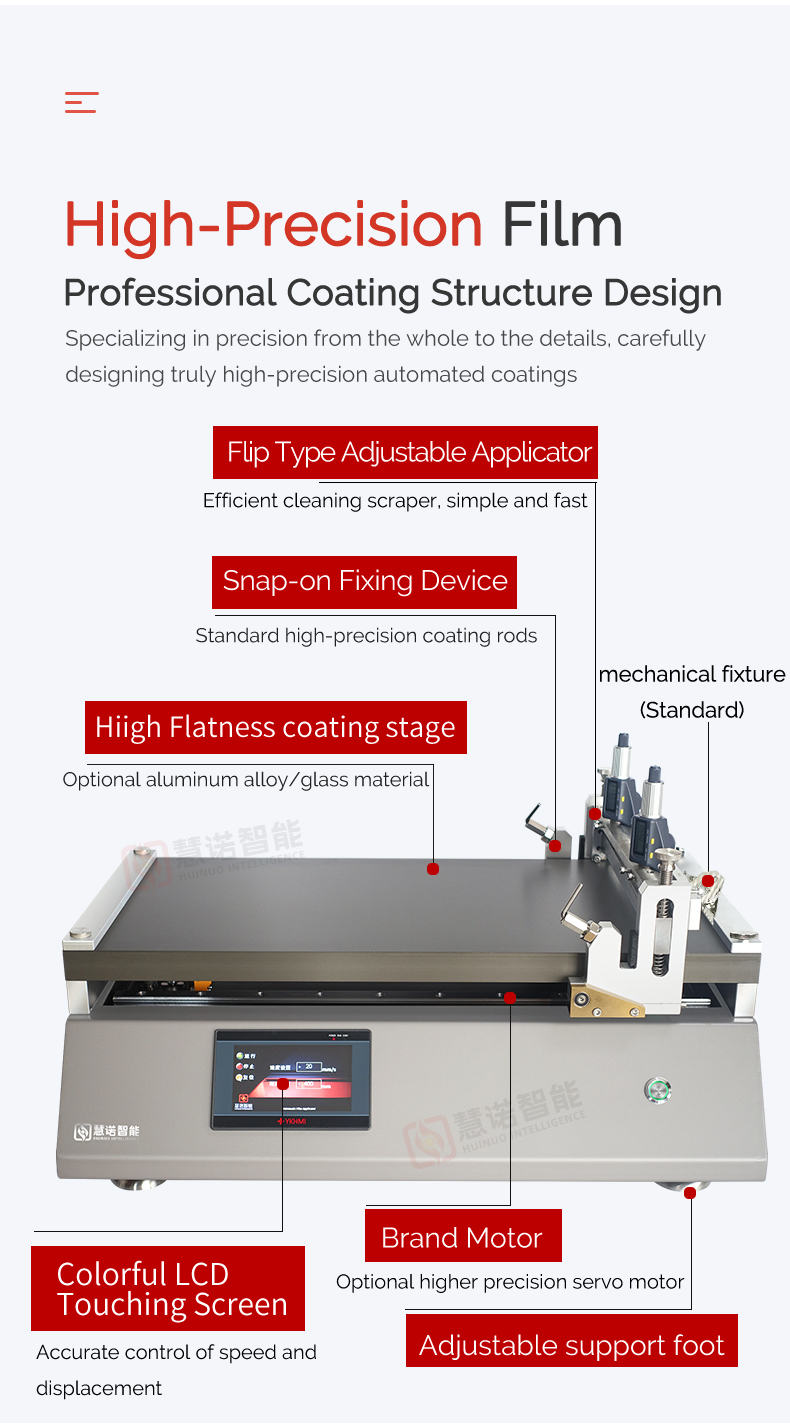

Features
1) The glass table top is a 3C certified national standard genuine fully tempered glass plate, gold crystal original sheet, heat resistant 600°C, scratch and scratch resistant
2) Big brand differential regulator, high film thickness control accuracy

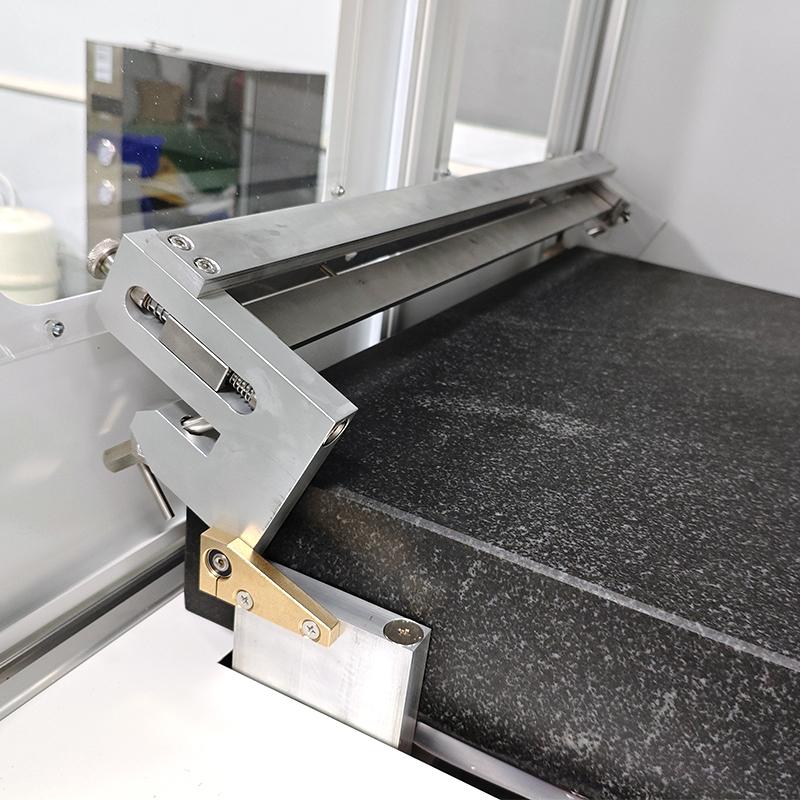

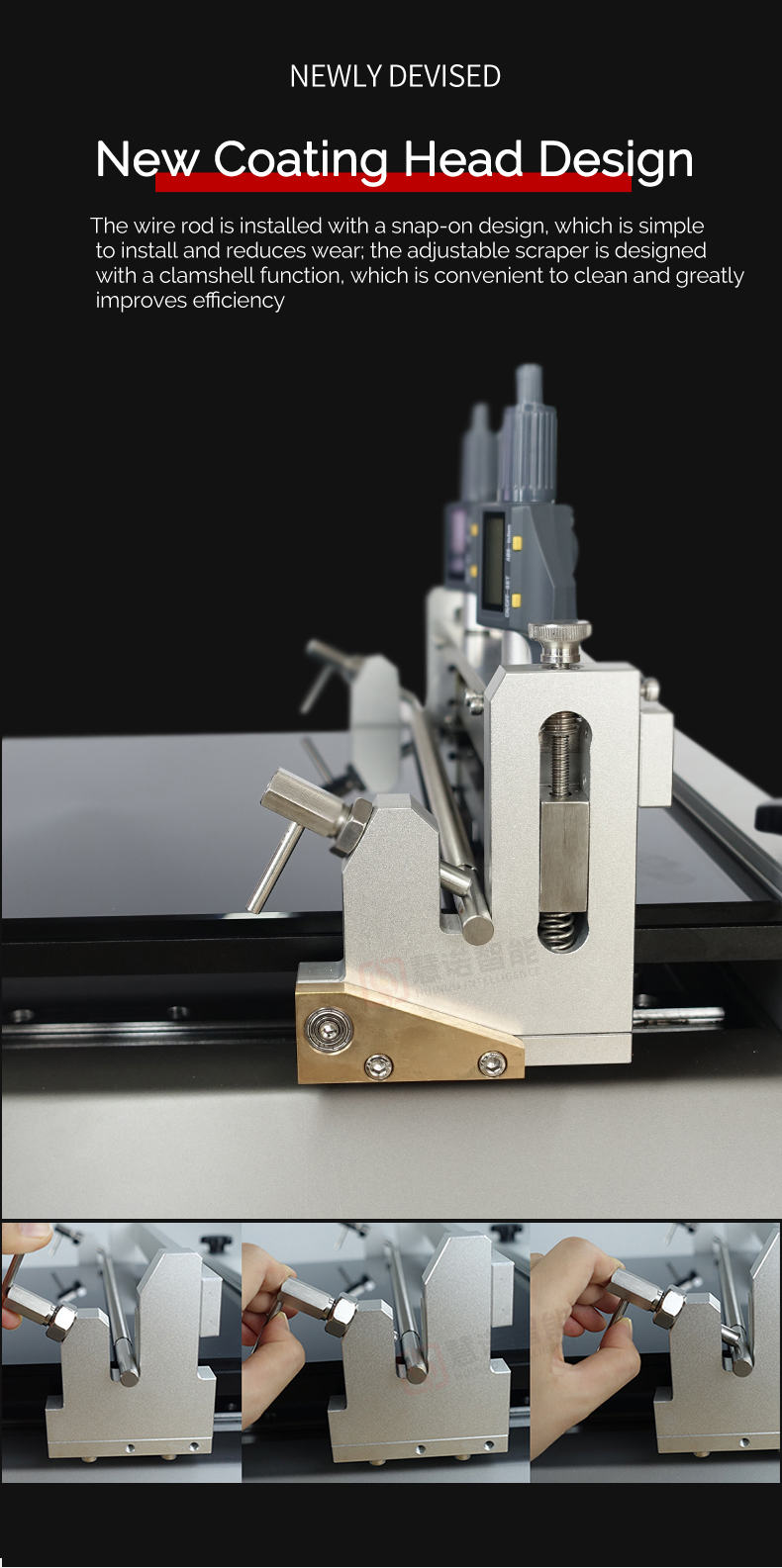

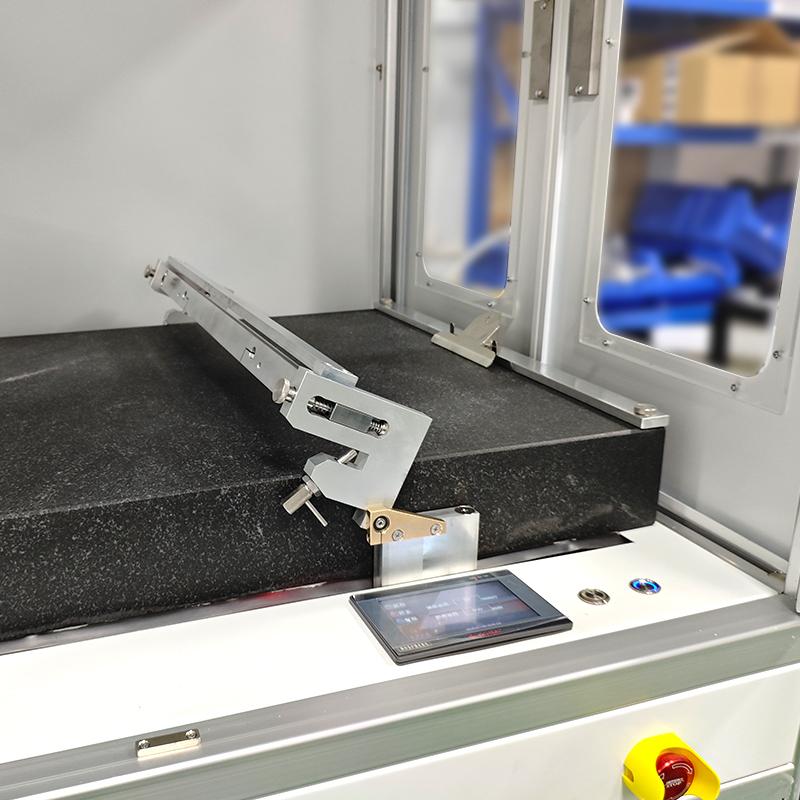

3) Clamshell doctor blade coating head, easy to clean
4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision

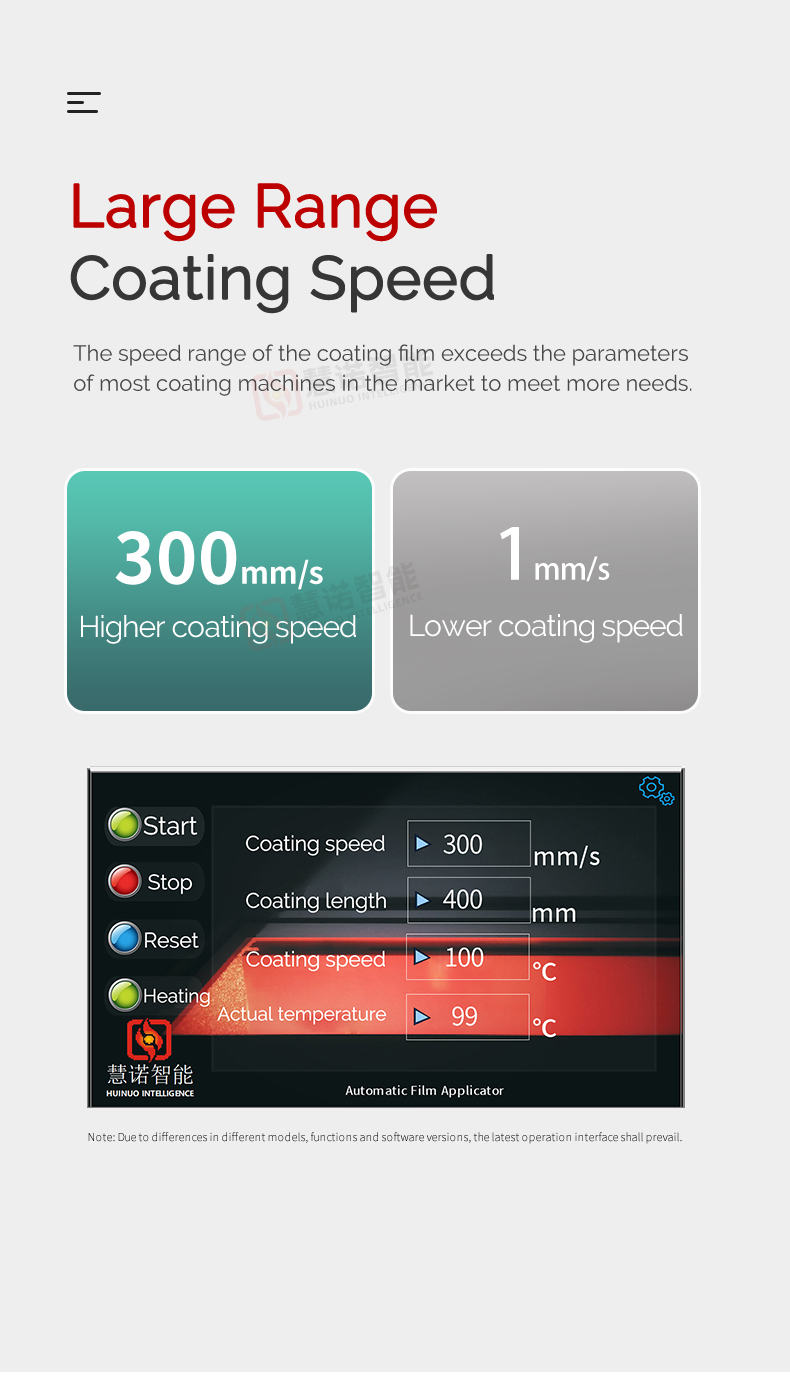

5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
